FLIR M400 User Manual

M400 Web Browser Interface
432-0012-00-10 Version 100 December 2015 38

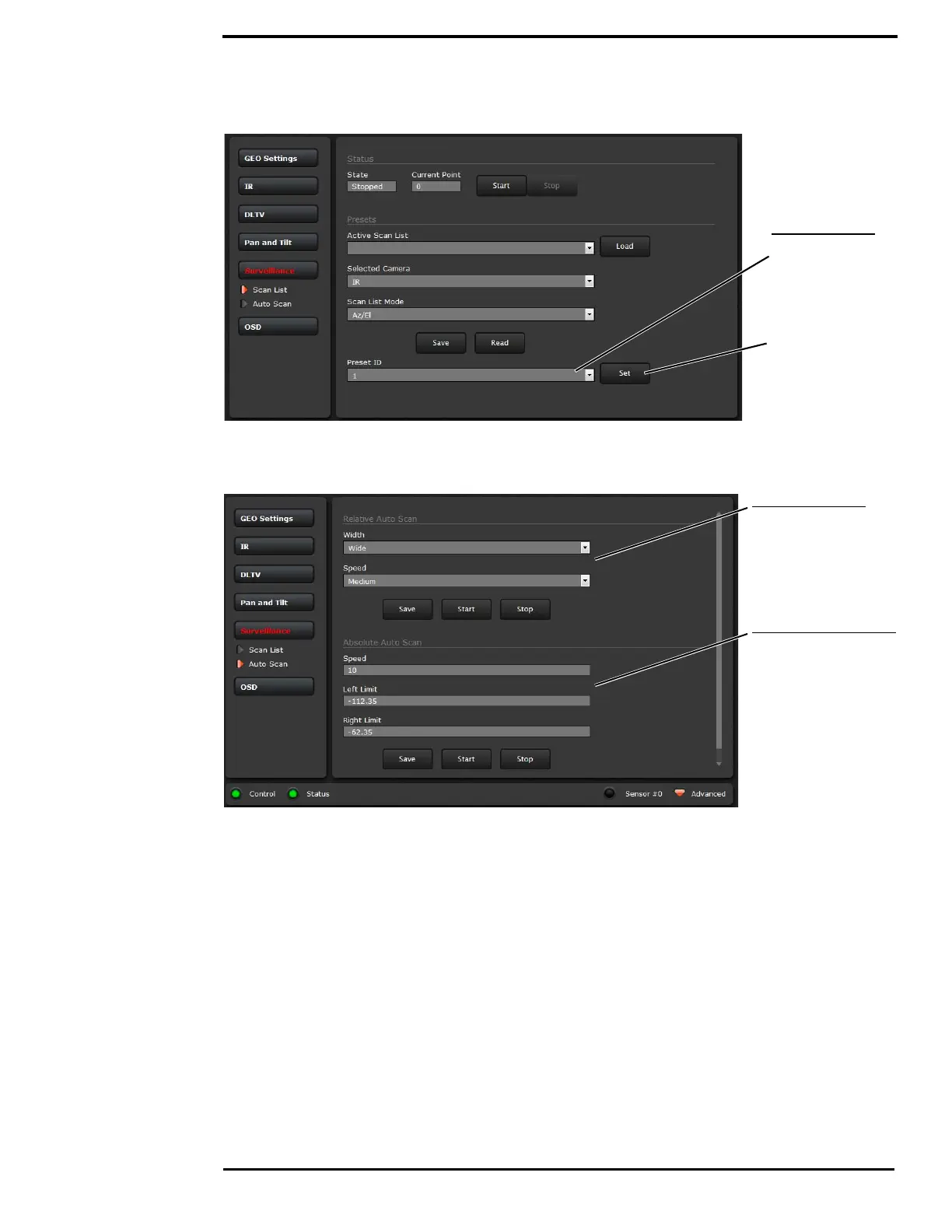

Setup->Surveillance->Scan List
Setup->Surveillance->Auto Scan
The Relative Auto Scan (Surveillance mode) can be started and the settings changed from the
OSD menu, JCU II (UPB), or the web page.
The Absolute Auto Scan can be started and the parameters set in the web page, but Absolute
Auto Scan can also be started as an option in the Startup mode when the camera boots. Refer to
“Startup Mode” on page 44.
Click Set,
select Preset ID
position camera,
To setup Presets:
then Save
then select Start
select width and speed,
To start Auto Scan:
select limits,
select speed,
Set Autoscan at Startup:
click Save

FLIR M400 Specifications

General

Thermal Resolution	640 x 480
Image Stabilization	Yes
Spectral Range	7.5 - 13.5 µm
Frame Rate	30 Hz
Power Supply	24 VDC
Digital Zoom	8x
Pan/Tilt	360° continuous pan, ±90° tilt
Video Output	HD-SDI
Environmental	IP66
Sensor Type	VOx Microbolometer
Thermal Sensitivity	<50 mK
Temperature Range	+55°C (–13°F to +131°F)
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
