Set-up Menu
432-0012-00-10 Version 100 December 2015 26

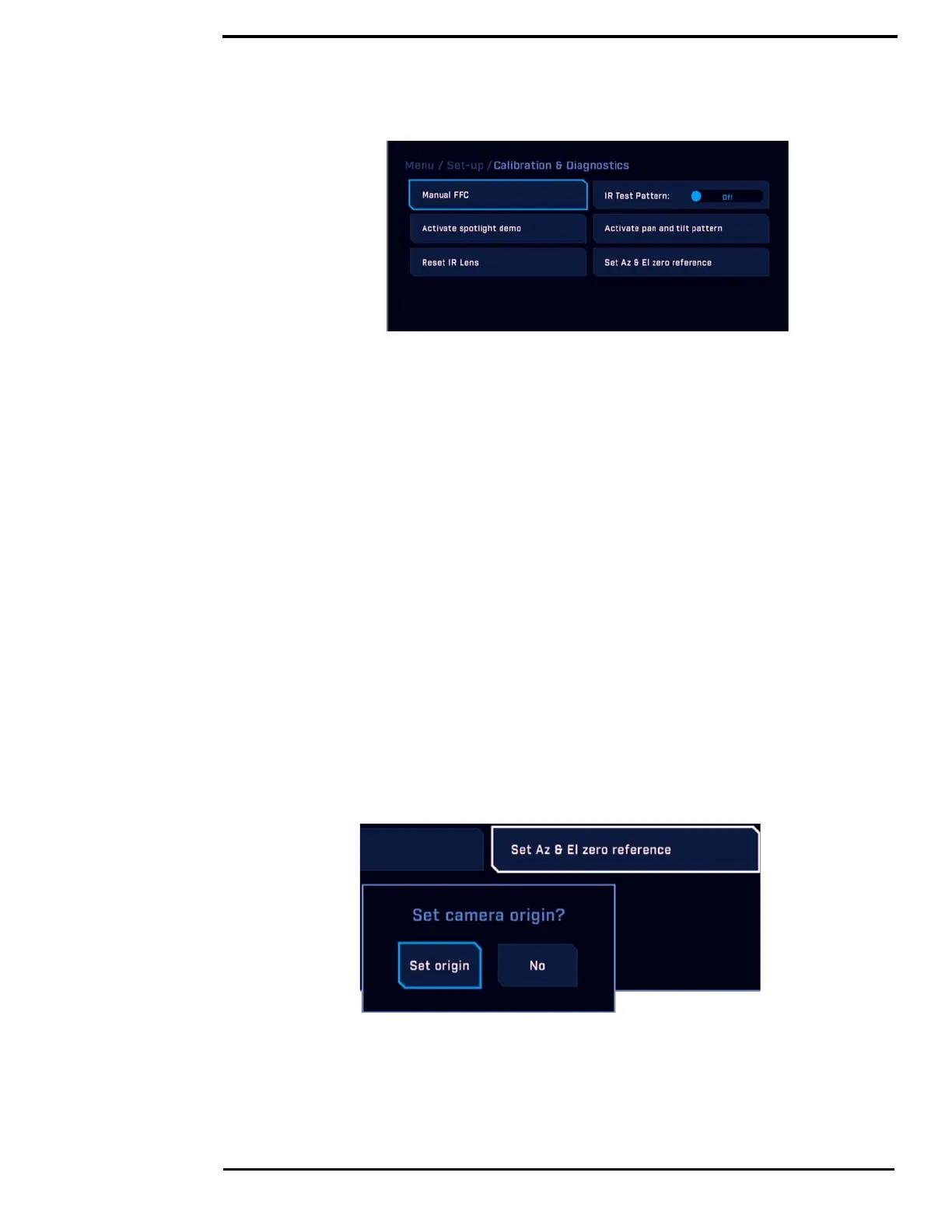

Calibration & diagnostics…
Manual FFC This function applies to the IR camera only. When selected, the camera drives the
camera to a preset position and performs the FFC calibration (< 5 s). The camera then returns to
its Home position.
IR Test Pattern: On/Off)
Activate Spotlight Demo:
Activate Pan and Tilt Pattern:
Reset IR Lens:
Set Az & El zero reference: Icons on the video show the direction the camera is facing in
relation to an outline of a ship. The M400 camera has a “forward” direction adjustment which has
been set at the factory. After the camera is installed, both the azimuth and elevation should be set
to account for variations required during installation so that the icons on the video show the
expected angular position of the camera. The azimuth direction should be directly toward the front
of the vessel; the elevation may be set to the horizon or another user preferred reference.
1. Using the JCU II, point the camera directly ahead and choose an elevation reference point.
For example, place the horizon in the center of the video.
2. Press the Menu button to turn the OSD menu on.
3. Navigate to Set-up Menu, Calibration & diagnostics…, then select Set Az & El zero
reference.
4. Select Set origin to set the azimuth and elevation offsets.
5. Verify that the icons on the video correspond to the direction the camera is pointing.
6. Check position settings for “Azimuth and Elevation Offsets” on page 44 and “Setting Park
Position” on page 45.
