Setting Park Position
The default park position is defined as 0° azimuth and -90° elevation. If a non-zero Elevation
Offset is set or a different park position is desired, adjust the Park position as follows:
1. Using the JCU II, drive the camera to the desired park position.

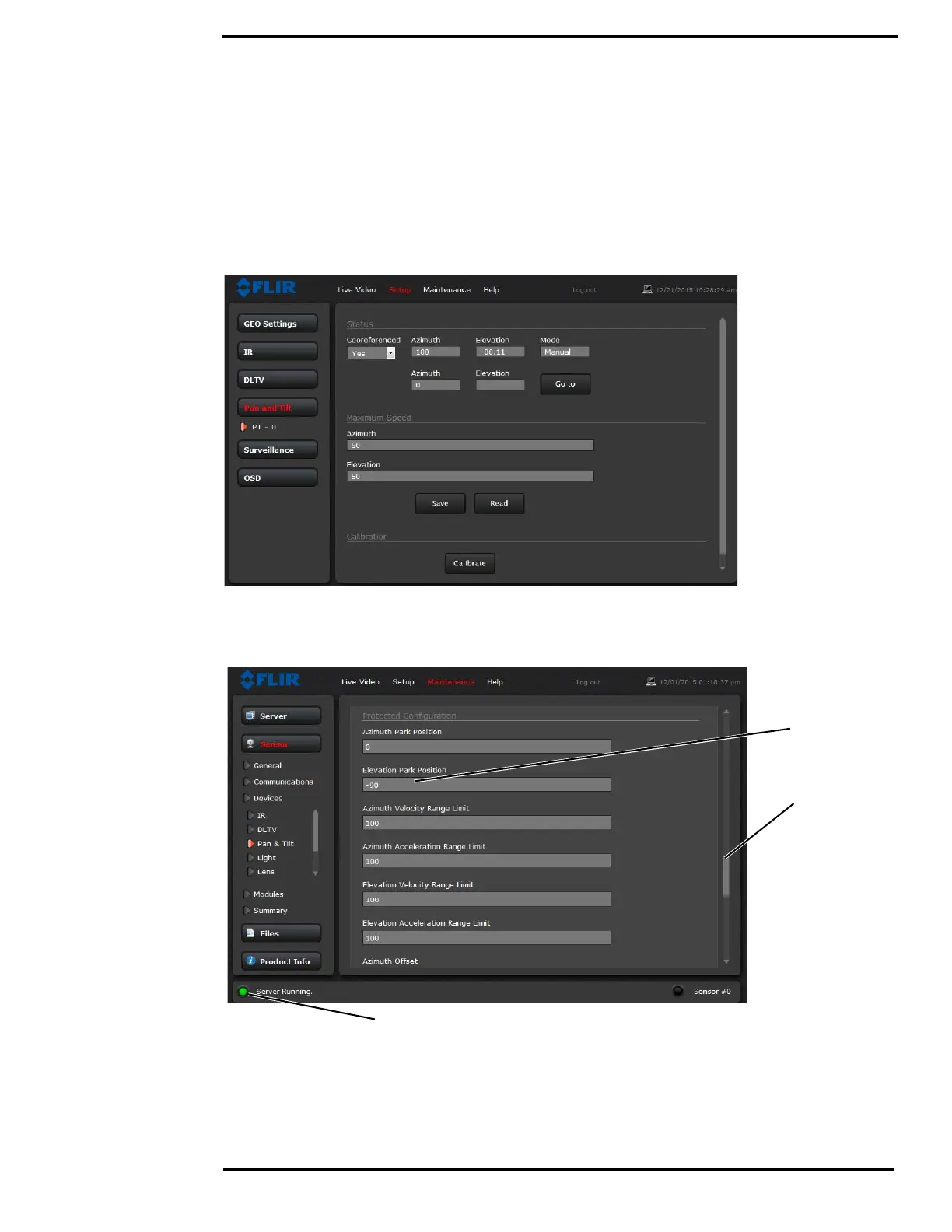

2. On the Setup->Pan and Tilt page read the reported Elevation angle. The reported elevation
angle will probably be a value close to -90.
3. On the Maintenance->Sensor->Devices->Pan & Tilt page, enter this value as the Elevation
Park Position, as shown below.
Elevation Park
Scroll down
to Save
Position
Stop and start the server
