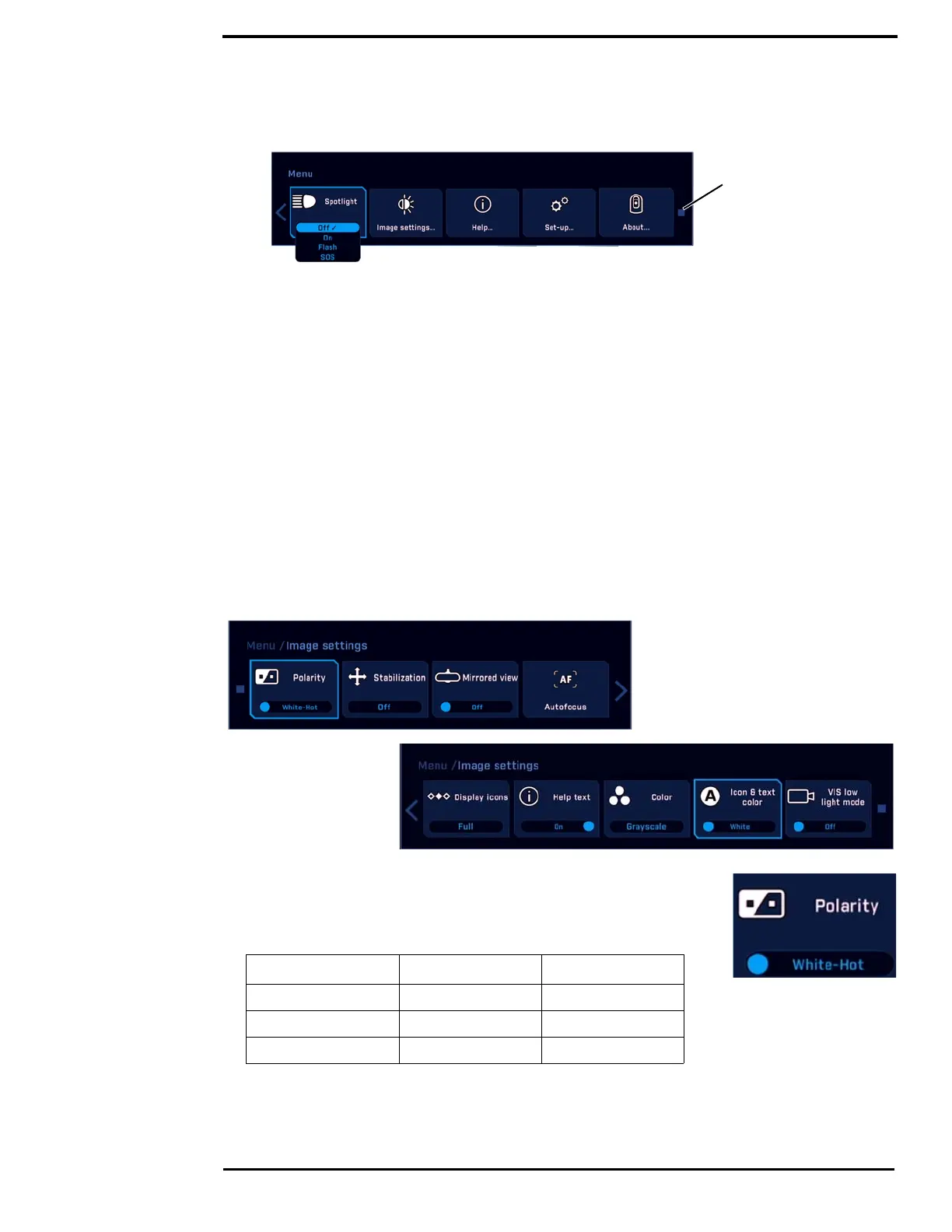

Image Settings Menu
432-0012-00-10 Version 100 December 2015 23
The following main menu buttons provide additional choices for system settings and information.
Spotlight: Select this option and then select one of the active spotlight modes (On, Flash,
SOS). The Spotlight turns on in the selected mode. If a user programmable button (UPB) is
programmed as Spotlight, use it to turn the spotlight On/Off in the selected mode.
Image settings... See “Image Settings Menu” on page 23.
Help… Refer to the help menus for camera operation information.
Set-up… See “Set-up Menu” on page 25.
About…
Image Settings Menu
When Image settings is selected from the main menu, the following OSD menu items are shown.
Polarity—IR camera only: Inverts the colors representing hot
and cold in the infrared imagery. When using the IR camera the color
palettes described below are available. Inverting the polarity reverses
the color map of the thermal image.
Color Palette Polarity Inverted
Grayscale White-hot Black-hot
Redscale Red-hot Red-cold
Fusion Light-hot Dark-hot
End of menu symbol
Menu will loop to
the other end
