Product description

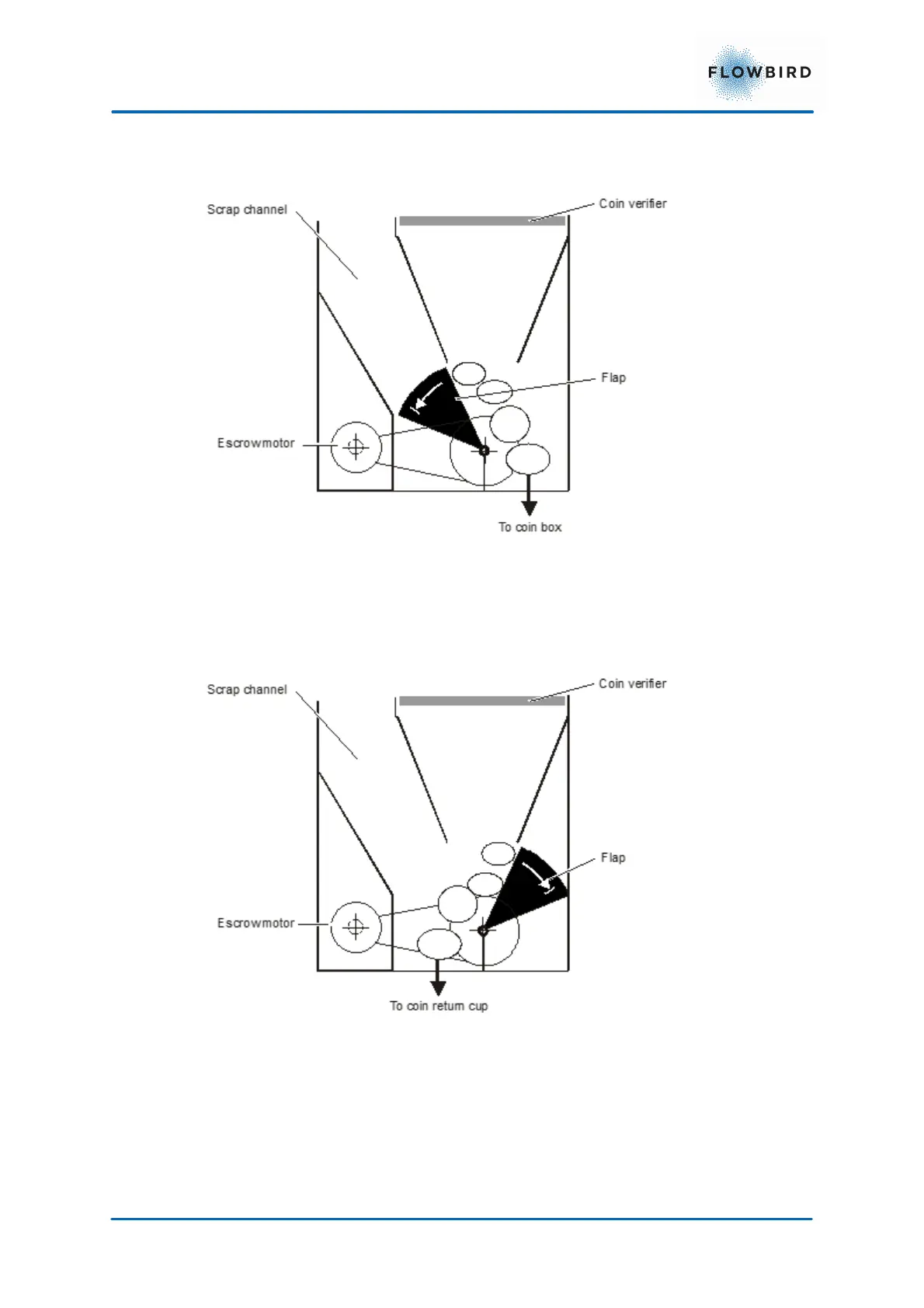

In the figure below the customer has accepted the purchase and the escrow motor
have turned the flap to the Accepted Purchase position. The coins fall into the
coin box.
Figure 11, Escrow in Accepted Purchase position.
In the next figure, the customer has cancelled the purchase and the escrow motor
has turned the flap to the Cancelled Purchase position. The coins fall into the coin
return cup.
Figure 12, Escrow in Cancelled Purchase position.
4.1.1.4
Coin handling board
A PCB assembly named Coin Handling Board is mounted on the left side of the
coin unit.
