Page 43CWT Compact S4 Touch Installation & Maintenance Manual for CWT 1.0-0Issue 3
Product description

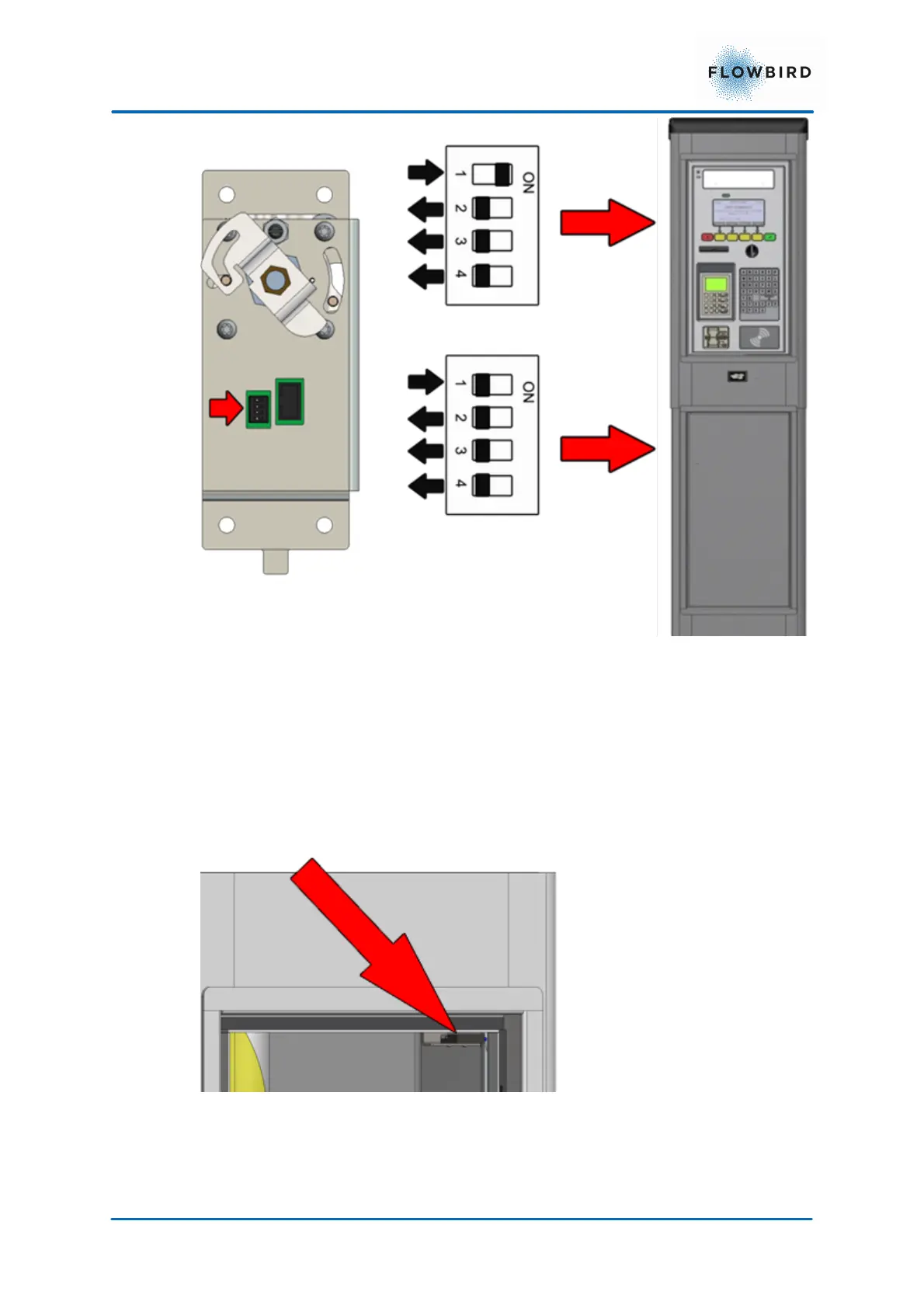

Figure 28, E-lock DIP switch settings
4.7.5.3
Door-open sensors
Both doors have a door-open sensor. All attempts to open the terminal are logged
in the CWT Compact and the information is transferred to WebOffice.
The door-open sensor consists of a permanent magnet mounted on the door and
a magnetic field sensitive sensor mounted inside the door frame.
Figure 29, Door-open sensor in the cabinet.
