Product description
The key can only be removed when in the locked position. It is impossible to close
the outer pedestal door until you have locked the vault door and removed the key.
When collecting the coins, you can pull out the coin box and let it rest on top of the
vault door before you start lifting the box.
When open, the lowered vault door can easily be lifted away from the vault for
repair or replacement. No tools are required for this.

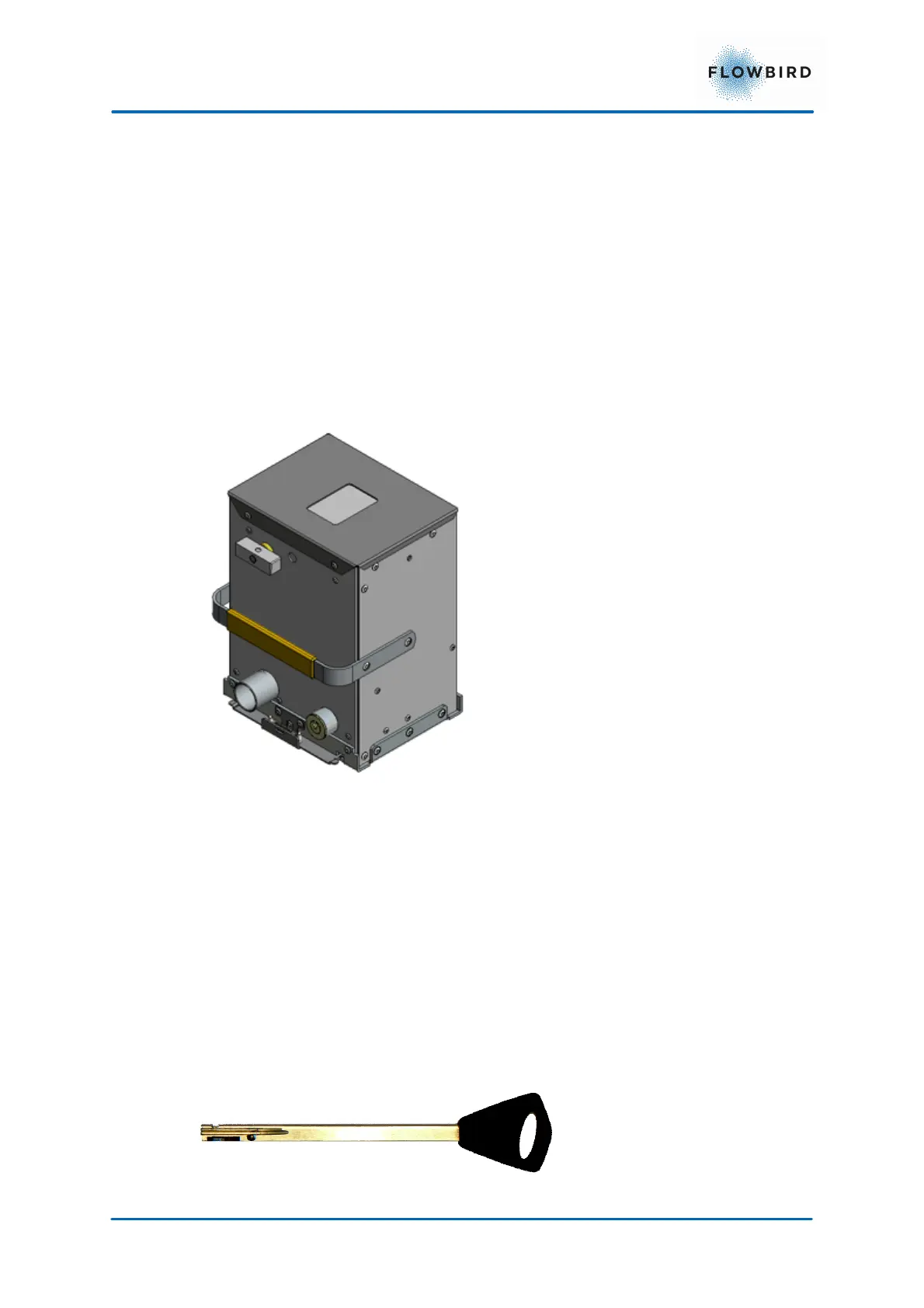

Coin Box
Seen from outside in, the coin box is protected by the pedestal and the coin box
vault.
4.7.5
Door locks
Each door is secured in closed position by means of four locking latches.
4.7.5.1 Mechanical locks
The standard lock in the CWT Compact is a mechanical Exec lock from Assa
Abloy. It is a mechanical lock that is opened with a key. The lock can be protected
against dirt and water by two flaps that slide apart when the key is inserted
(option).
Figure 25, standard mechanical door key.
