Product description
The cabinet can be detached from the pedestal and this is the way the CWT
Compact is usually delivered from the factory.
The cabinet can be removed from the pedestal at a later stage, for example for
maintenance or upgrading reasons, or if the terminal is to be taken out of
operation for a lengthy period.
The configuration of the CWT Compact is highly flexible and varies depending on
installed pay units etc.
4.7.2
Product label
Both the cabinet and the pedestal have a product label specifying the Type,
Colour, and Quality Inspection during production

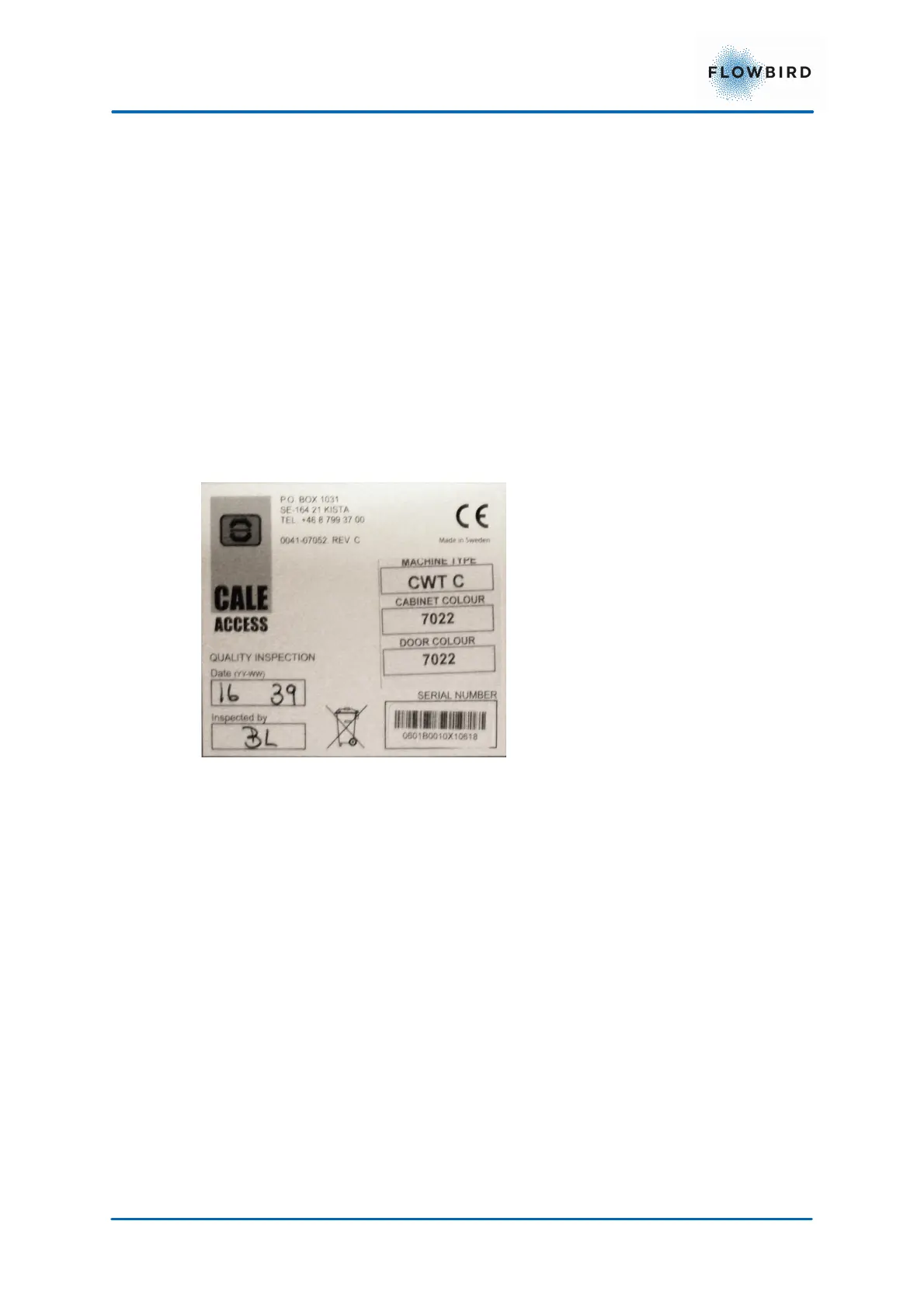

The figure below depicts the information shown on the product label attached
inside the cabinet.
Figure 19, Cabinet Product label.
4.7.3
Inside the cabinet
The items found inside the cabinet vary between the CWT Compact models and
between different versions of each model. The figures show a CWT Compact
model equipped for payment with coins, credit cards, and optional contact-less
cards.
