Page 54CWT Compact S4 Touch Installation & Maintenance Manual for CWT 1.0-0Issue 3
Installation

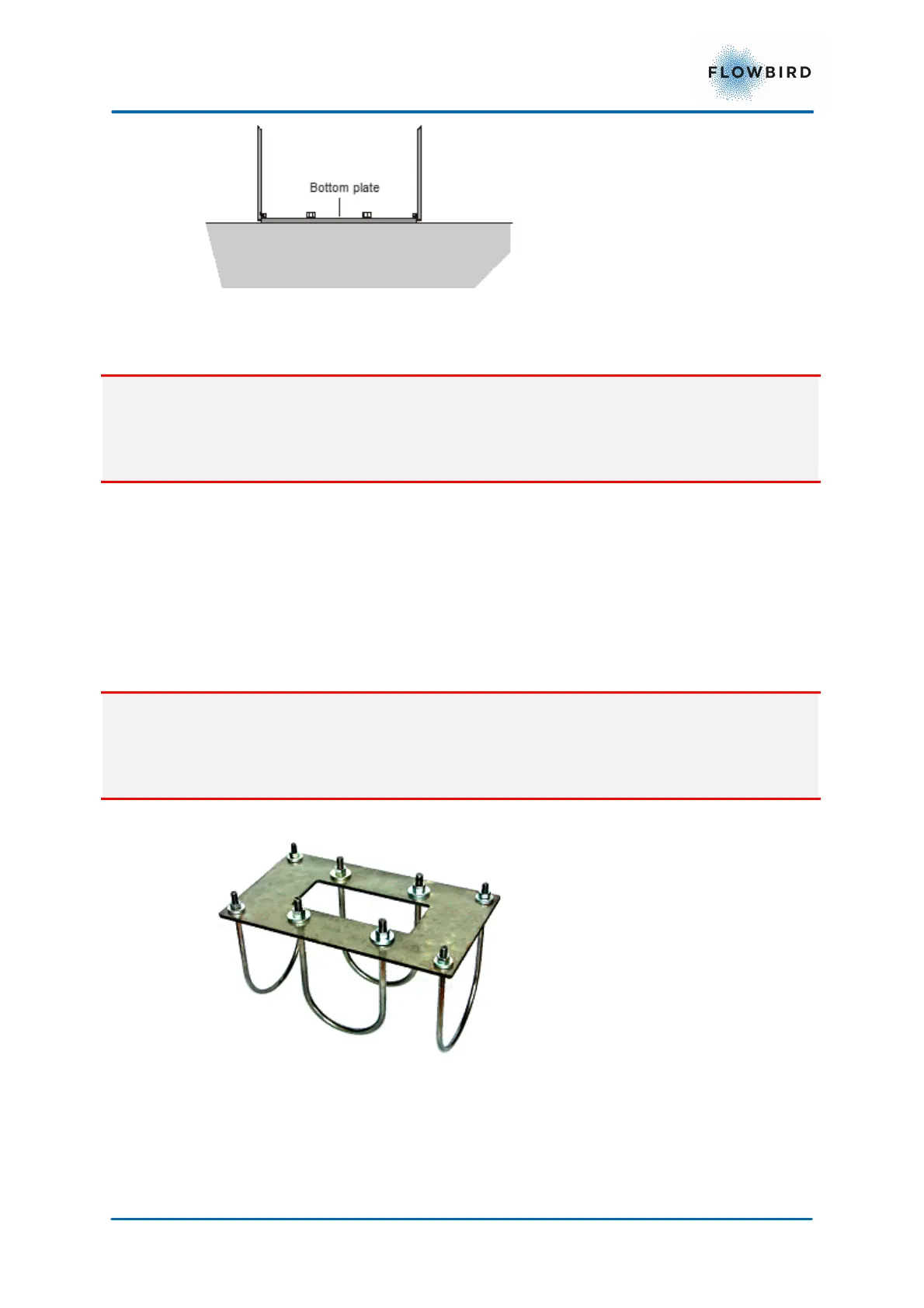

Figure 37, Terminal placed directly on the
foundation
Important:
Terminals for coin payment must be properly aligned vertically because the
function of the anti-pin module and the coin verifier may be interrupted if the
terminal leans more than a couple of degrees in any direction.
5.1.4
Pouring a new concrete foundation
If the installation site does not have an existing concrete base or the equivalent,
you can pour a concrete foundation, casting a base anchor (0403-B0122) into
position. The Flowbird base anchor is supplied as a flat package containing parts
to be assembled at the installation site.
Important:
Terminals for coin payment must be properly aligned vertically because the
function of the anti-pin module and the coin verifier may be interrupted if the
terminal leans more than a couple of degrees in any direction.
Figure 38, Base anchor 0403-B0122.
