Page 38CWT Compact S4 Touch Installation & Maintenance Manual for CWT 1.0-0Issue 3
Product description

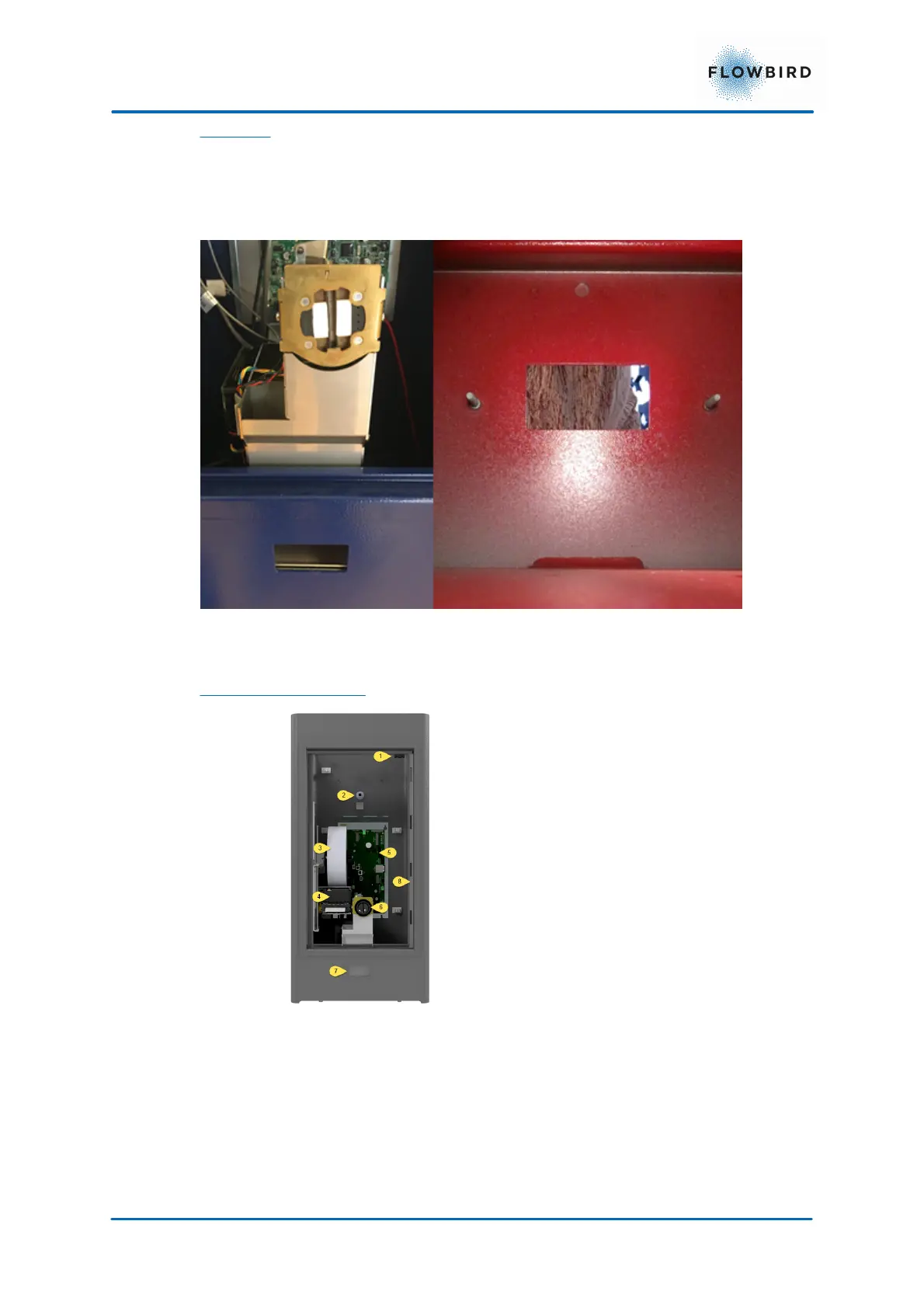

Coin unit
The Coin unit is mounted in the lower part of the cabinet and is fixed with 2 bolts
to the front.
The Coin Return Lid is removed for this image.
Figure 21, Coin unit with mounting bolts and Coin Return opening
Inside of the cabinet
1. Door Open Sensor
2. Antenna
3. Paper roll
4. Printer
5. Mother board
6. Coin inlet
7. Coin return cup
8. Door lock mecanism
4.7.4
Inside the pedestal
The contents of the pedestal may vary depending on local regulations, needs for
specific electrical components, etc.
