Limitorque

Master Station IV EEP-SN4001 FCD LMENIM5010-00-AQ – 03/19

Electrical Connections

4.1 MSIV Rear Panel Connections

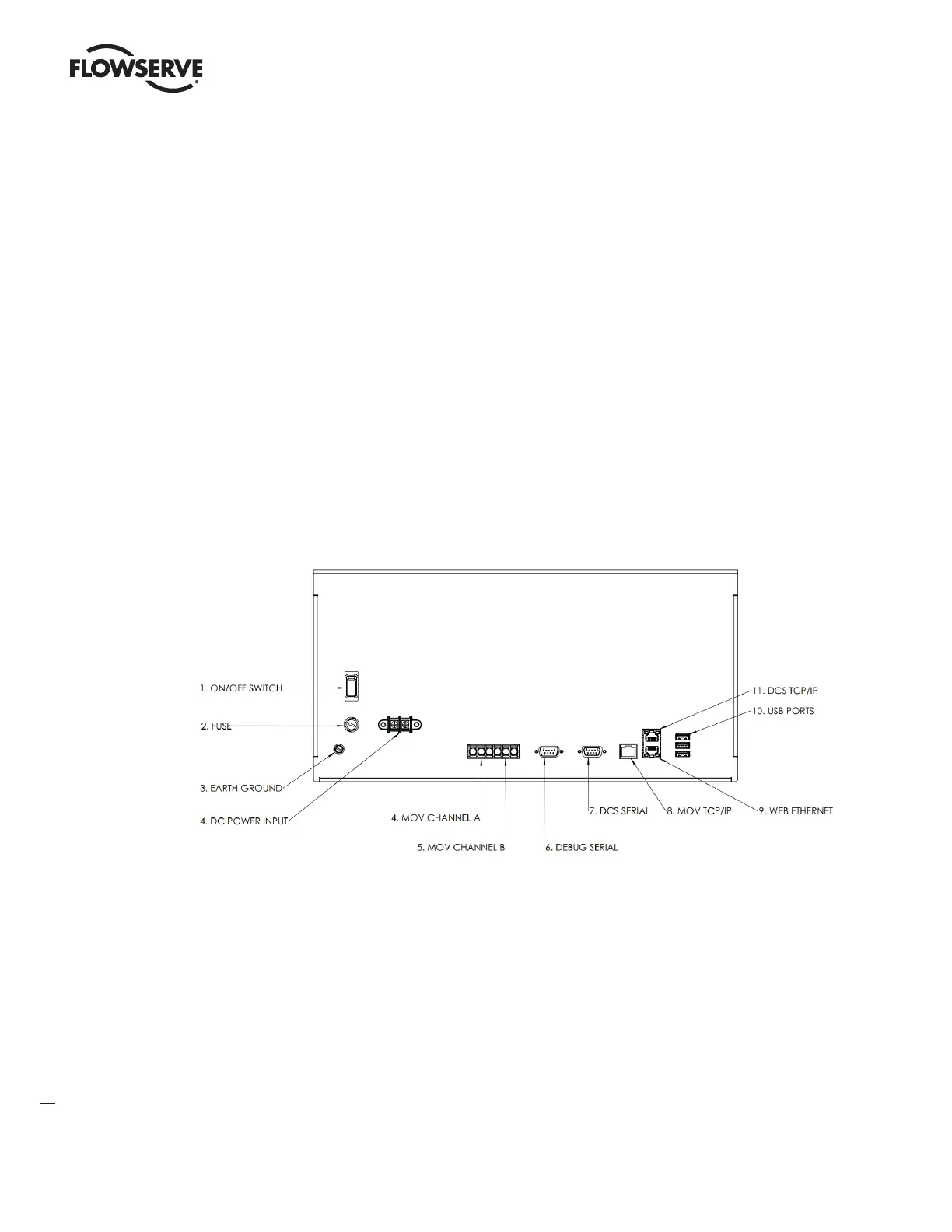

Figure 4.1 – MSIV Rear Panel Electrical Connections

The following list deﬁnes the connections shown in Figure 4.1 above.

1. ON/OFF SWITCH: Used to switch the MSIV DC power supply ON or OFF.

2. FUSE: Housing of the fuse used to protect the DC power input. Use a 5x20mm, 2.5 amp, 250V

fuse.

3. EARTH GROUND: Chassis ground using a #10-32 grounding screw. The Master Station MUST be attached

to a good quality electrostatic local earth ground. An effective, low-impedance (less than

5 ohms) connection is required.

4. MOV CHANNEL A: Connections for channel A of the MOV network using #6-32 terminal screws. See table

4.1 for connection details.
