Master Station IV EEP-SN4001 FCD LMENIM5010-00-AQ – 03/19
44
14 Compartment Temp Internal compartment temperature
1
15 Torque Torque Value (0-100% unit rating)
16 Current State Bits 0-15 Not Used
17 Field Unit Holding Register Special Applications Only
18 Field Unit Holding Register Special Applications Only
19 Field Unit Holding Register Special Applications Only
20 Field Unit Holding Register Special Applications Only
21 Field Unit Holding Register Special Applications Only
22 Field Unit Holding Register Special Applications Only
23 Field Unit Holding Register Special Applications Only
24-44 Reserved Special Applications Only
45-47 Not Named Special Applications Only
48 TP_START_POSITION Special Applications Only
49 TP_STOP_POSITION Special Applications Only
50 TP_SAMPLE Special Applications Only
51 TP_MID_T_HIGH Special Torque Applications Only
52 TP_MID_T_POS Special Applications Only
53 TP_MID_T_AV_VAL Special Torque Applications Only
54 TP_STOP_VAL Special Applications Only
55 TP_BEFORE_MID_T_HIGH Special Torque Applications Only
56 TP_AFTER_MID_T_HIGH Special Torque Applications Only
Note 1: Range is +90 degrees Celsius to -55 degrees Celsius. High byte 00 indicates positive (+) and 01 indicates
negative (-). Low byte indicates temperature value.
7.2.5.3.3 Modbus FC 05/15 Force Coils
Pressing the “Modbus FC 05/15 Force Coils” button will take the user to the Modbus Coils menu for selection of desired
field unit coils. Note that the Close and Open contactor coils are always included in the data table. Pressing the “Next”
button will advance the screen to the sample data table.

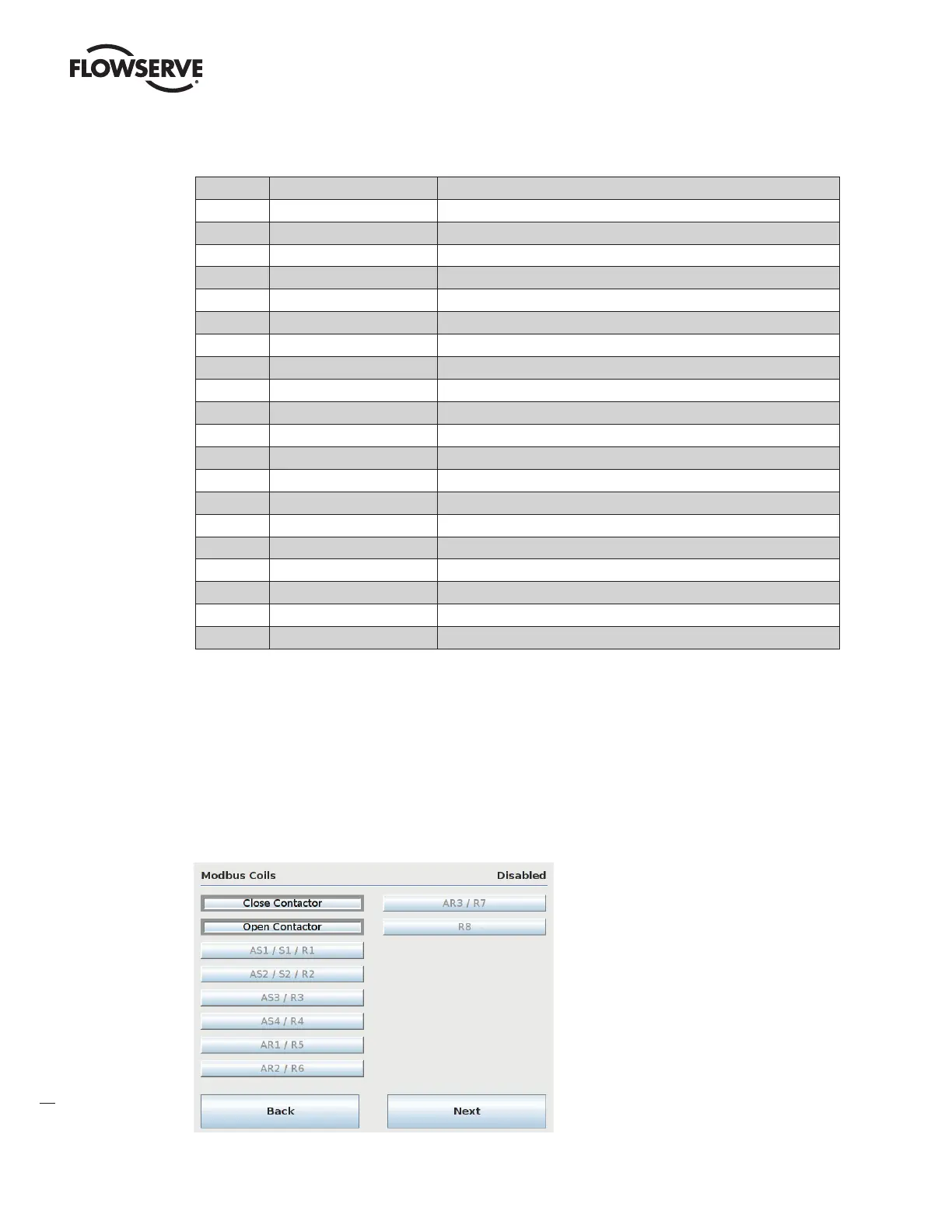

Figure 7.22- Modbus FC 05/15 Coils
