Limitorque

Master StationI V EEP-SN4001 FCD LMENIM5010-00-AQ – 03/19

ﬂowserve.com

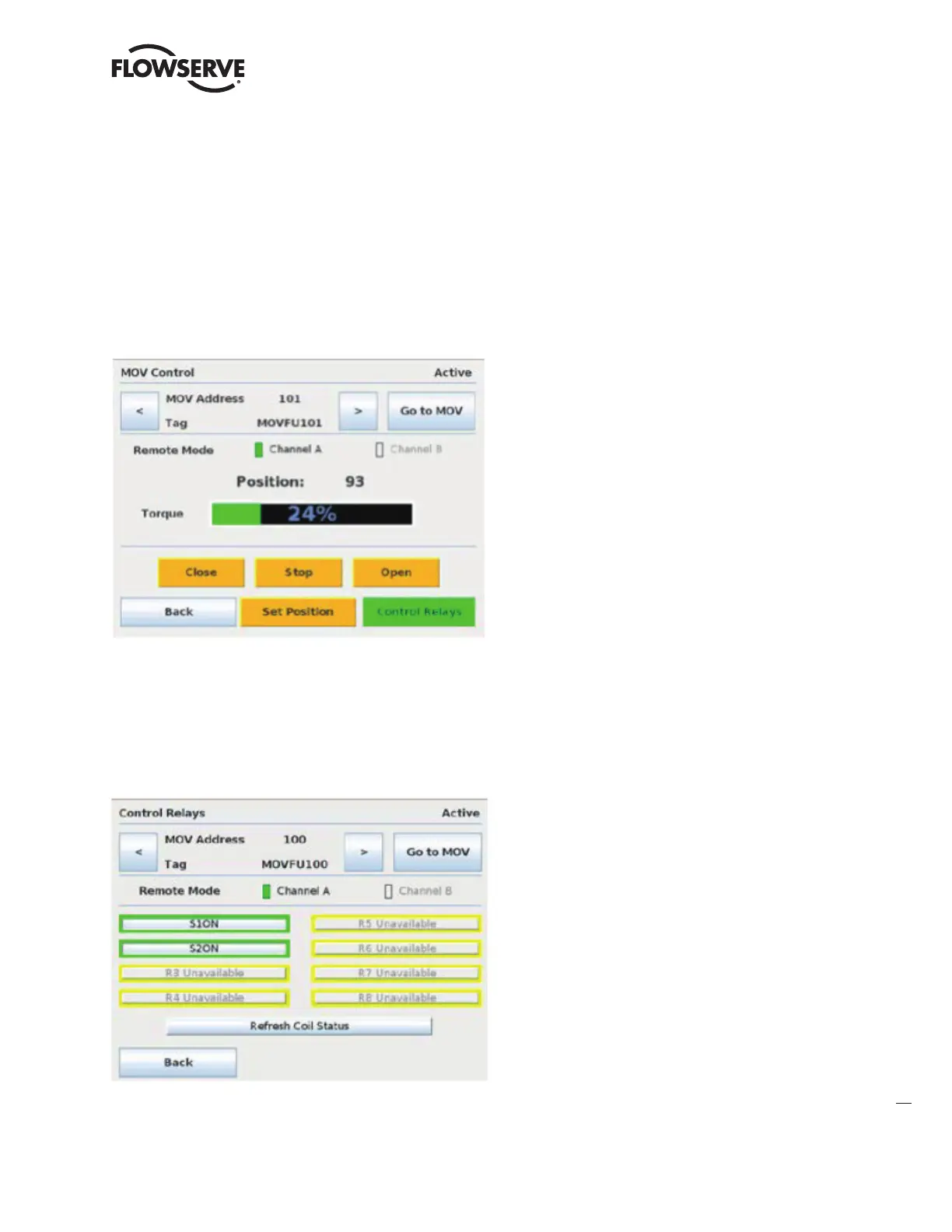

6.2.1 MOV Control

The MOV Control screen allows for a selected MOV to be opened, stopped, closed, or moved to a set position (such as

38% open). If the torque register is selected, the MOV control screen displays the torque reading during MOV operation

for the latest generation smart actuators. MOV control relays can also be energized from this screen if the relays are

conﬁgured for network control within the MSIV.

Figure 6.2 – MOV Control Menu

The Control Relays screen allows for a selected MOV’s relay to be toggled on and off. To do this, the DCS function

code 05/15 coils must be enabled. Additionally, the relays must be conﬁgured for network control within the speciﬁc

MOV. Toggle a coil by tapping on the desired coil text box.

Figure 6.3 – Control Relays
