6.2.2 Emergency Shutdown
An Emergency Shutdown of the networked MOVs can be initiated from the Emergency Shutdown menu.

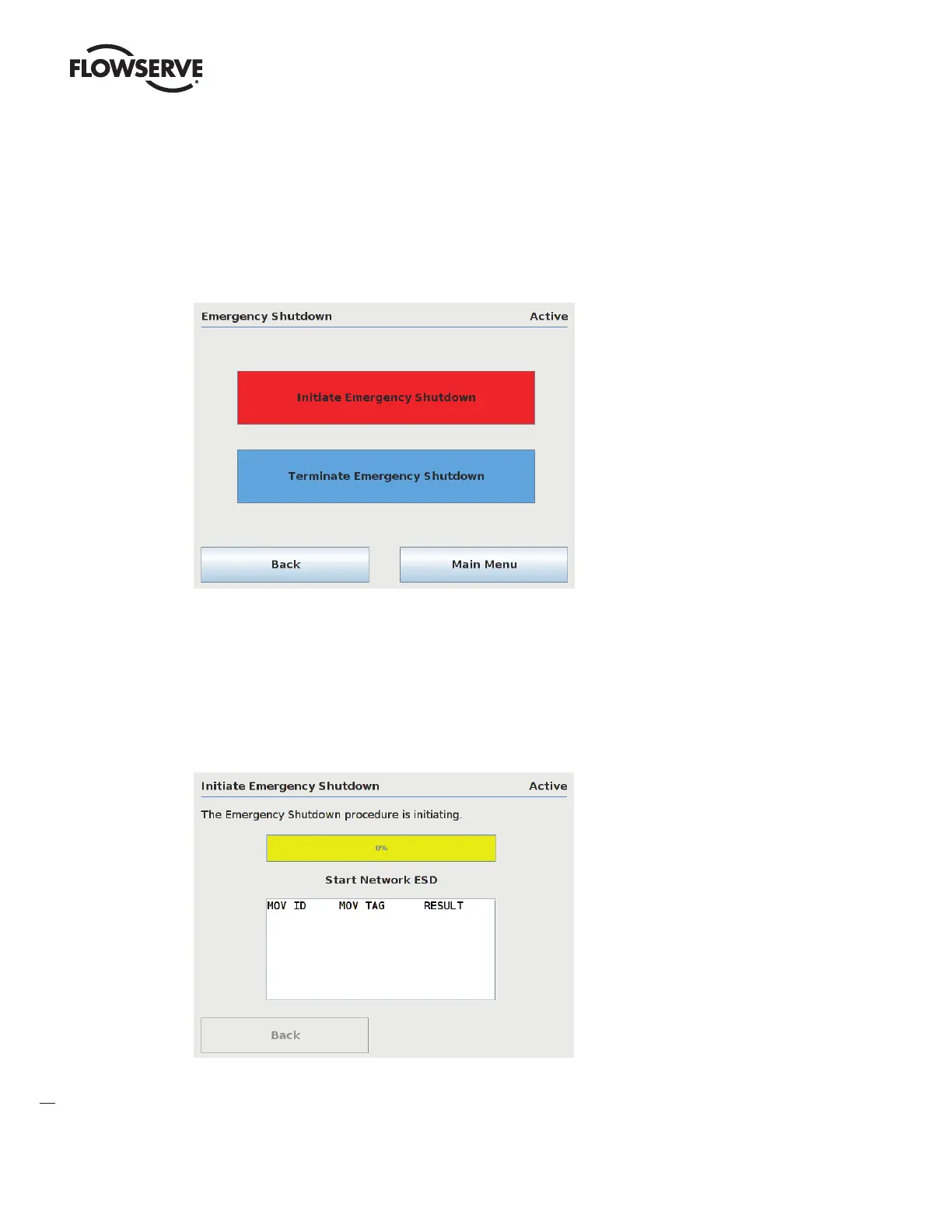

Figure 6.4 – Emergency Shutdown
As shown in figure 6.4, two options are available: Initiate Emergency Shutdown and Terminate Emergency Shutdown.
Once an emergency shutdown has completed and is no longer needed, the emergency shutdown state can be cleared
by pressing the Clear Emergency Shutdown button.
When an emergency shutdown is initiated, the Emergency Shutdown in Progress screen will be displayed.
Figure 6.5 – Emergency Shutdown in Progress
