Flowserve MASTER STATION IV EEP-SN4001 User Manual

Limitorque
®
Master StationI V EEP-SN4001 FCD LMENIM5010-00-AQ – 03/19
19
flowserve.com
Table 4.3 – Hot-Standby Wiring Connections for Redundant Modules
MSIV Module Connector MX/QX Network UEC-3-DDC Network
Hot Active
Channel A Data (+) 13 TB4 D-S
Channel A Data*(-) 14 TB4 D-S*
Shield (GND) N/C
Standby
Channel B Data(+) 5 TB3 D-M
Channel B Data*(-) 4 TB3 D-M*
Shield (GND) 3

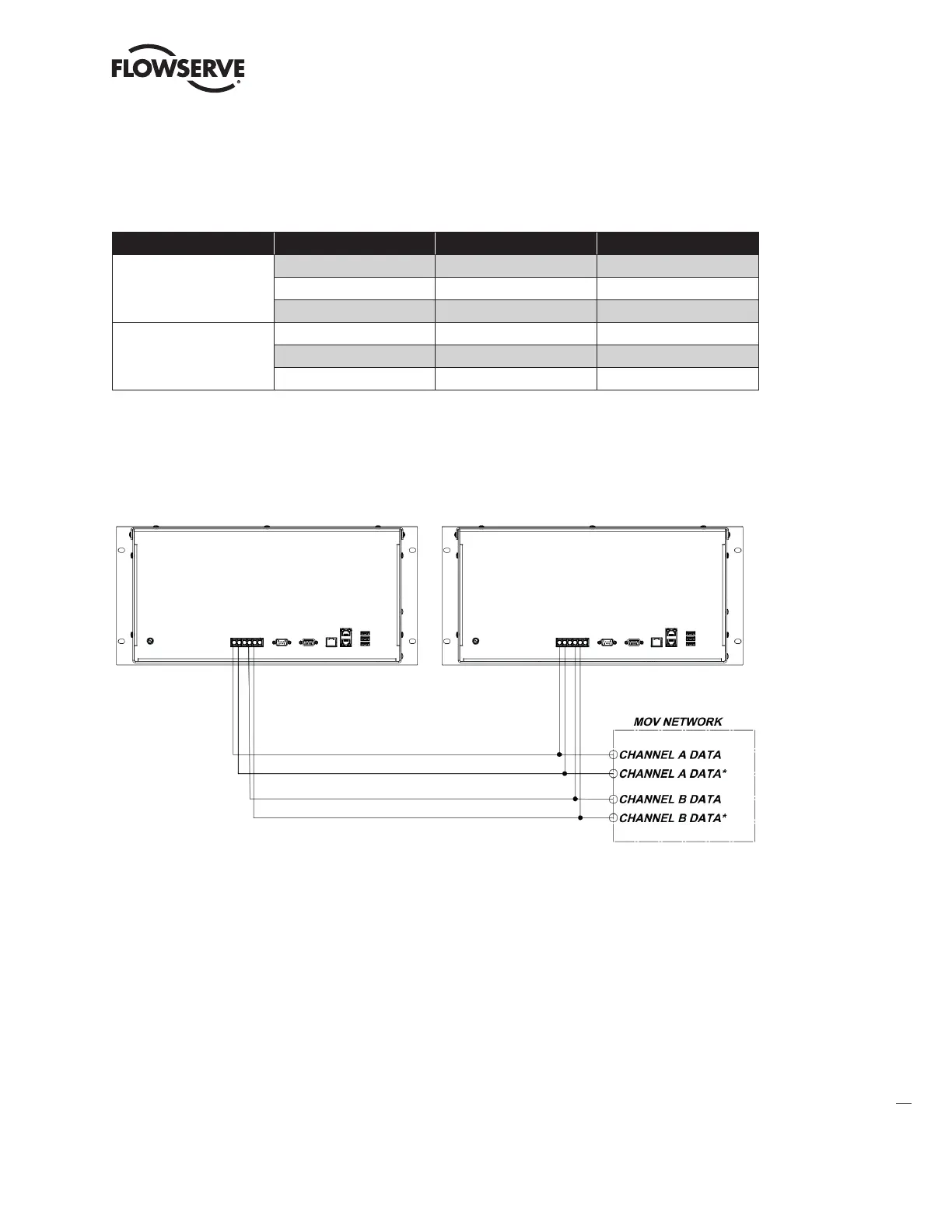

Figure 4.5 – Hot Standby Redundant Wiring Diagram. Refer to Figure 4.4 for cable shield wiring (applies to both
Active and Standby Modules)
