Limitorque

Master Station IV EEP-SN4001 FCD LMENIM5010-00-AQ – 03/19

4.3 Master Station Network Topologies

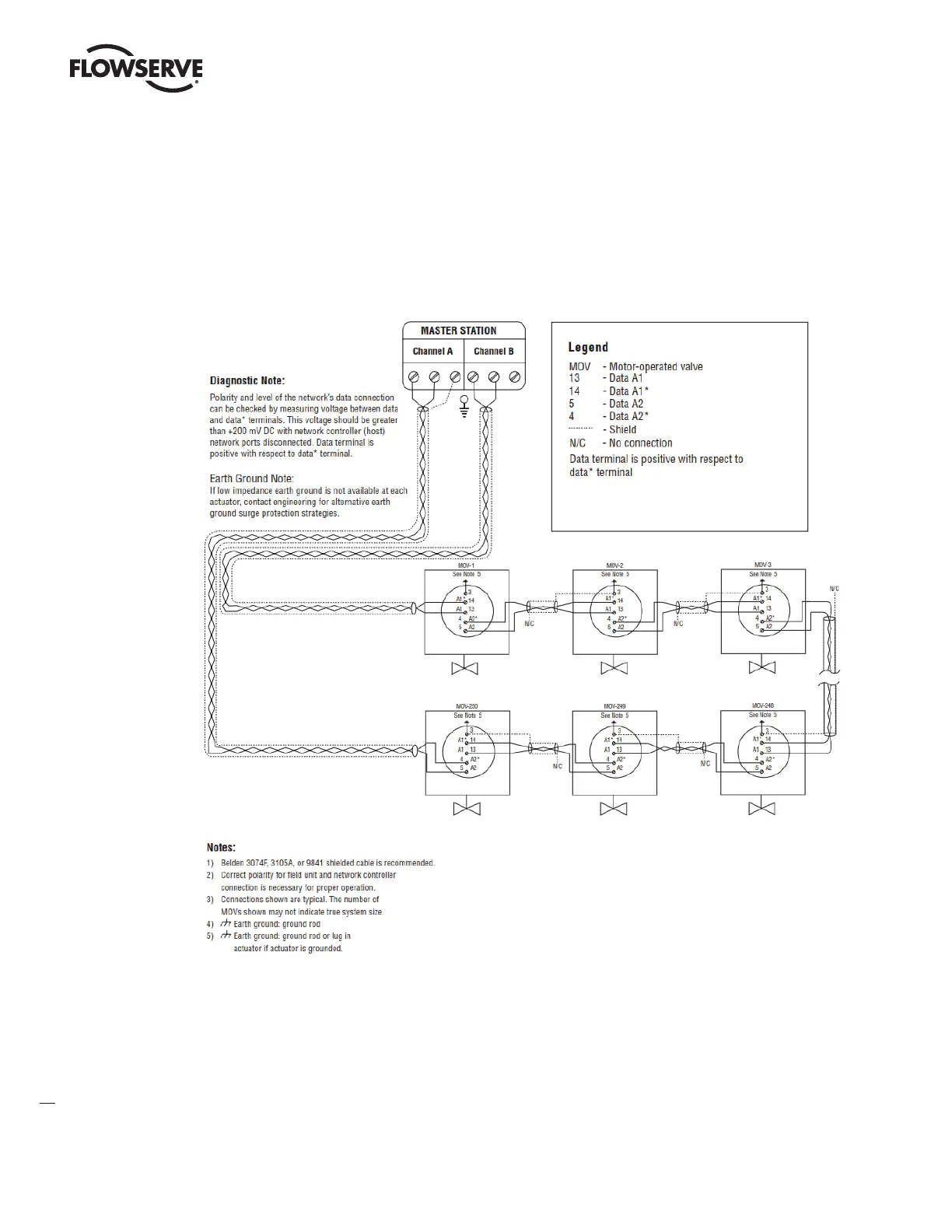

Figure 4.4 – Modbus Redundant Loop Topology

Additionally, a redundant system can be setup using by using 2 modules. Wire the modules in parallel to the same MOV

RS-485 network as shown below. The redundant modules can be located at any position in the network, but Conﬁgure

one module as Active and one as Standby as explained in section 7.2.2 Redundant conﬁguration. The 2 redundant

modules should be connected to the same electrical node of the RS-485 network, and the wiring should adhere to the

Belden wiring speciﬁcations regarding max distance between network nodes and repeaters.
