7.2.5.1 Serial Port
The DCS serial port is configured via the Serial Port screen. Select the appropriate settings, press Accept, navigate to
the main menu and save settings as default when prompted.

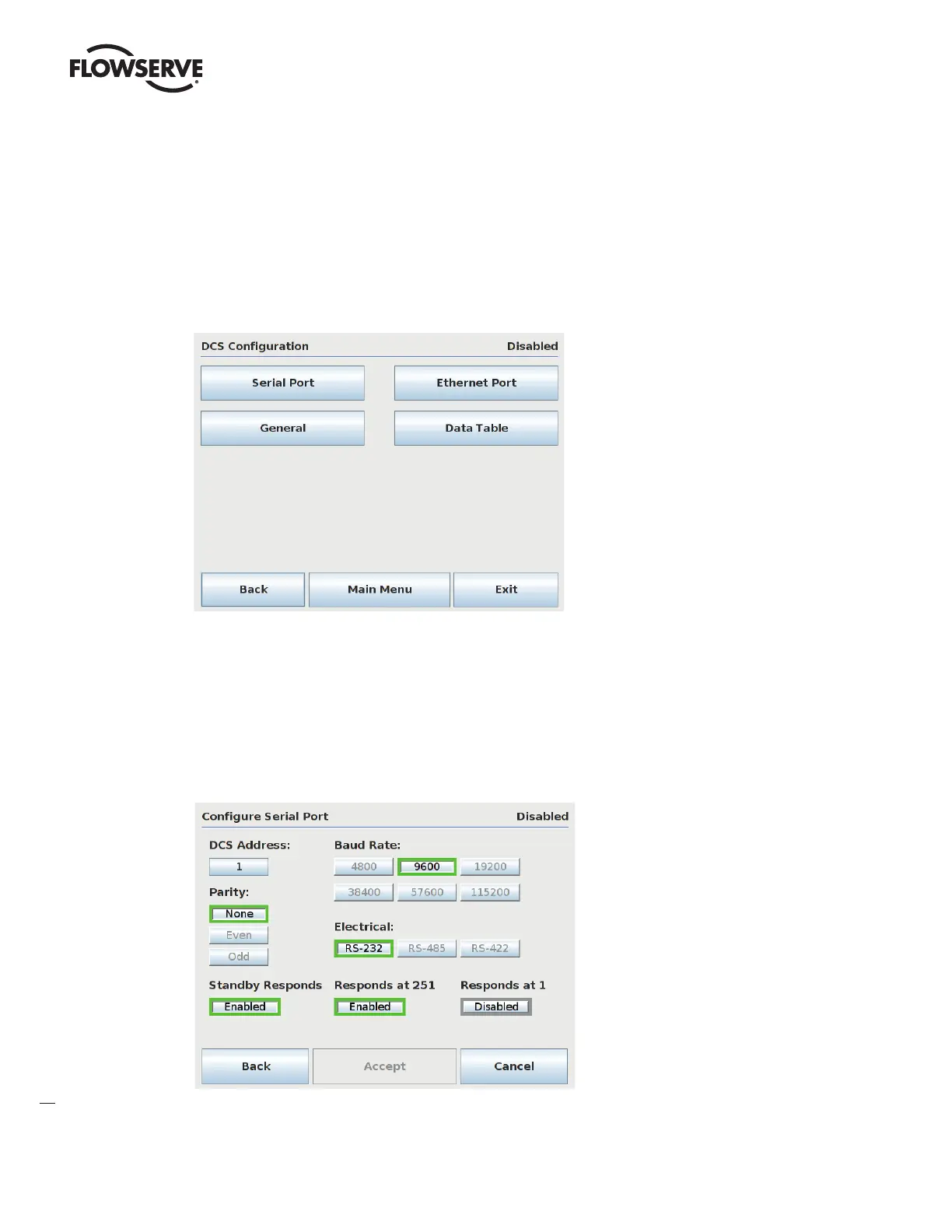

Figure 7.16 – Configure DCS Serial Port
7.2.5 DCS Configuration
The DCS Configuration menu allows the user to configure communication port parameters to successfully link the
MSIV to a control system’s host device (DCS, PLC, etc). This menu includes a Serial Port configuration, Ethernet Port
configuration, Data Table registry mapping, and general settings.
Figure 7.15 – DCS Configuration Menu

Flowserve MASTER STATION IV EEP-SN4001 Specifications

General

Brand	Flowserve
Model	MASTER STATION IV EEP-SN4001
Category	Control Unit
Language	English
