Limitorque
®
Master StationI V EEP-SN4001 FCD LMENIM5010-00-AQ – 03/19
15
flowserve.com
Table 4.1 – Network Channel A Connection
Connector MX/QX UEC-3-DDC
DATA-A1(+) 13 TB4 D-S
DATA-A1*(-) 14 TB4 D-S*
Shield N/C
5. MOV CHANNEL B: Connections for channel B of the MOV network using #6-32 terminal screws. See table
below for connection details.
Table 4.2 – Network Channel B Connection
Connector MX/QX UEC-3-DDC
DATA-A2(+) 5 TB3 D-M
DATA-A2*(-) 4 TB3 D-M*
Shield 3
6. DEBUG SERIAL: RS-232 serial port. Used for MSIV diagnostics. See figure 4.2 below for RS-232
connection information. The Debug serial port is configured as a DTE, DB9 Male
connector.

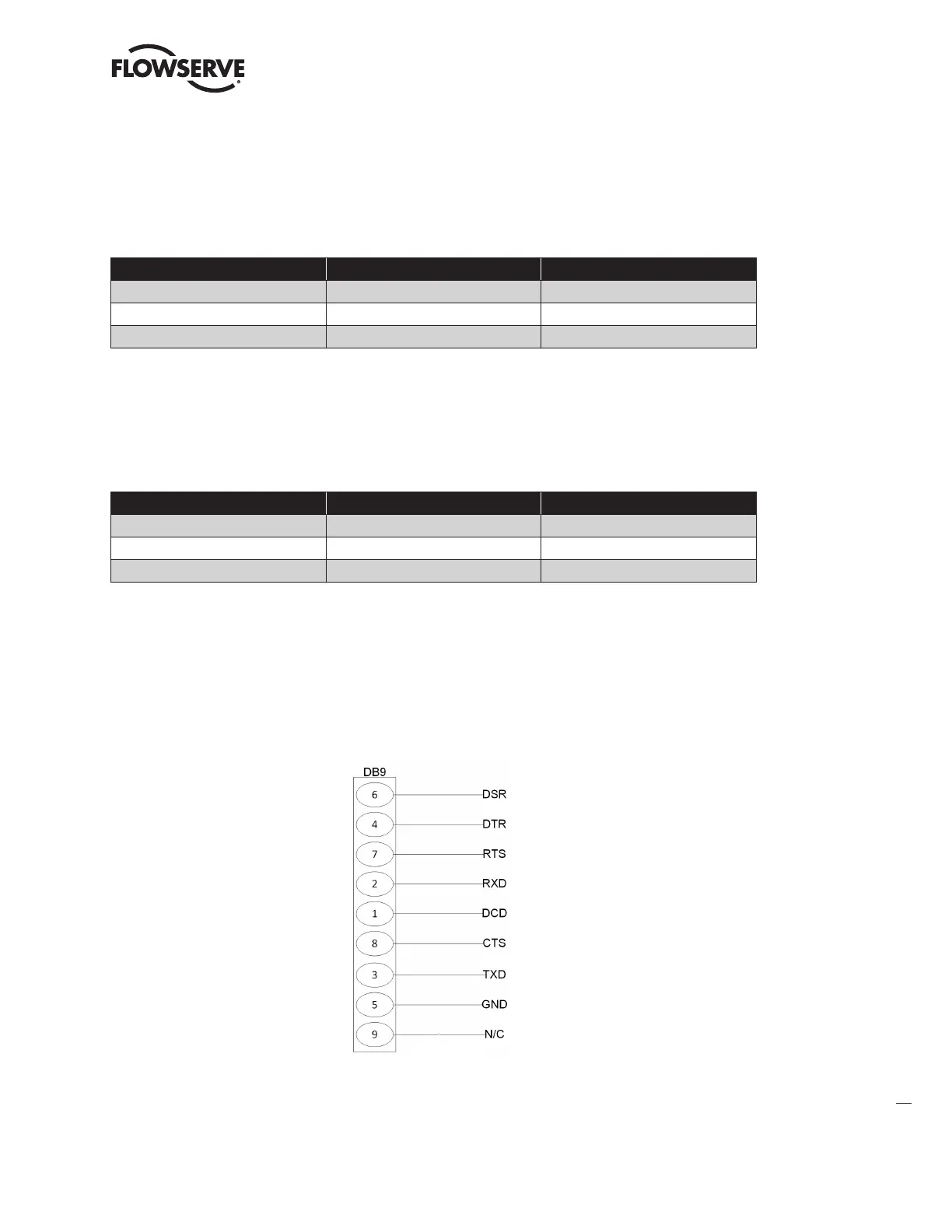

Figure 4.2 – Debug Port Connection: DB9 Male
