Limitorque

Master StationI V EEP-SN4001 FCD LMENIM5010-00-AQ – 03/19

ﬂowserve.com

7.2.5.4 General Settings

General DCS settings can be accessed by pressing the “General” button in the DCs Conﬁguration menu. It is recom-

mended to keep these settings at their default values unless speciﬁcally needed for the application.

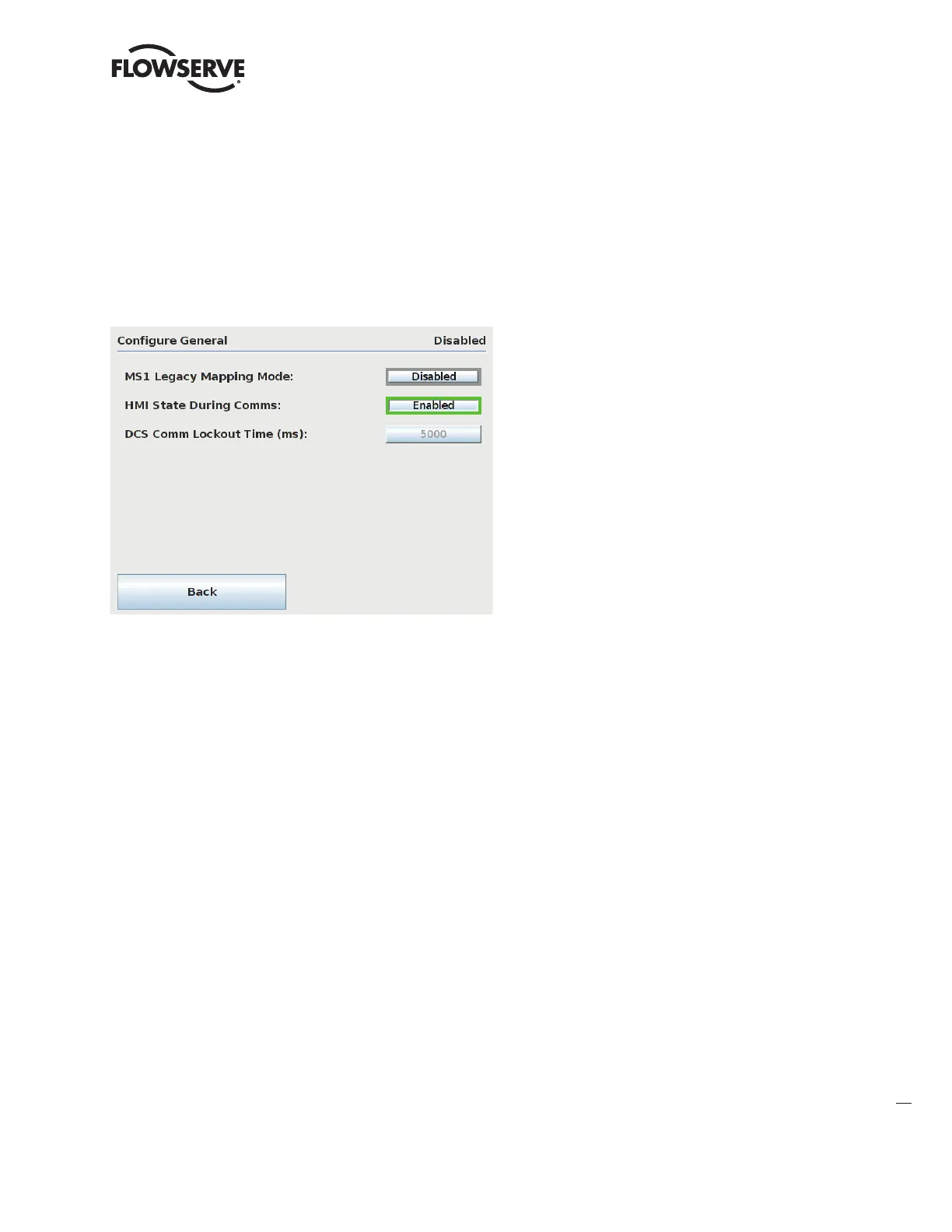

Figure 7.26 – General DCS Settings (defaults shown)

1. The MS1 Legacy Mapping Mode setting can be Enabled/Disabled for use of the A/B style mapping as explained

in section 7.2.5.3.1 FC 02 Read Input Status.

2. The HMI State During Comms setting allows the user to enable or disable use of the local (touchscreen) display

when DCS communication is active.

3. The DCS Comm Lockout Time setting deﬁnes the duration of the touchscreen lockout period during DCS

communications. Valid range in milli-seconds is 1-10,000.
