Fluid Imaging Technologies FlowCAM User Manual

- 95 -

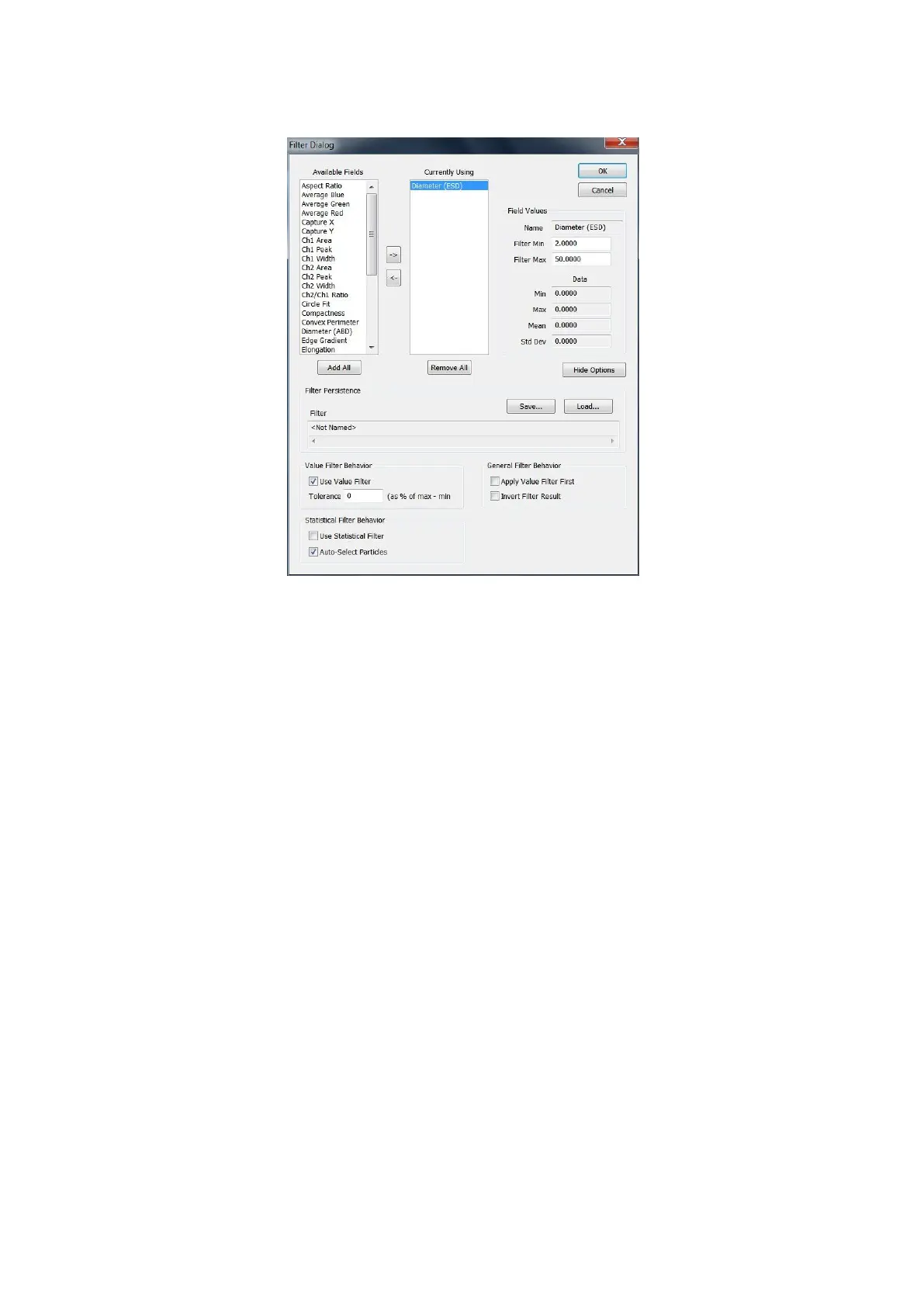

Constructing a Filter: Particle parameters can be selected from the Available Fields list and moved
over to the Currently Using list by highlighting the parameter and clicking the right arrow. Parameters
can be moved in a reverse direction by selecting the left arrow. The user can also select the Add All and
Remove All buttons to move the entire list.
Field Values: Once a parameter has been moved to the right, values for the Filter Min and Filter Max
are entered by the user.
Selecting the More Options… button will reveal the additional, advanced options.
Filter Persistence: Once constructed, filters can be saved and then reloaded into the Filter Dialog.
Value Filter Behavior
Use Value Filter: Filters descriptions can contain both a Value and a Statistical filter in one definition.
When working with filters interactively from the collage window, this checkbox is already appropriately
checked. If the user wants to modify a statistical filter, for instance by adding a value filter to be applied
before or after the main filter, then check this box.

Fluid Imaging Technologies FlowCAM Specifications

General

Brand	Fluid Imaging Technologies
Model	FlowCAM
Category	Measuring Instruments
Language	English
