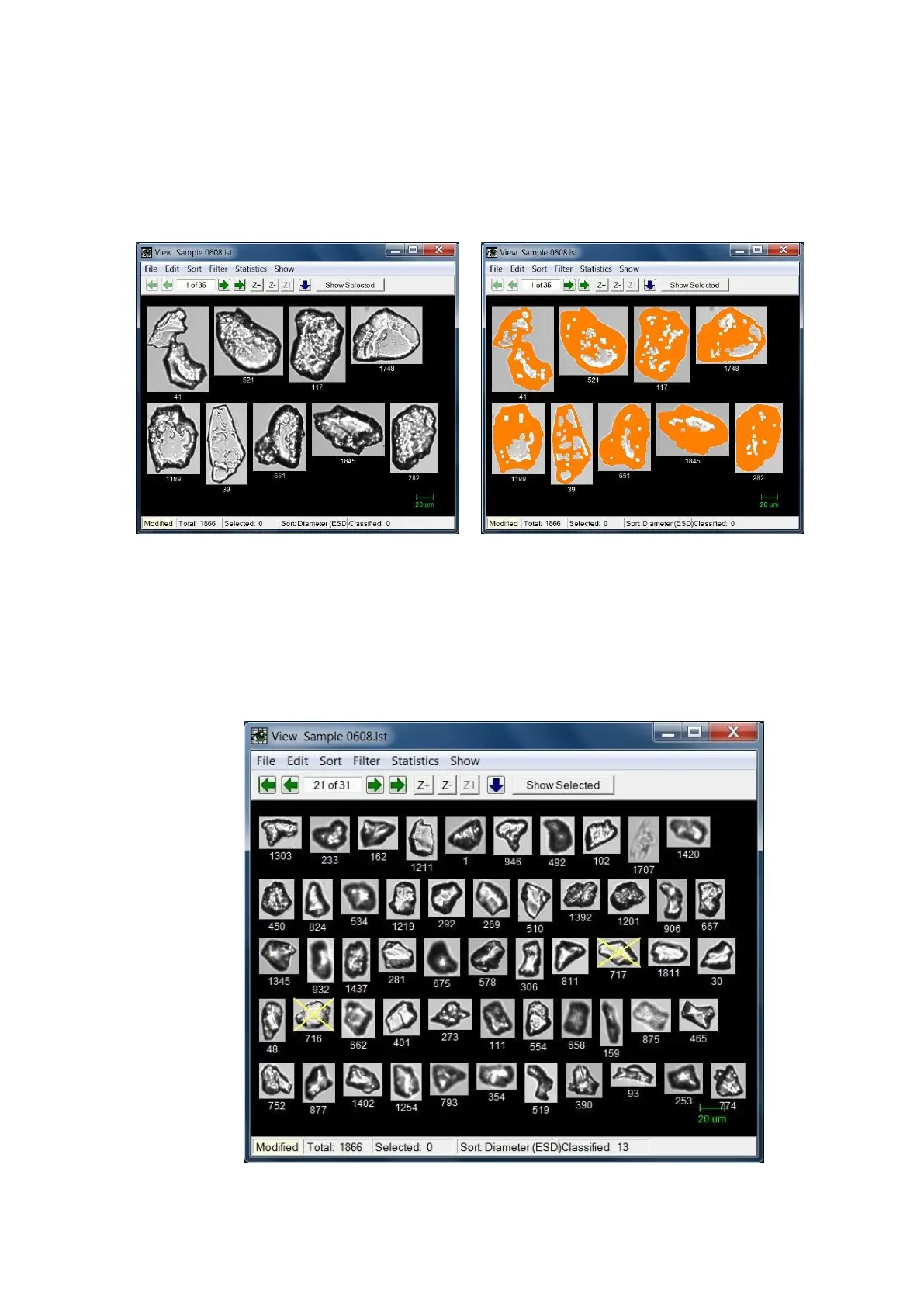

same particles without and with the Binary Image Overlay. Note that by using this overlay, it is easily
observed that the context settings are not optimized as various parts of some particles are not being
captured. Thus the user can adjust Context settings attempting to improve the overall analysis data and
statistics.
Classified Images
Normally when the Classification window is displayed, any particles that are already part of a Class are
not shown in the View window collage. This menu option will enable the previously classified particles
to be displayed in the View window collage (with a yellow X through them to indicate their classified
status). See particle 716 and 717 below for an example of a classified particle.
