Shipboard V/A/Hz
Trend22
22-3
Available function keys:
F1
Up/down arrow keys are assigned to scroll Meter screen.
F3
Access to the Trend screen. For description see below.
F4
Access to the Events screen. The number of events that
occurred is shown. For description see below.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
immediate (NOW) or TIMED start time which allows you
to define start and duration of the measurement.
Trend

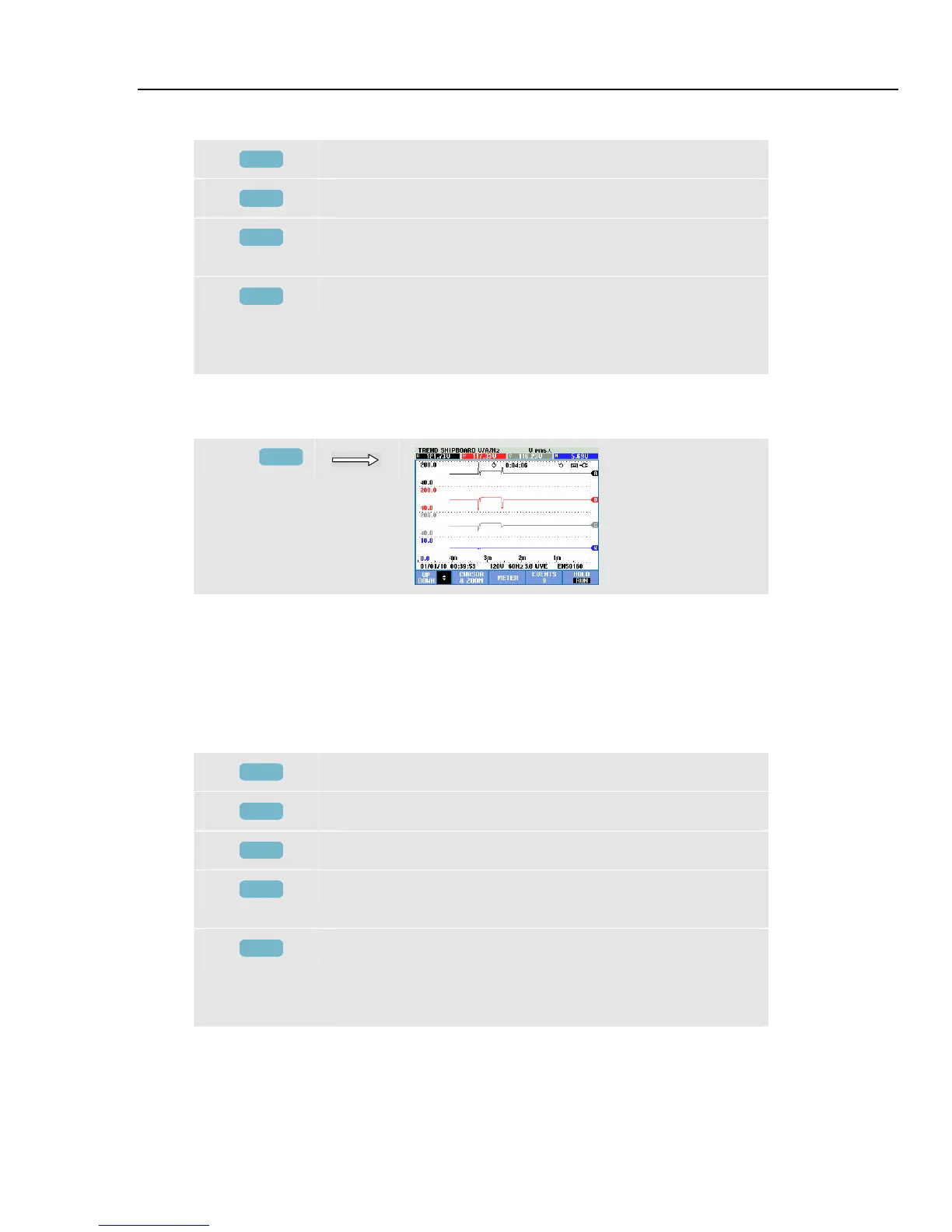

To access the Shipboard V/A/Hz Trend screen:
e
F3
All values in the Meter screen are recorded, but the Trends from each row in the Meter
screen are displayed one at a time. Press Function key F1 to assign the up/down arrow
keys to row selection.
The traces build up from the right side. Readings in the header correspond to the most
recent values plotted on the right.
Available function keys:
F1
Up/down arrow keys are assigned to scroll Trend screen.
F2
Access to cursor and zoom menu.
F3
Return to Meter screen.
F4
Access to Events menu. The number of events that occurred
is shown. For description see below.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
immediate (NOW) or TIMED start time which allows you
to define start and duration of the measurement.
Cursor. When the Cursor is on, the Trend values at the Cursor are displayed in the screen
header. Moving the Cursor off the left or right side of the screen brings the next screen
into the viewing area. Cursor is active in Hold mode only.
