Power & Energy
Trend11
11-3
By a using TIMED start of the measurement, the Analyzer can be used to measure energy
usage during a predefined period of time. TIMED start can be adjusted when switching
from HOLD to RUN with function key F5.
Available function keys:
F1
Up/down arrow keys are assigned to scroll Meter screen.
F3
Access to Trend screen. For description see below.
F4
Access to Events menu. The number of events that occurred
is shown.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
immediate (NOW) or TIMED start time which allows you
to define start and duration of the measurement.

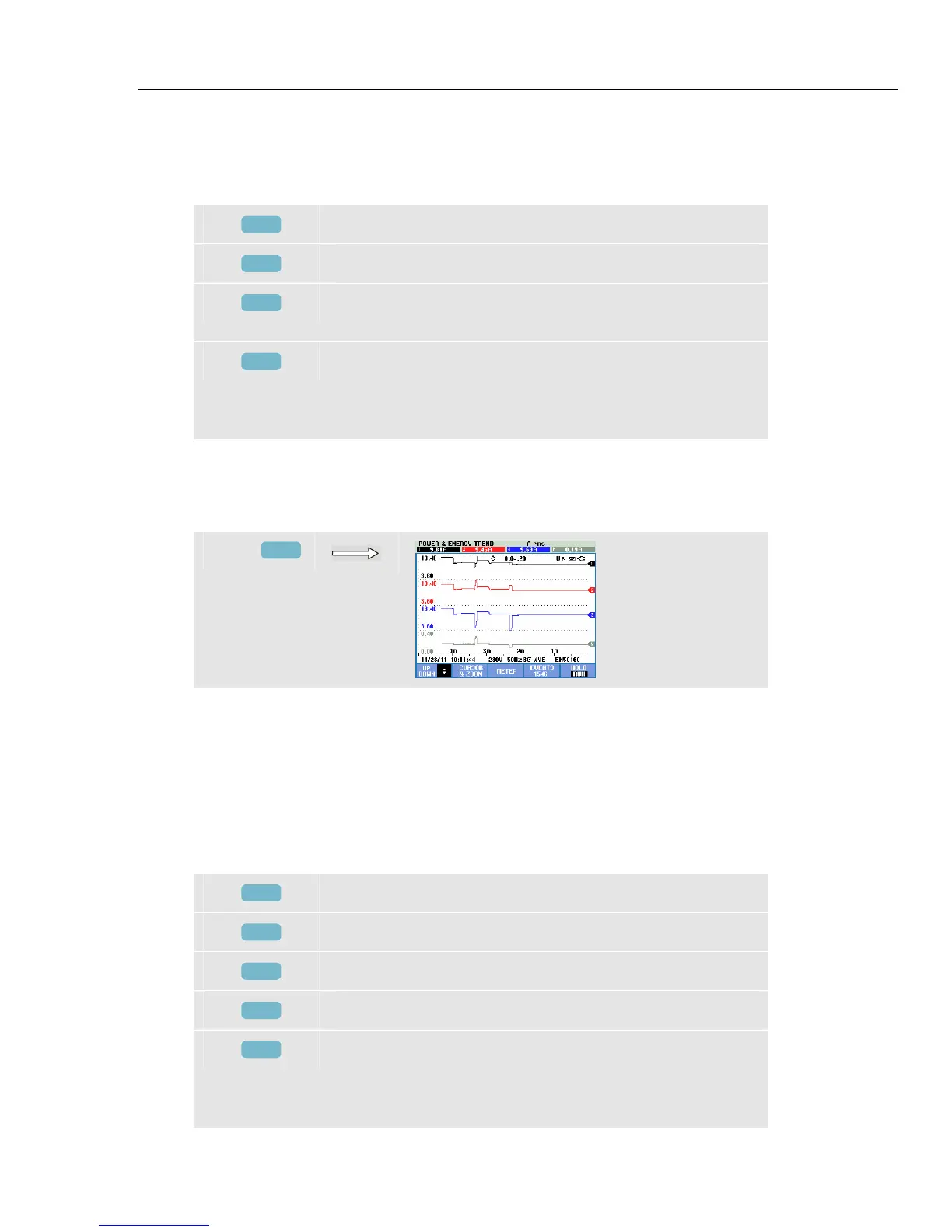

Trend
To access the Power & Energy Trend screen:
f
F3
The figures in the Meter screen are instantaneous values that update constantly. Changes
in these values over time are recorded whenever the measurement is active. All values in
the Meter screen are recorded, but the Trends from each row in the Meter screen are
displayed one at a time. The arrow keys are assigned to scroll the Trend screen.
The traces build up from the right side. The readings in the header correspond to the most
recent measurements plotted on the right.
Available function keys:
F1
Up/down arrow keys are assigned to scroll Trend screen.
F2
Access to cursor and zoom menu.
F3
Return to Meter screen.
F4
Access to Events tables.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
immediate (NOW) or TIMED start time which allows you
to define start and duration of the measurement.
