Basic Operations and Menu Navigation
SD Memory Card 4
4-5

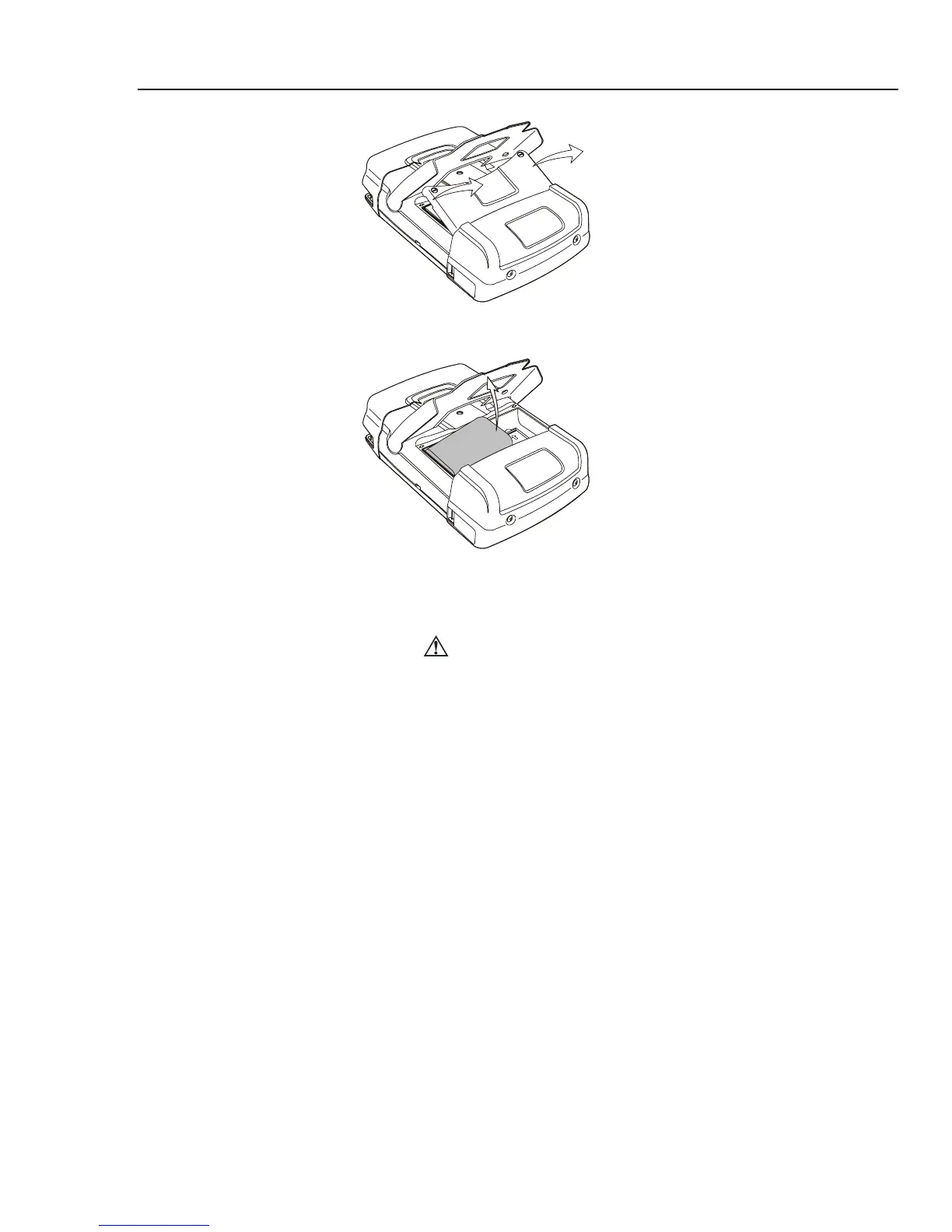

Figure 4-4. Removing the Battery Cover
Figure 4-5. Removing the Battery
SD Memory Card
Warning
Never Operate the Analyzer with the Battery Cover removed!
Hazardous voltage exposure may occur.
The Analyzer has a SD Memory Card for storage of measurement data. This data is
retained also when the Analyzer is disconnected from its power sources. If the Memory
card is not installed, only momentary measurement data is available.
The Memory Card is located in the Analyzer’s battery compartment and can be reached
in the same way as the battery. To lock or unlock the Card press it in the direction of the
arrow shown in the compartment. Also the correct position of the Card is shown there.
Remark: the standard battery can stay in place during exchange of a Memory Card. A
Double Capacity battery however must be removed to get access to the Memory Card.
Note
To avoid malfunctioning of the Memory Card, do not touch its contacts.
Initial Setup
When you power the Analyzer for the first time, after a Factory Default, or if it has been
disconnected from all power sources, you will have to adjust a number of general settings
that match your local situation.
This concerns: Information language, Nominal Frequency, Nominal Voltage, Phase
Identification, Phase Colors, Date and Time. The setups are done step-by-step and
explained in detail in Chapter 24.
