Monitor - Power Quality Monitoring
Trend Display16
16-5
The measurement data available under the Function keys is explained in the following
sections. Data is presented in the formats Events Table, Trend Display, and Bar Graph
screen.
Trend Display

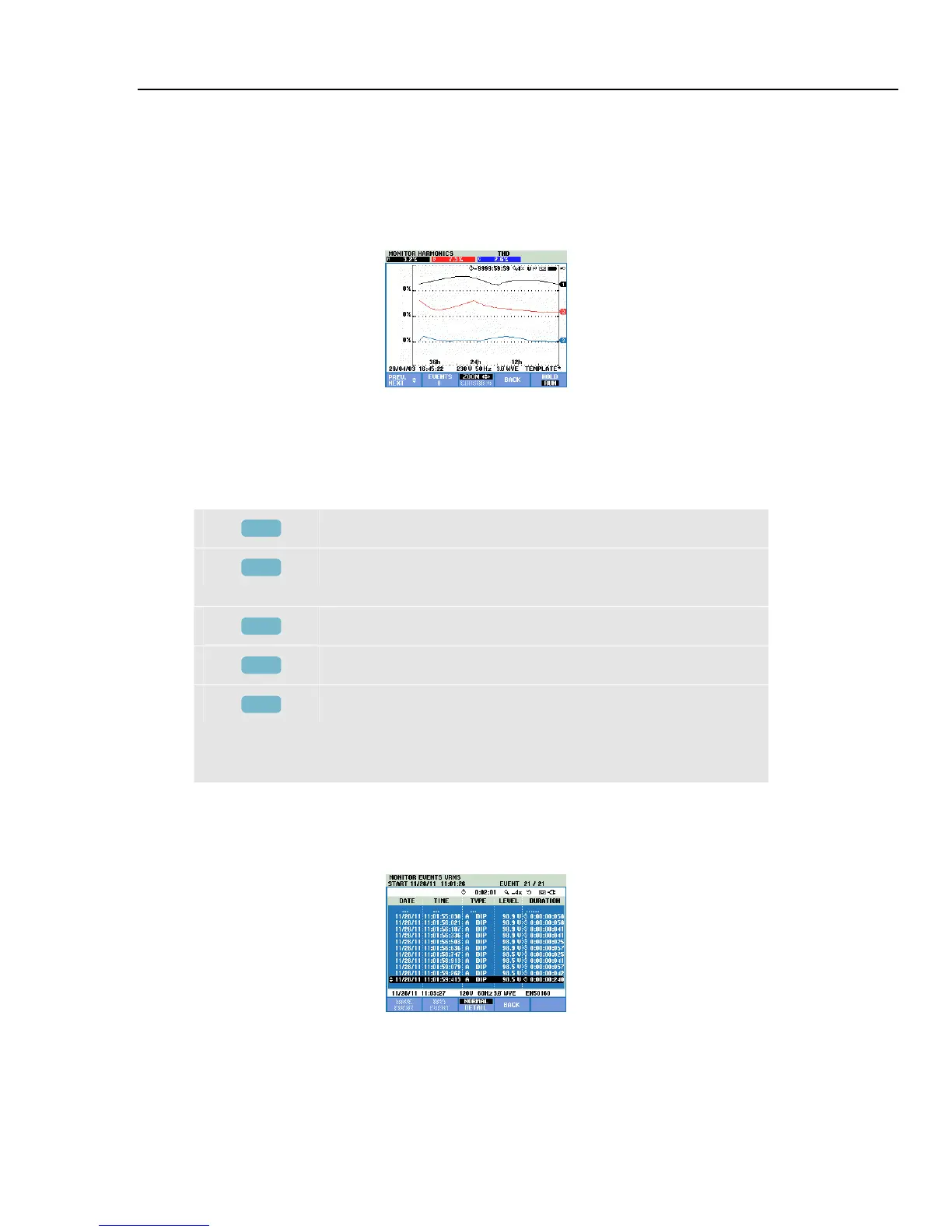

Figure 16-2. Trend Display
The Trend screen shows the changes over time of measuring values. Zoom and Cursor
are available to examine Trend details. Zoom and Cursor are operated by the arrow keys
and explained in Chapter 23.
Available function keys:
F1
Up/down arrow keys are assigned to scroll Trend screen.
F2
Access to Events menu. The number of events that occurred
is shown.
F3
Access to cursor and zoom menu.
F4
Return to bar graph screen.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
immediate (NOW) or TIMED start time which allows you
to define start and duration of the measurement.
Events Table
Figure 16-3. Events Table
The events table shows the events that occurred during the measurement with date/time
of start, phase, and duration. The amount of information in the table can be selected with
the Function key F3.
