Harmonics
Meter screen10
10-3
Available function keys:
F1
Selection of harmonics type: Voltage, Current, or Real
Power (Watt). Power harmonics can have positive and
negative polarity.
F2
Selection of waveform set to be used: A (L1), B (L2), C
(L3), N (neutral) or ALL
F3
Access the Meter screen.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
immediate (NOW) or TIMED start time which allows you
to define start and duration of the measurement.

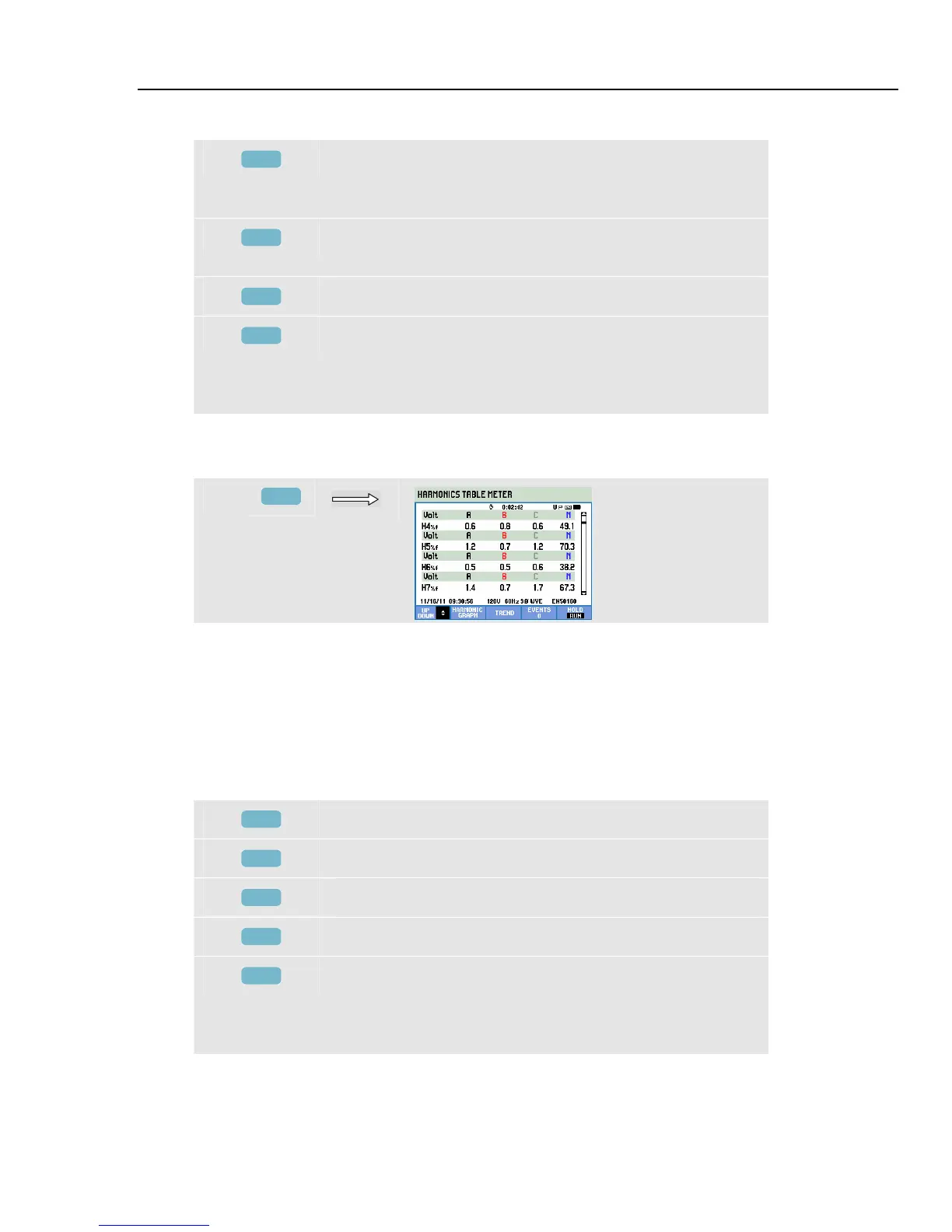

Meter screen
To access the Harmonics Meter screen:
f
F3
The Meter screen display shows many measurements that are grouped per phase. Use the
up/down arrow keys to scroll all measurements within the viewing area.
The Events table attainable under Function key F4 lists all threshold crossings of phase
voltages. Thresholds according to international standards or user-definable thresholds can
be used. Threshold adjustment is reached via the SETUP key and Limits. For detailed
information see Chapter 24, Limits Adjustments.
Available function keys:
F1
Up/down arrow keys are assigned to scroll Meter screen.
F2
Return to Bar Graph screen.
F3
Access the Trend screen. For description see below.
F4
Access to Events tables.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
immediate (NOW) or TIMED start time which allows you
to define start and duration of the measurement.
