Use of PC
The Analyzer is equipped with an isolated USB interface for communication with a PC.
To make the connection with the USB port of PC’s, an USB-A to mini-USB interface
cable is supplied. With the Power Log software you can upload trend and waveform data
and screenshots in bitmap format to your PC or laptop. The information supplied with
Power Log software informs you in detail about its features. The interface connection is
located behind a dust cover at the lower left corner of the Analyzer.
Mini
USB

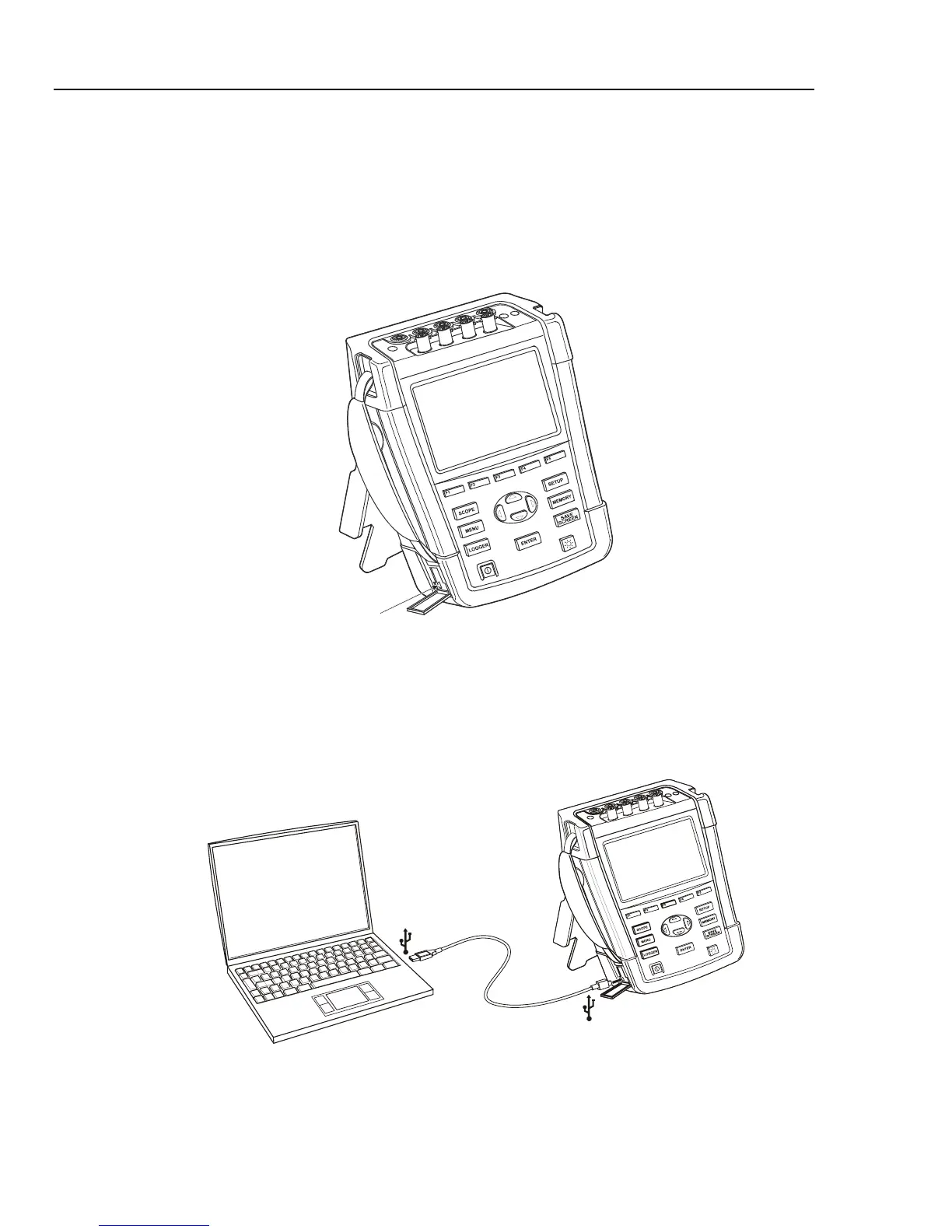

Figure 25-1. Location of USB interface connector
When started, Power Log software automatically detects the Analyzer baudrate setting.
For other applications communication baudrate can be adjusted as follows: press the
SETUP key, then Function key F1 – USER PREFerence, and then select RS-232 using
the up/down arrow keys and ENTER. Then adjust the baudrate with the left/right arrow
keys and leave the menu with F5 - BACK.
Figure 25-2. Analyzer and laptop PC
