Using Memory and PC
Using memory25
25-3

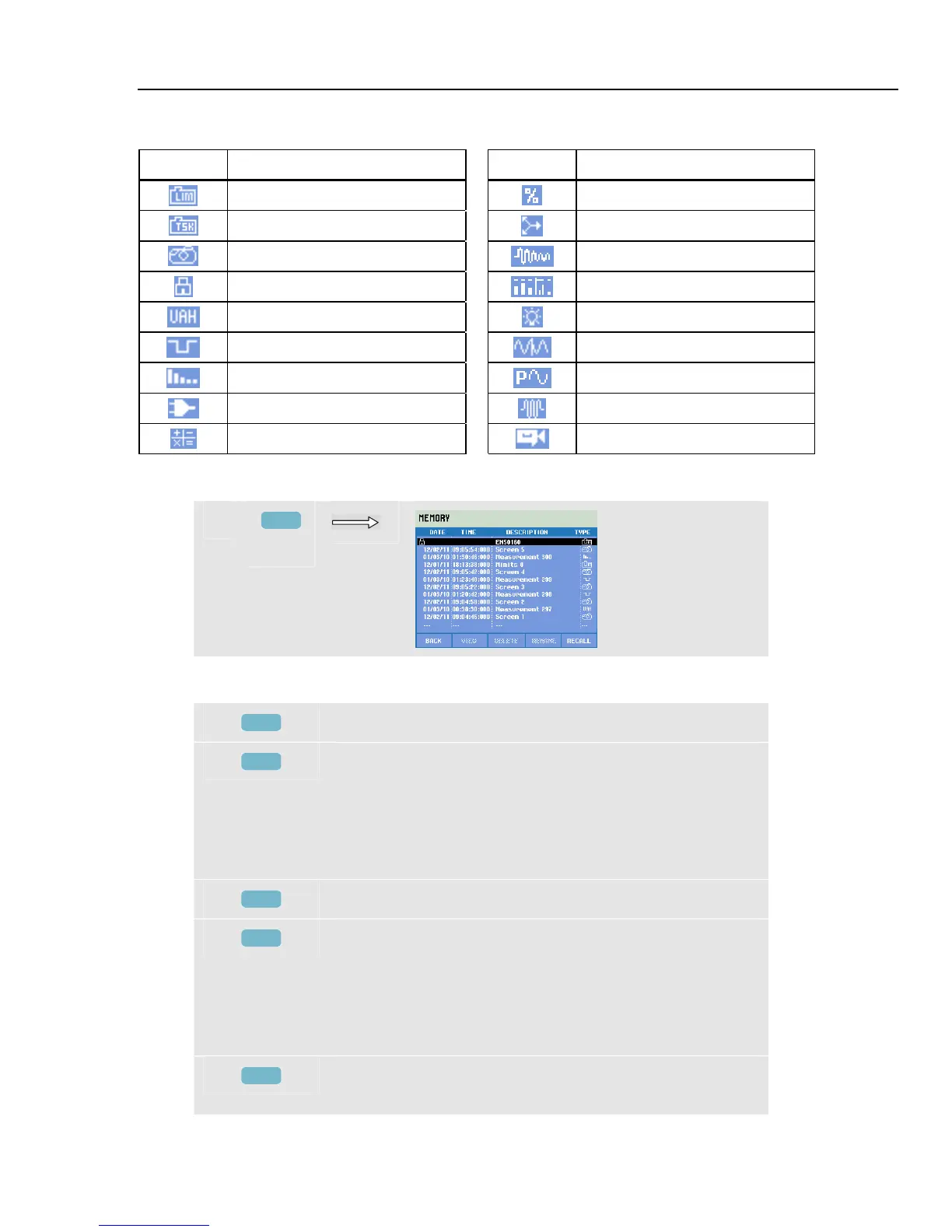

Following icons are used to identify the data files:
Icon Description Icon Description
Limits
Power Inverter Efficiency Meas.
Task
Unbalance Measurement
Screen
Inrush Measurement
Read only file
Monitor Measurement
Volts/Amps/Hertz Measurement
Flicker Measurement
Dip & Swells Measurement
Transients Measurement
Harmonics Measurement
Power Wave Measurement
Power & Energy Measurement
Mains Signaling Measurement
Energy Loss Calculator
Logger Measurement
Recalling and deleting Screenshots and Datasets:
d
F1
Available function keys for recall and delete:
F1
Return to main menu.
F2
Access to the menu where you can view the highlighted
screenshots and data sets. Use the Function keys PREVious
or NEXT to view other files. Files are grouped in sequence
of date and time. For datasets the entry screen is shown.
Complete data within a dataset becomes available for
investigation after you have pressed RECALL (F5).
F3
To delete the file highlighted with the up/down arrow keys.
F4
To rename the file highlighted with the up/down arrow
keys. Renaming occurs via a menu to define a new name.
Name definition is done with the arrow keys: the up/down
keys for character selection and the left/right keys for
character position. Spaces are inserted with Function key
F3. The selection is confirmed with Function key F5.
F5
Is only available for datasets to view their complete
contents.
