Fluke 434-II/435-II/437-II
Users Manual
25-2
Making a Screenshot
SAVE
SCREEN
Press this key to make a screenshot.
Making a screenshot is a quick and easy way to store measuring results. However post
processing is not possible. A screenshot is saved each time you press this button. A
screenshot is saved as a file with date and time when saved. This occurs via a menu to
define a name for the file to be saved.
Name definition is done with the arrow keys: the up/down keys for character selection
and the left/right keys for character position. Spaces are inserted with Function key F3.
How to recall, print, and delete screenshots and how to rename them is explained in the
next section ‘Memory Operations’.

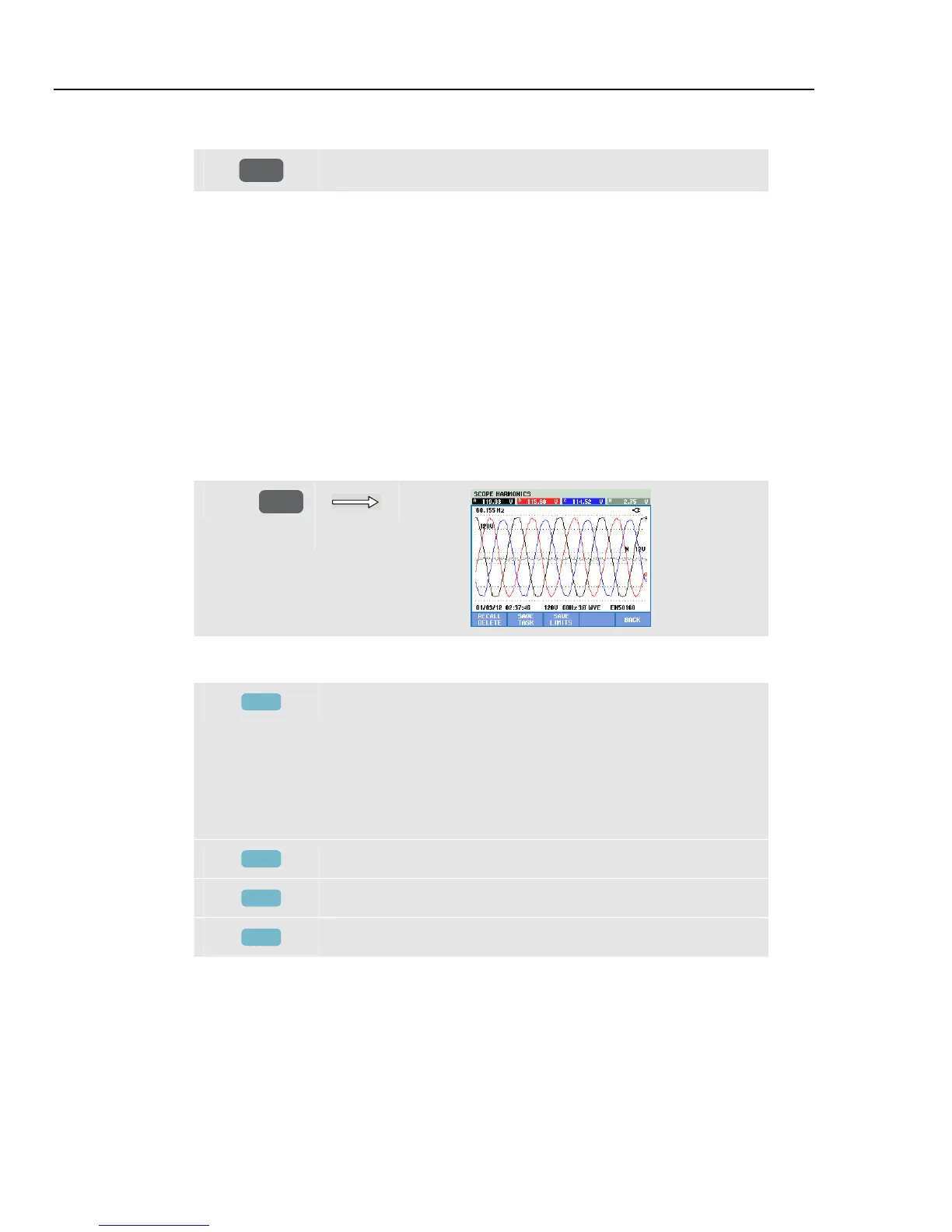

Memory Operations
The MEMORY button accesses menus to save, recall, view, delete and print datasets and
screenshots. When you press the MEMORY button, the current measurement is stopped
and data is saved. This action occurs via a confirm menu.
c
MEMORY
Available function keys:
F1
RECALL / DELETE. Accesses the submenu to view,
delete, rename files and to use data files. The submenu is
shown in the figure below: it lists all screenshots and data
files in the sequence of date and time. The type column
indicates all data files with a small icon. The table below
lists all icons that are used. You can use the up/down arrow
keys to highlight a particular data file to be viewed.
F2
SAVE TASK. Limits and analyzer setups are saved.
F3
SAVE LIMITS. Limits are saved..
F5
BACK. Press to resume the measurement.
