Fluke 434-II/435-II/437-II
Users Manual
19-2
e
f
ENTER

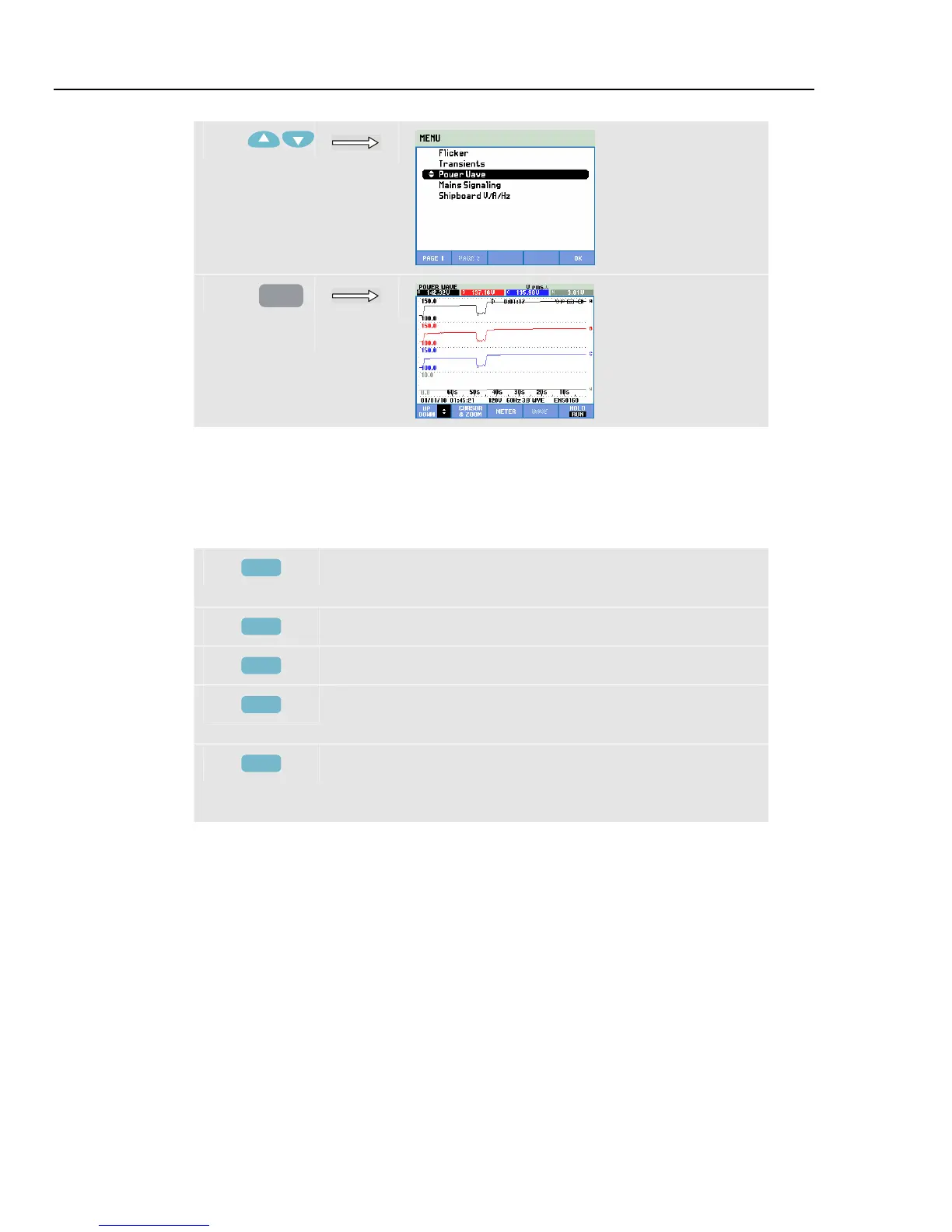

The traces build up from the right side. Readings in the header correspond to the most
recent values plotted on the right. With the up/down arrow keys you can select all
available trends.
Available function keys:
F1
Up/down arrow keys are assigned to select a set of trends
and the belonging readout.
F2
Access to cursor and zoom menu.
F3
Access to meter screen. For description see below.
F4
Access to waveform screen. Analyzer must be in HOLD
mode. For description see below.
F5
Switch between HOLD and RUN of screen update.
Switching from HOLD to RUN invokes a menu to select
Immediate or Timed Start and Duration of the measurement.
Cursor. When the Cursor is on, the Trend values at the Cursor are displayed in the screen
header. Moving the Cursor off the left or right side of the screen allows scrolling of the
trend on screen. Cursor is only active in Hold.
Zoom. Allows you to expand or shrink the display vertically to view details or to fit a
complete graph within the screen area. Zoom and Cursor are operated by the arrow keys
and explained in Chapter 23.
Offset and Span of the Trends are auto ranging for a good display in most cases, but they
are adjustable. The adjustment menu is reached via the SETUP key and function keys
F4 – MANUAL SETUP, F1 – TREND SCALE. See Chapter 24, MANUAL SETUP.
