PERFORMANCE TESTS
NOTE
When the Recal annunciator on the measurement receiver lights while
stepping through UUT levels, press the CALIBRATE button on the
measuring receiver and wait for a stable reading.
8. Repeat steps 4 through 7 for each of the following UUT frequencies:
14, 20, 40, 80,
160, 320, 550, 640, 700, 850, 950,
and
1024
MHz

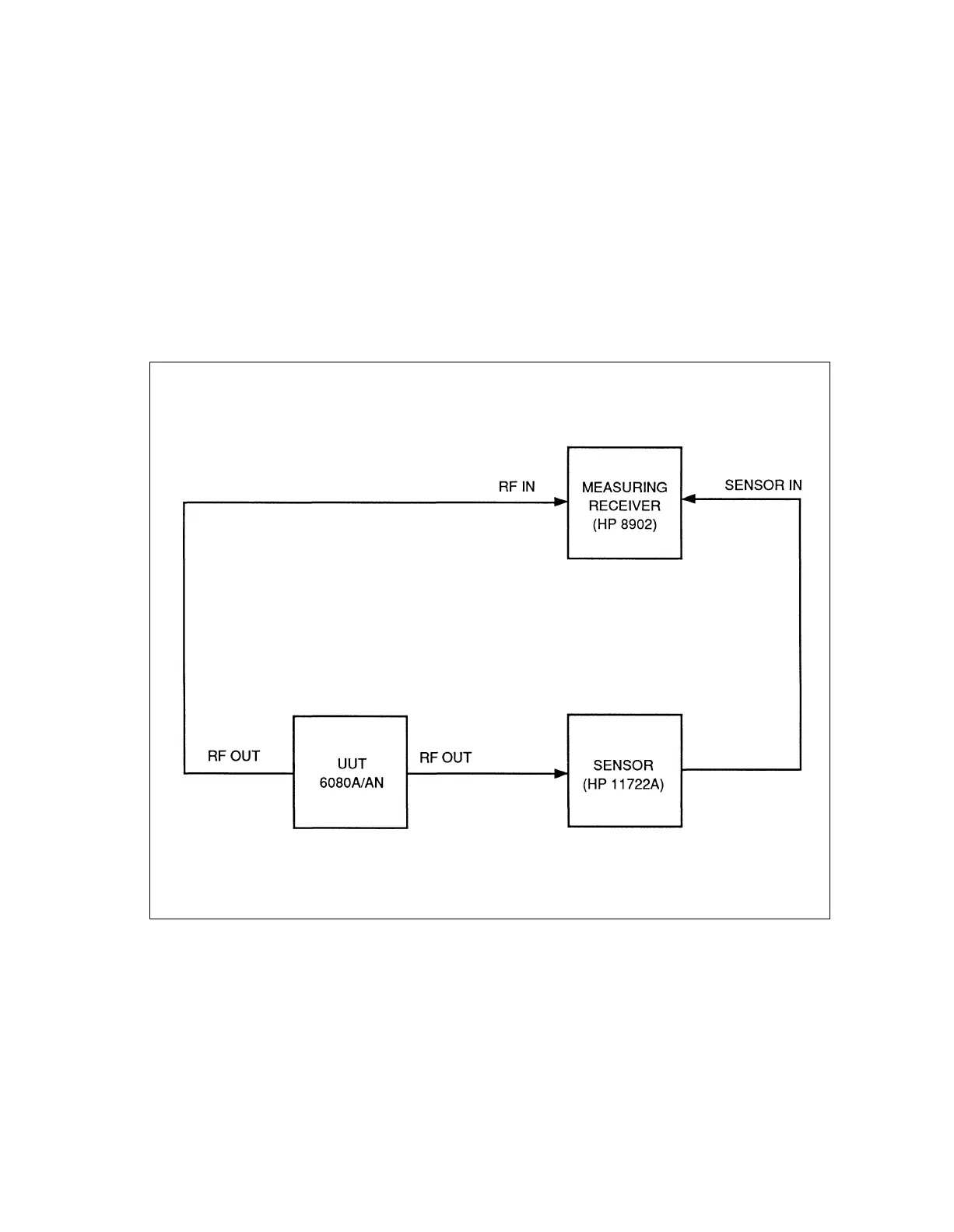

Figure 4-2. Alternate-Level Accuracy Test Equipment Setup
4-12
