A-head stem
Adjustable stem
The incline of the stem can be adjusted to your re-
quirements. Depending on the model, the lateral
or internal fastening screw must be loosened and
tightened again after adjustment with the correct
fastening torque.
13.3 Setting up the brake levers
The brake levers should be set up so
that your hands can safely and comfort-
ablyapplythemasastraightextension
of your arms.
Checkbeforeyourrstridewhichbrake
lever brakes which wheel.
Some brake models allow adjustment of the grip
width so that brake levers can also be safely
gripped by smaller hands.
Always have brake adjustments performed by a
FLYER specialist retailer as they concern safe-
ty-related components.
13.4 Suspension elements
The chassis must be adjusted to the rider's weight
and type of use by a FLYER specialist retailer to
ensure appropriate function of the suspension el-
ements. The suspension elements must be set up
in line with the manufacturer’s operating instruc-
tions. In principle, this means that when riding

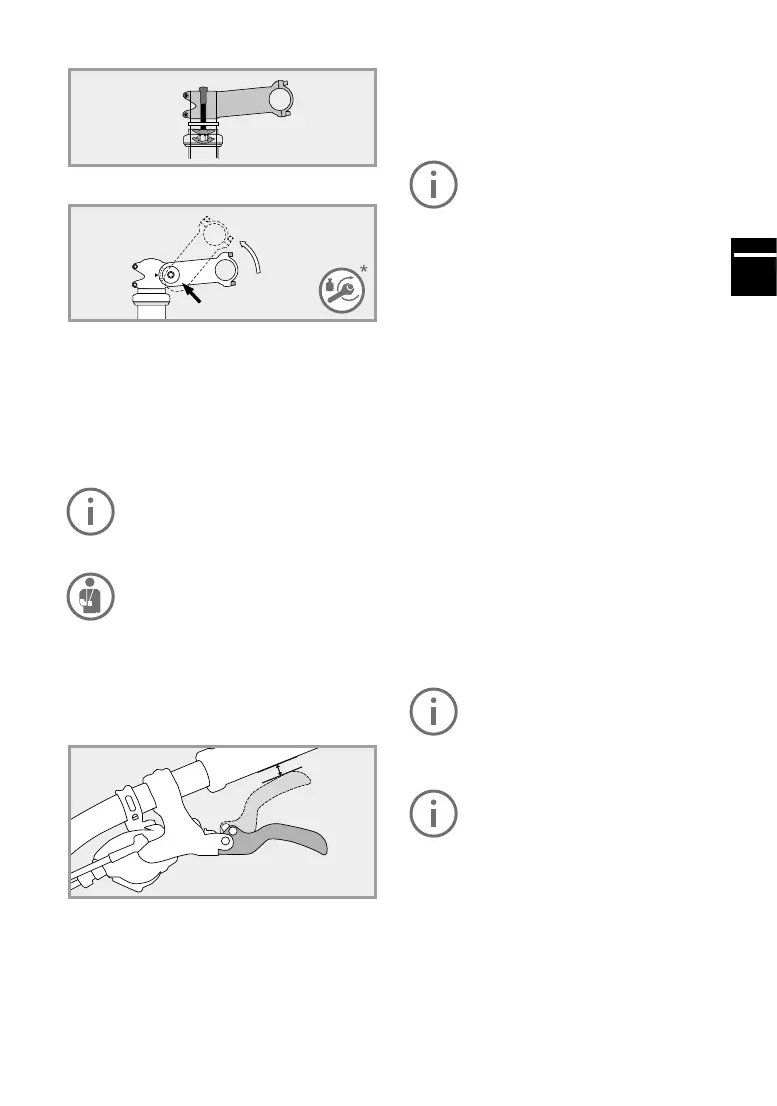

Adjustable stem
Fastening screw
over uneven ground, the action of the suspension
element must be noticeable but it must not be al-
lowed to be compressed all the way to the stop.
If the rider stands at the middle of the bicycle, the
suspensionelementshouldcompresstoapproxi-
mately 25% of the suspension travel.
Please note that the suspension may
need to be re-adjusted if you ride with
heavierloads,forexample duringacy-
cle tour.
If you have purchased a FLYER E-MTB with full
suspension, the rear fork of the frame is mobile
and a shock absorber provides suspension and
damping.
An air chamber aids suspension. The damping
that regulates the speed during compression and
extensionofthesuspension canbeadjustedon
the integrated shock absorbers.
Instructionsforadjustingthe suspension el-
ements
The suspension elements (the suspension forks
and rear fork damner) can be adjusted to your
weight and driving style and the terrain. When ad-
justing the suspension, you should always make
just one change at a time and make a note of it.
Thisway,youwillknowexactlyhoweachchange
a󰀨ectsthehandlingofthebicycle.
The description can be applied to both the sus-
pension forks and the rear damper element. If an
instruction only applies to one of the two com-
ments, this is indicated. This section describes
the basic adjustment of air spring elements.
Here,youcanadjusttwosettings:theexibilityof
the suspension and the rebound of the damping.
Ask a FLYER specialist retailer to show
you how to adjust the suspension ele-
ments correctly.
Flexibility
Thesuspensionelementsarettedwith
a lockout that can suppress rebound or
tilting as needed, e.g. on steep asphalt
ascents. The following adjustment steps
can only be performed when the lockout
is open.
Theexibilityis thepaththroughwhich thesus-
pension element is compressed when the rider
stands at the centre of the bicycle. It tensions the
suspension element and holds the rear wheel un-
der slight loads or if the ground is slightly uneven.
This increases grip and traction on rough terrain.
As a rule, the exibility is 25% of the total sus-
pension travel.
