2-3-6. MFR-2SDOGB
The MFR-2SDOGB is a 12G/3G-SDI output card. Its Gearbox function enables conversion
between 12G-SDI and Quad Link 3G-SDI signals, and between 2SI and SQD signals.
The following listed SDI signals can be output.
 12G-SDI: Max. 2 outputs (If installed into Input 1-8: BNC 1D, 2D
If installed into Input 9-16: BNC 1A, 2A)
 3G-SDI: Max. 8 outputs
1
A
1
B
1
C
1
D
2
A
2
B
2
C
2
D
12G / 3G-SDI12G / 3G-SDI

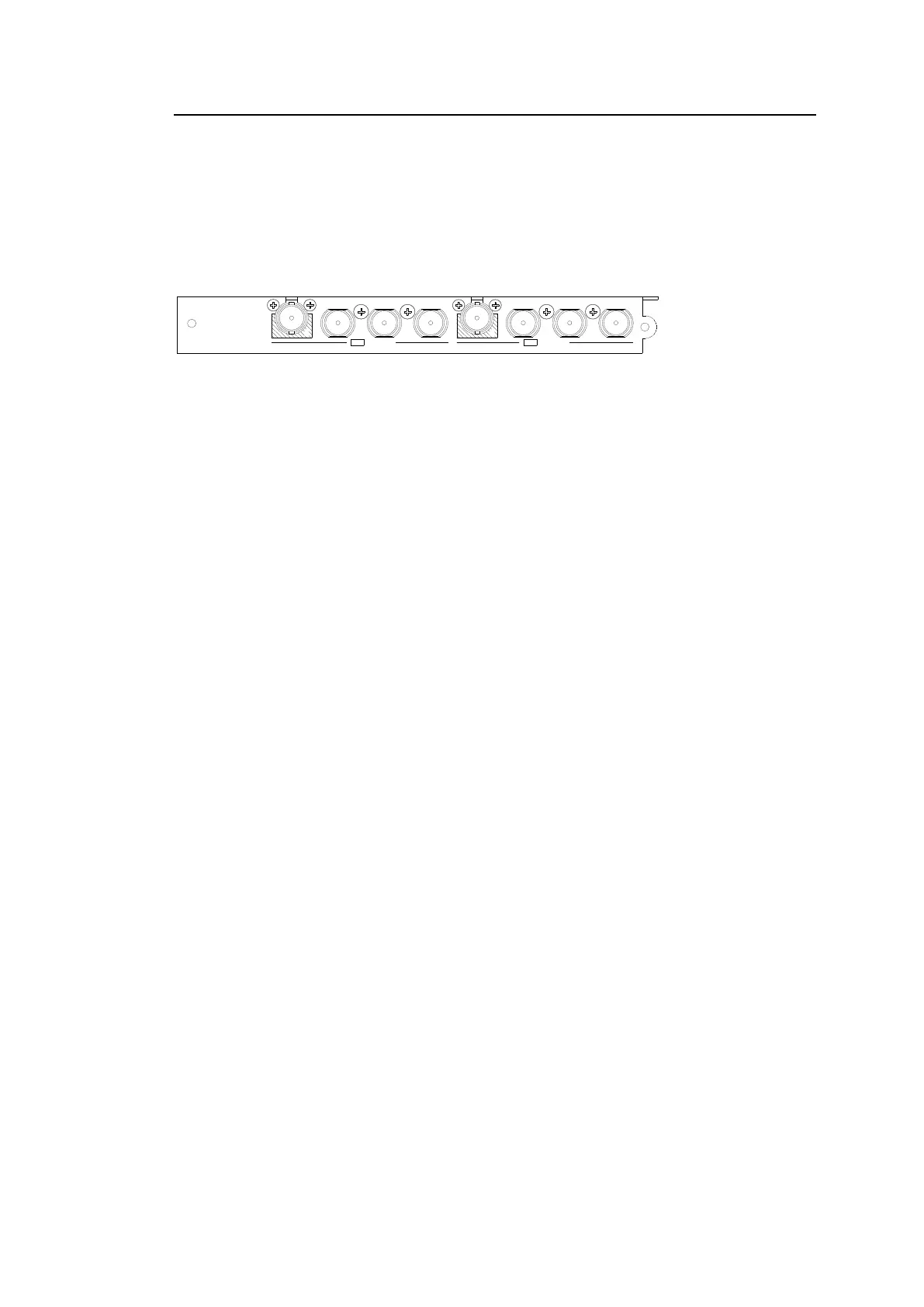

BNC x 8 Outputs (12G/3G-SDI)
Set up output signals in the Web-based Control Software as shown below.
 Gearbox settings
Open the [Web-based Control: (Main Unit Settings)－Gearbox Settings page].
This page allows you to specify input/ output signals to Gearbox, reference signal and delay.
 Destination Name
Open the [Web-based Control: (Router System Settings)－Destination Name page.].
This page allows you to change destination names displayed on Remote Controllers or other
devices.
 Source Assignment
Open the [Web-based Control: (Router System Settings)－Destination Assignment page].
This page allows you to assign physical outputs to logical output channels.
