3-4. Switcher's AUX Crosspoints Switching System
This system enables the following two features:
 Switches AUX crosspoints on a switcher using an MFR Series Remote Unit or serial
commands.
 Switches AUX crosspoints on a switcher as well as the corresponding crosspoints on the
MFR-6000, if the MFR-6000 provides video souces to the switcher.
 Supported switcher: HVS-390HS, HVS-100/110, HVS-2000, HVS-6000

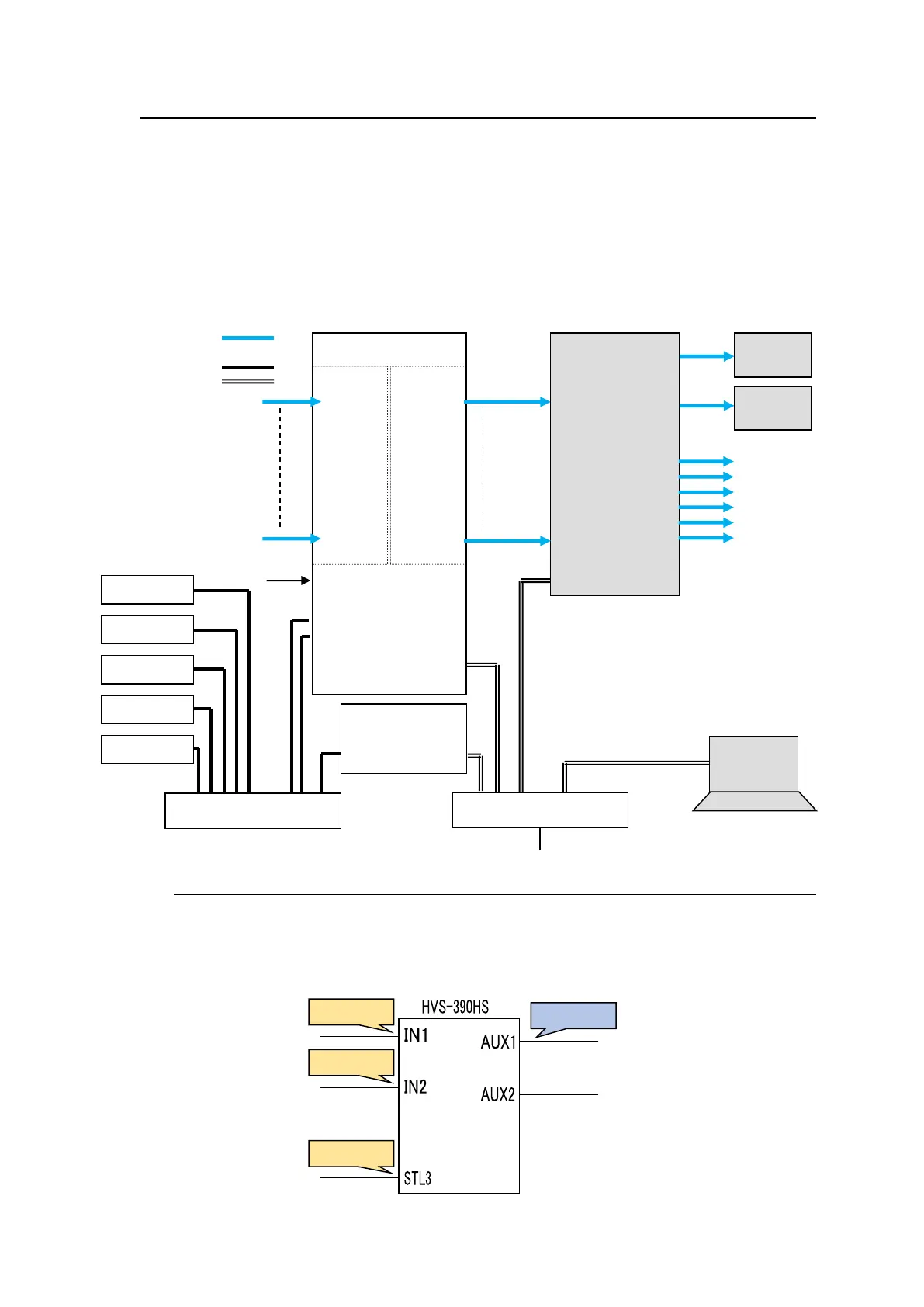

 System Example
3-4-1. Switching an AUX Bus Signal
Assume that the system is configured as shown below:
AUX1 on the switcher is assigned to DST 201 (Level 1) on the MFR-6000.
IN1-8 on the switcher are assigned to SRC201-208 on the MFR-6000 and STL (Still) 3 is
assigned to SRC209.
DST201
SRC201
SRC202
SRC209
|
|
|
VIDEO(SDI)
LAN (MFR-LAN)
LAN (PC LAN)
MFR-LAN (CPU1)
MFR-LAN (CPU2)
PC-LAN
SDI
Signals
SDI
Signals
REF IN
MFR-6000
MFR-
9SDI12G
IN1
|
|
|
I
|
|
I
|
IN144
MFR-
9SDO12G
OUT1
|
|
|
I
|
I
|
|
OUT144
PC
MFR Web Control
Video Switcher
(HVS-390HS)
PGM
Monitor
PRV
Monitor
SDI
SDI
MFR-16RU
MFR-16RUD
MFR-40RU
MFR-18RU
MFR-39RU
Ethernet Hub (MFR-LAN)
Ethernet Hub (PC-LAN)
LAN
BB
AUX1
AUX2
AUX3
AUX4
AUX5
AUX6
SDI
PC-LAN
MFR-LAN
MFR-TALM
