3-4-2. Synchronous Crosspoints Switching
1) to 3) Configure the system as described in Sec. 3-4-1.
4) Configure channel link settings:
Open the Re-Entry page and set the menu page as shown below.
Output
Input
MFR Dst 112
HVS-390HS IN9 > AUX 1
MFR Dst 113
HVS-390HS IN10 > AUX 2
* Physical destination channels must be assigned to these logical destination channels on
the MFR-6000.
5) Assign logical source and destination channels on the MFR-6000 to input channels and
AUX buses on the switcher.
<AUX bus assignments>
a) Open the Destination Assignment page.
b) Select HVS(AUX) under Select Table.
c) Set Level to 1.
d) Assign AUX1 to DST 201.
e) Assign AUX2 to DST 202.
<Input channel assignments>
a) Open the Source Assignment page.
b) Select HVS(AUX) under Select Table.
c) Set Level to 1.
d) Assign IN1 to SRC 201.
After above setup settings are complete:
 If SRC 201 is selected for DST 201 on the MFR-6000, IN1 is selected for AUX1 on the
switcher.
 If SRC 3 is selected for DST 201 on the MFR-6000, IN9 is selected for AUX1 on the
switcher and SRC 3 is also selected for DST 112 on the MFR-6000.
 If IN9 is selected for AUX1 on the switcher, a source assigned to DST 112 is selected
for DST 201 on the MFR-6000.
 If IN10 is selected for AUX2 on the switcher, a source assigned to DST 113 is selected
for DST 202 on the MFR-6000.
IMPORTANT
* Note that destination channels to which physical channels are assigned (DST 112 and DST
113 in the example above) on the MFR-6000 cannot select source channels to which the
switcher input channels are assigned (SRC 201 in the example above).
* If an AUX crosspoint is switched on the switcher by the Synchronous Crosspoints switching
and it is not listed in Re-Entry page, the AUX crosspoint returns to the previous state.

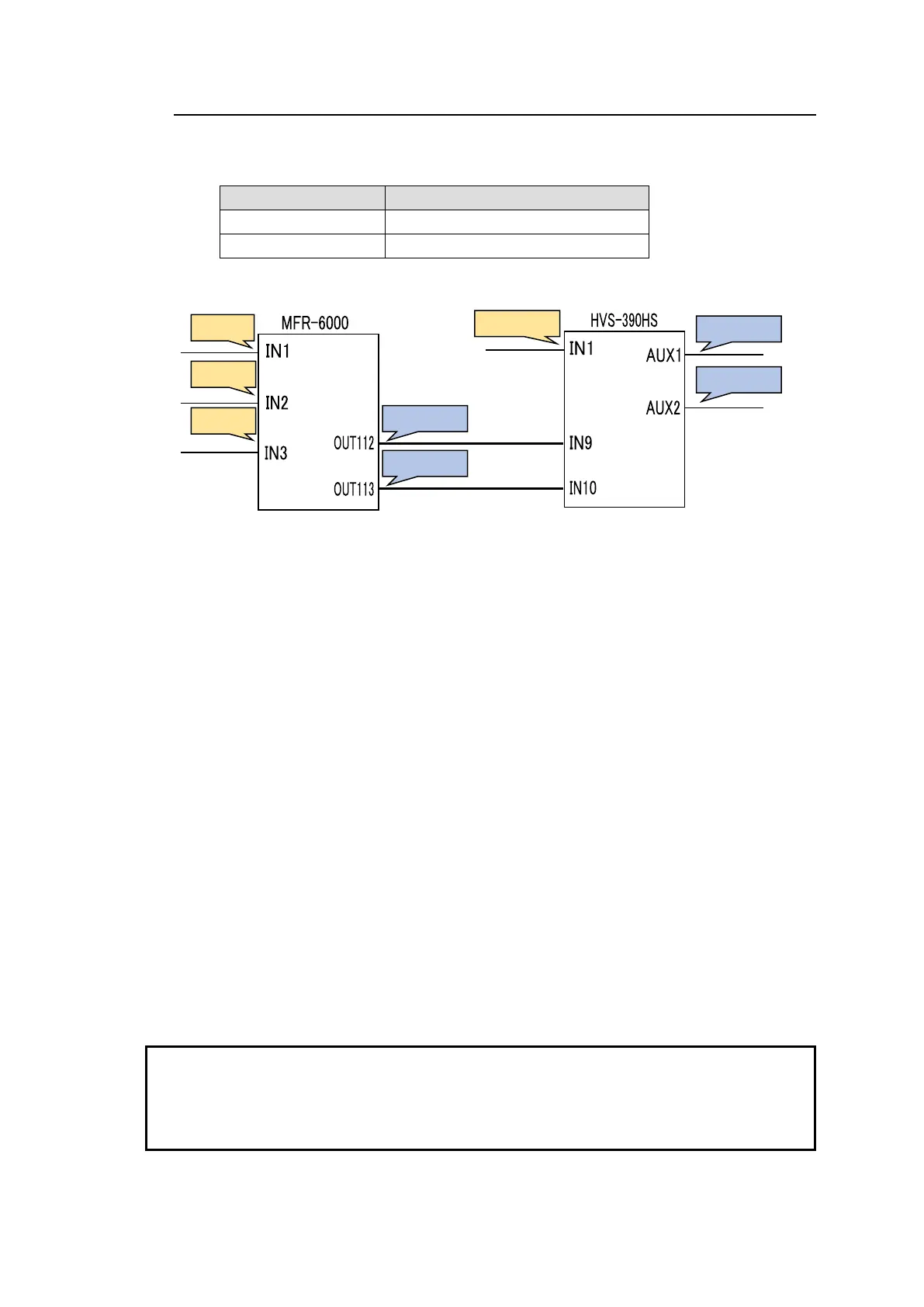

DST113
SRC1
SRC2
SRC3
DST201
SRC201
DST202
DST112
