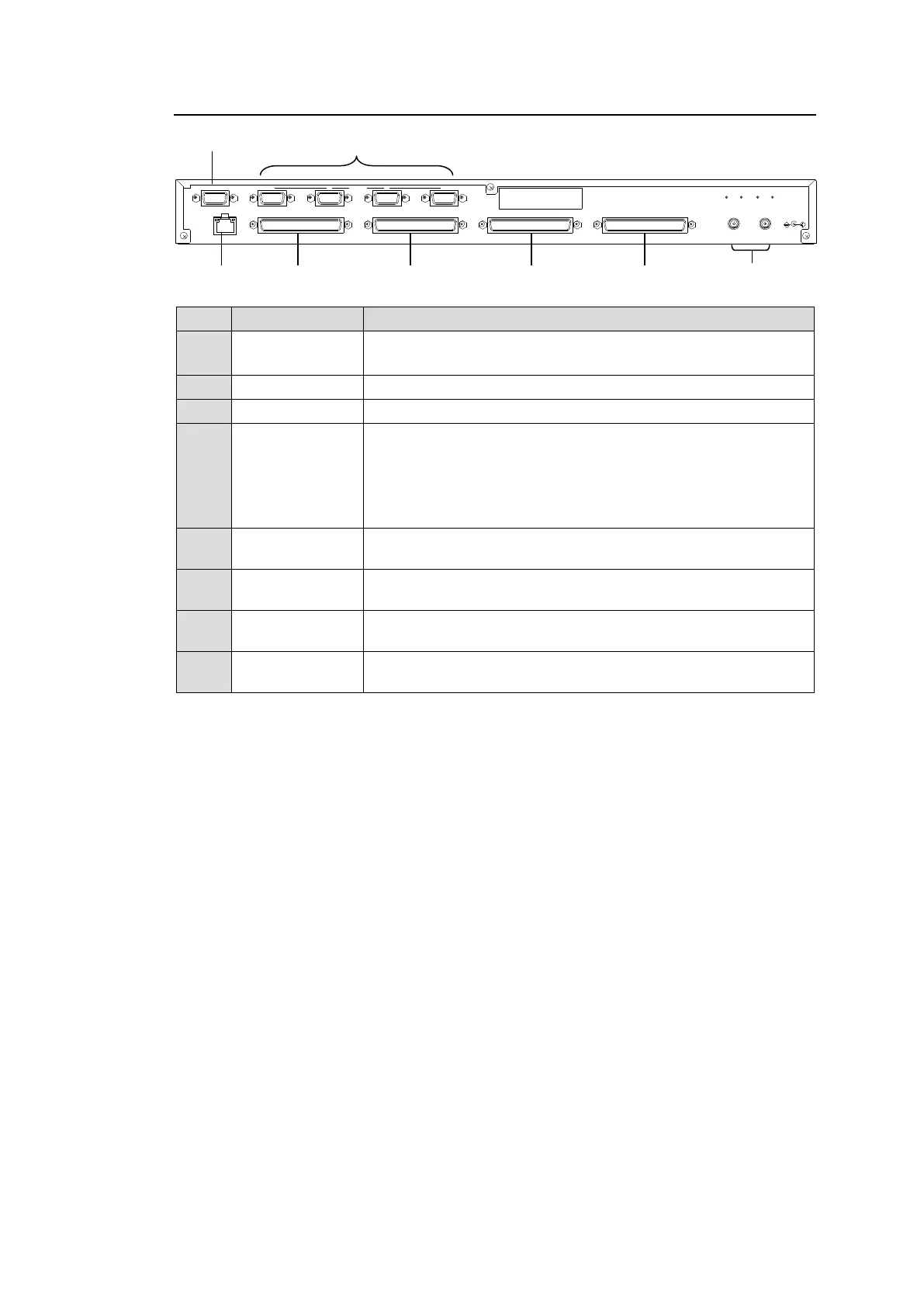

FOR-A MFR-6000 - Rear Panel

22
2-4-2. Rear Panel
No.
Item
Description
A
MFR-LAN
*1
Used to connect the MFR main unit
Ethernet port (10/100 BASE-TX)
B
SERVICE
Used for maintenance only. Do not use.
C
DC12V IN 1, 2
Used to supply 12V DC power.
D
SERIAL1 - 4
Used for serial interface control. The default setting is RS-232C.
RS-422 is also selectable using switches on the internal card.
► See Sec. 2-4-4. “Card Switches
Pin assignments are the same as those on the MFR main unit.
► See Sec. 2-2-1. “Interfaces.”
E
GPI 1
(Port no: 1)
Used for GPI input / output connections.
(32 total assignable inputs and outputs)
F
GPI 2
(Port no: 2)
Used for GPI input / output connections.
(32 total assignable inputs and outputs)
G
GPI 3
(Port no: 3)
Used for GPI input / output connections.
(32 total assignable inputs and outputs)
H
GPI 4
(Port no: 4)
Used for GPI input / output connections.
(32 total assignable inputs and outputs)
*1
The MFR-LAN connector may be labeled 10/100BASE-T on the previous model.
