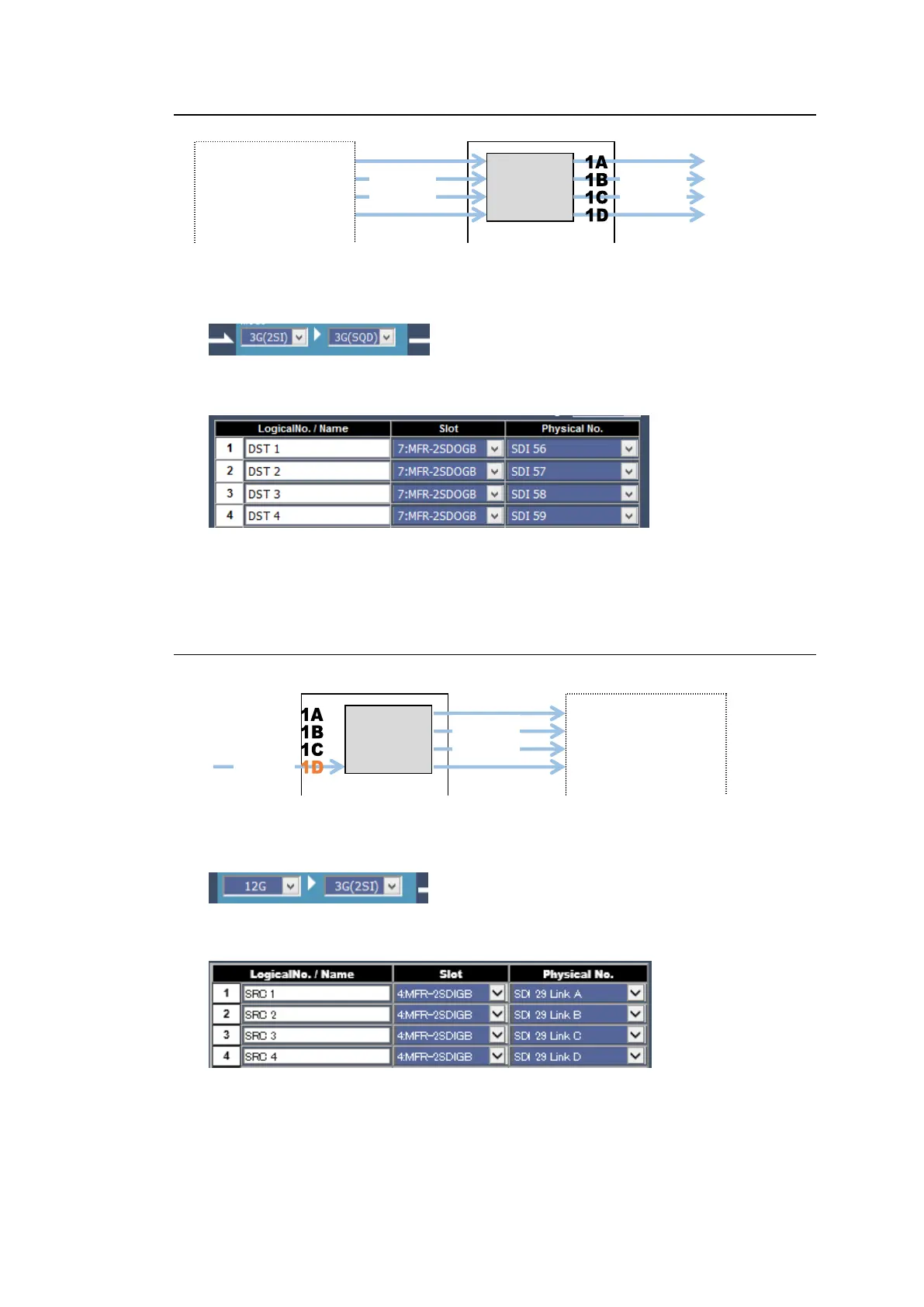

5-3-2. Converting 2SI to SQD Output (MFR-2SDOGB)
1. Open the Gearbox Settings page in the WebGUI and select signal formats under
From and To as shown below for a Gearbox in the MFR-2SDOGB card block. (This
example sets Gearbox 1 on the Slot 15 card.)
2. Open the Destination Assignment page in the Web GUI and assign the physical
channels (SDI 56-59) to logical channels (DST 1-4).
3. Use a remote control unit or the Crosspoint page in the WebGUI to assign input
channels to DST1-4.
5-3-3. Converting 12G-SDI Input to 3G-SDI 2SI (MFR-2SDIGB)
1. Open the Gearbox Settings page in the WebGUI and select signal formats under
From and To as shown below for a Gearbox in the MFR-2SDIGB card block. (This
example sets Gearbox 1 on the Slot 4 card.)
2. Open the Source Assignment page in the WebGUI and assign the physical
channels (SDI 29 Link A to D) to logical channels (SRC 1-4).
3. Use a remote control unit or the Crosspoint page in the WebGUI to perform the crosspoint
switches.
