5. Gearbox Feature (MFR-2SDIGB / 2SDOGB)
Optional MFR-2SDIGB/2SDOGB cards support Gearbox features, in which video signal conversion
between 12G-SDI and Quad Link 3G-SDI, and between 2SI and SQD are available.
 Gearbox Features
 Conversion between 12G-SDI and Quad Link 3G-SDI. (Including asynchronous input)
 Conversion between 2SI and SQD.
 AVDL (Automatic Variable Delay Line) clean switching after conversion.
Also allows Gearbox I/O delay selection. (Excluding 2SI / SQD conversion)
 Genlock or Line lock synchronization
 H/V ANC data pass-through

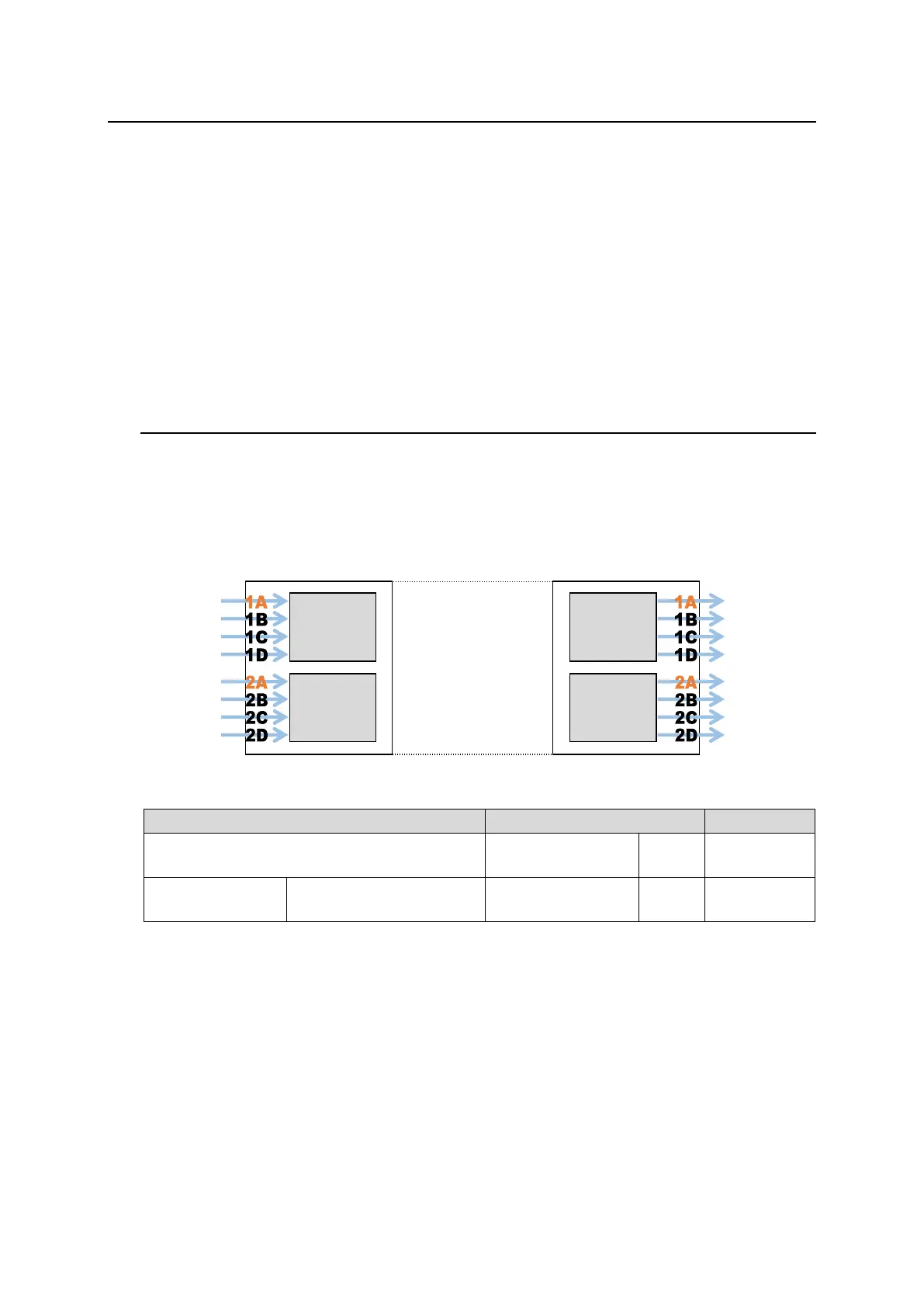

5-1. MFR-2SDIGB / 2SDOGB Cards
MFR-2SDIGB / 2SDOGB cards have two built-in Gearbox units that can respectively perform signal
conversions and output test patterns.
If card(s) are installed into Input 1-8/ Output 1-8, 1D and 2D are the ports for 12G-SDI signals.
Similarly, if card(s) are installed into Input 9-16/ Output 9-16, 1A and 2A are the ports for 12G-SDI
signals. When a 12G-SDI signal is input to a Gearbox, other connectors are disabled.
 Supported formats
Signal format;
Video format
Standard
12G-SDI
3840 x 2160/59.94p
3840 x 2160/50p
4:2:2
10-bit
SMPTE
ST2082-10
Quad Link 3G-SDI
(Level-A)
SQD (Square Division)
2SI (2-Sample Interleave)
3840 x 2160/59.94p
3840 x 2160/50p
4:2:2
10-bit
SMPTE
ST425-5
MFR-2SDIGB
12G/3G-SDI
3G-SDI
3G-SDI
3G-SDI
12G/3G-SDI
3G-SDI
3G-SDI
3G-SDI
MFR-2SDOGB
Gearbox 2
Gearbox 1
Gearbox 2
MFR-6000
routing
Gearbox 1
