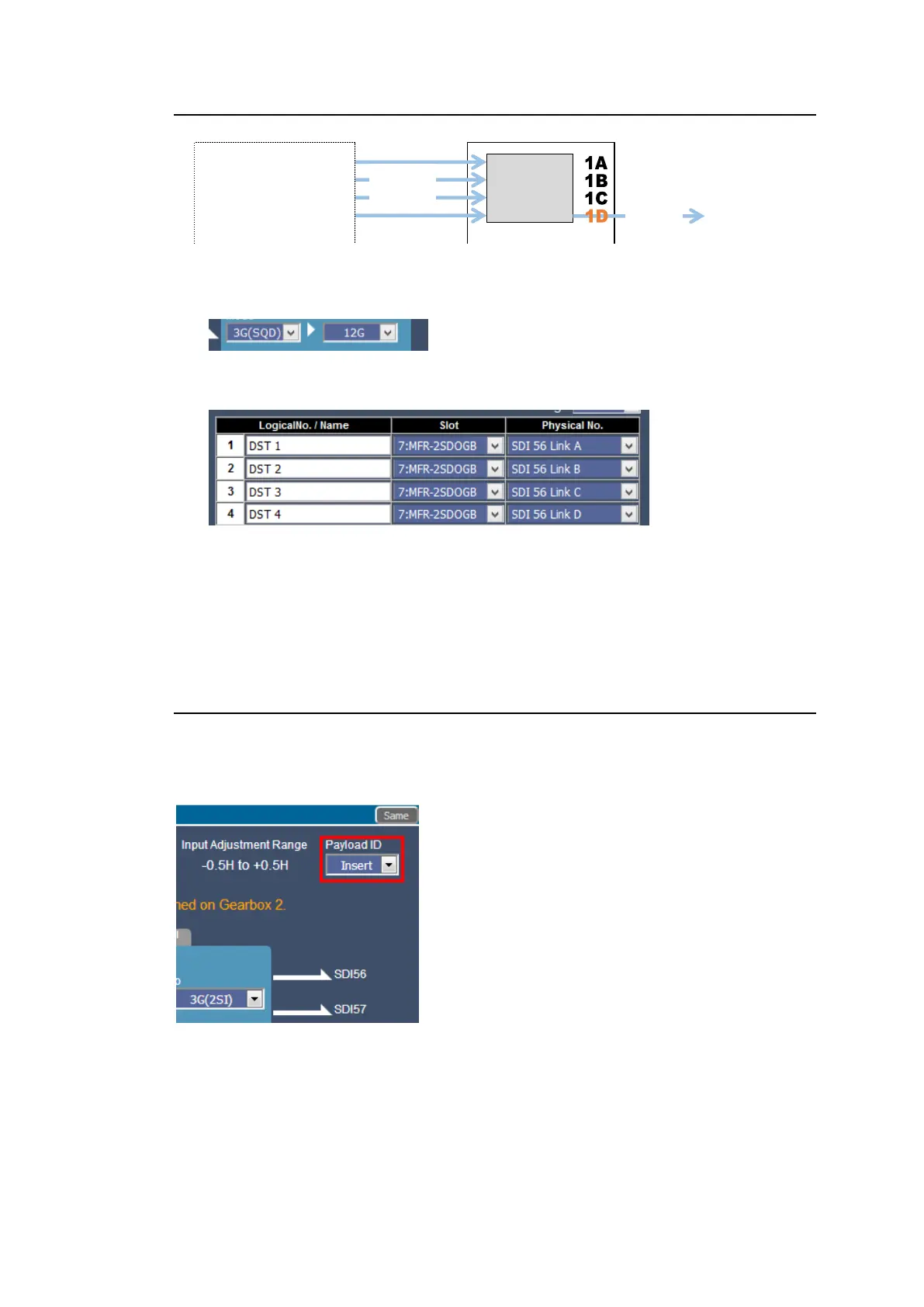

5-3-4. Converting 3G-SDI SQD to 12G-SDI (MFR-2SDOGB)
1. Open the Gearbox Settings page in the WebGUI and select signal formats under
From and To as shown below for a Gearbox in the MFR-2SDOGB card block. (This
example sets Gearbox 1 on the Slot 15 card.)
2. Open the Destination Assignment page in the WebGUI and assign the physical
channels (SDI 56 Link A to D) to logical channels (DST1-4).
3. Use a remote control unit or the Crosspoint page in the WebGUI to perform the crosspoint
switches.
* When converting 4K signals from 3G Quad-Link to 12G Single-Link, 3G-SDI Black or
12G-SDI Link 1 are selectable for remaining 3 SDI output signals.
5-3-5. Payload ID
Adding Payload ID information to Output Signals.
Select Payload ID information source for output signals.
Insert: Data created for output signals.
Through: Data embedded to input signals.
