Franke Evolution User Manual

_____________________________________________________________________________________
TD-102872.docx 1

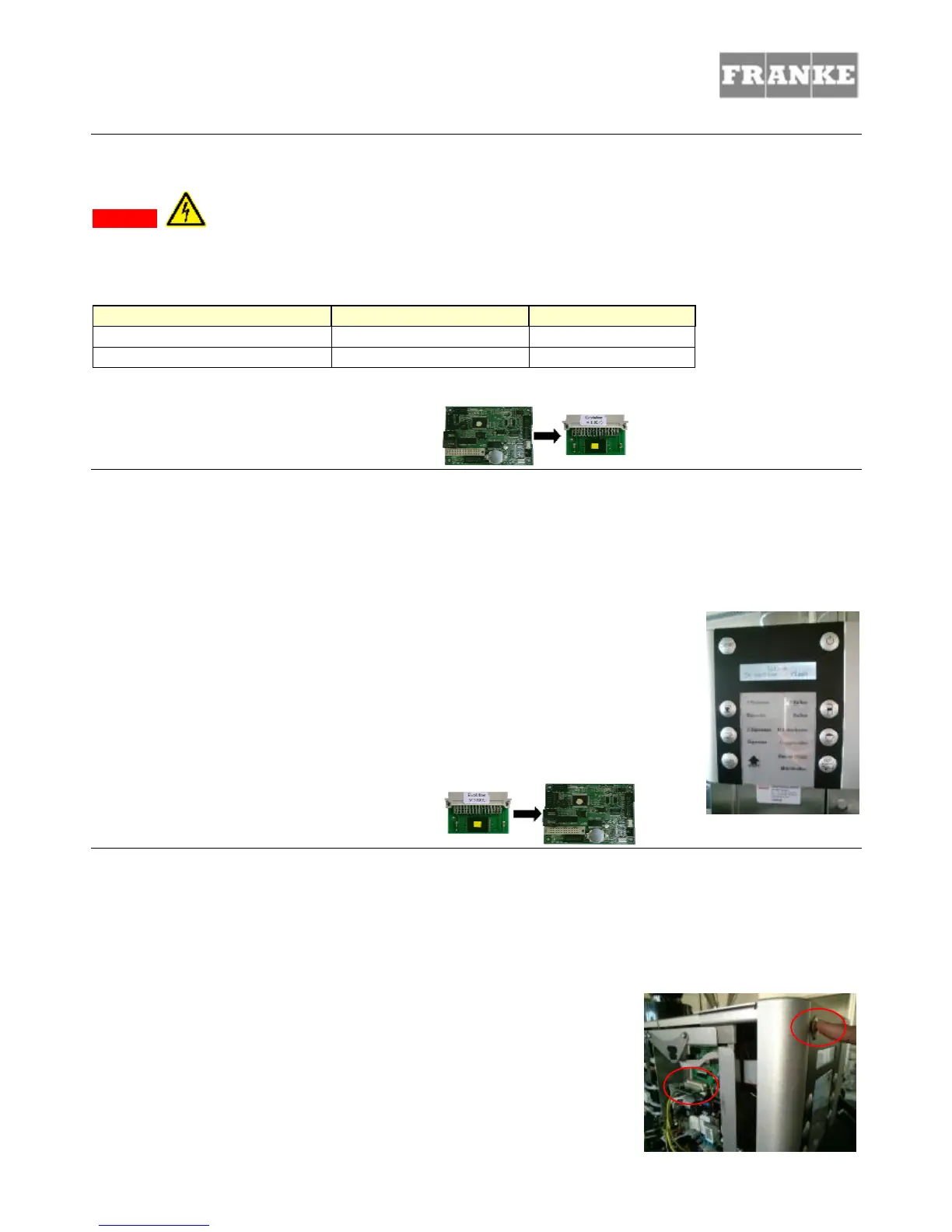

Evolution software update using the Flash-Rom
Manual to up- & download the Evolution Software without Service Tool 2.
Warning!
• Electric shock if live parts are touched.
• Adhere strictly to the instructions in the manual.
• Pay attention and work carefully.
Part description Item no. Remark
CPU-Print 1T 311 190 CPU
Flash-Rom Evolution 1.XX 1T 311 389 Flash-Rom module
1.) Machine (CPU) → Flash-Rom
a) Turn off the Evolution
b) Remove the left side panel
c) Switch on the Evolution and insert the Install-card
d) Select in Menu 1 Set-up the parameter 34 machine>>flash and press the Clean-button
e) Insert the Flash-Rom and press the Clean-Button
f) The display shows the software version X extern (Software-Flash) & I intern (Software-CPU);
check it and press the Clean-button
g) Display shows: writing to module / …please wait…
h) Display shows afterwards: Done, pull Module! / Exit or Enter (new)
i) Remove the Evolution Flash-Rom
j) If requested, upload a second Flash Rom (follow step e).
k) Mount the left side panel
l) Pull out the Install card
2.) Flash-Rom → Machine (CPU)
a) Disconnect the machine from the power supply
b) Remove the left side panel
c) Insert the Flash-Rom
d) Connect the power supply
m) The display shows the software version X extern (Software-Flash) & I intern (Software-CPU);
check it and press the Clean-button
e) The message module>>machine appears; press the Clean-button
f) The machine uploads the Software from the Flash-Rom to the CPU
g) The display shows the software version X extern & I intern
h) Check the software version
i) Disconnect the machine from the power supply
j) Mount the left side panel
k) Connect the power supply

Franke Evolution Specifications

General

Power Supply	220-240 V
Water Supply	Tank
Water Connection	No
Material	Stainless Steel
Programs	Espresso, Coffee, Cappuccino, Latte Macchiato, Hot Water
Display	Yes
Milk System	Integrated
