Franke Kaffeemaschinen AG
TD-100597.doc 19 / 20
6 Accounting
For vending operations the chocolate dispenser must be connected to the coffee machine via the
Accounting board (Art.-No. 1T 311 445).

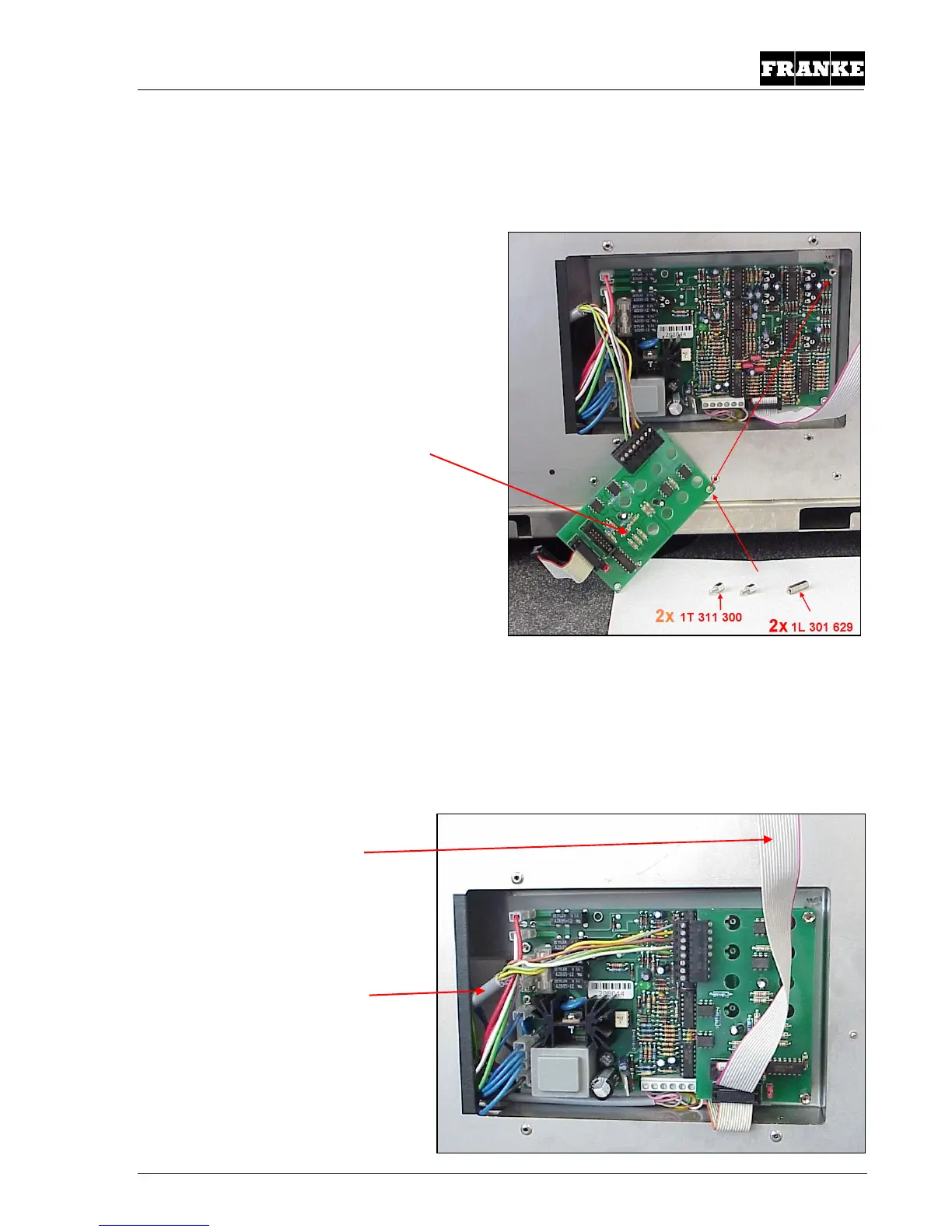

The accounting board is mounted above the
main board and connected to it as illustrated
The accounting board must be plugged in at the position where the control printed circuit board cable is
normally connected. The control circuit board cable is then plugged into the accounting module.
The following cables must be used for connecting the coffee machine:
Evolution: 1T 311 466 (see also drawing on page 14)
Sinfonia: 1Y 320 532 (see also drawing on page 18)
Accounting board
1T 311 445
Cable to coffee
machines
Evolution cable
1T311466
Sinfonia cable
1Y320532
Cable to chocolate
dispenser control
printed circuit board
