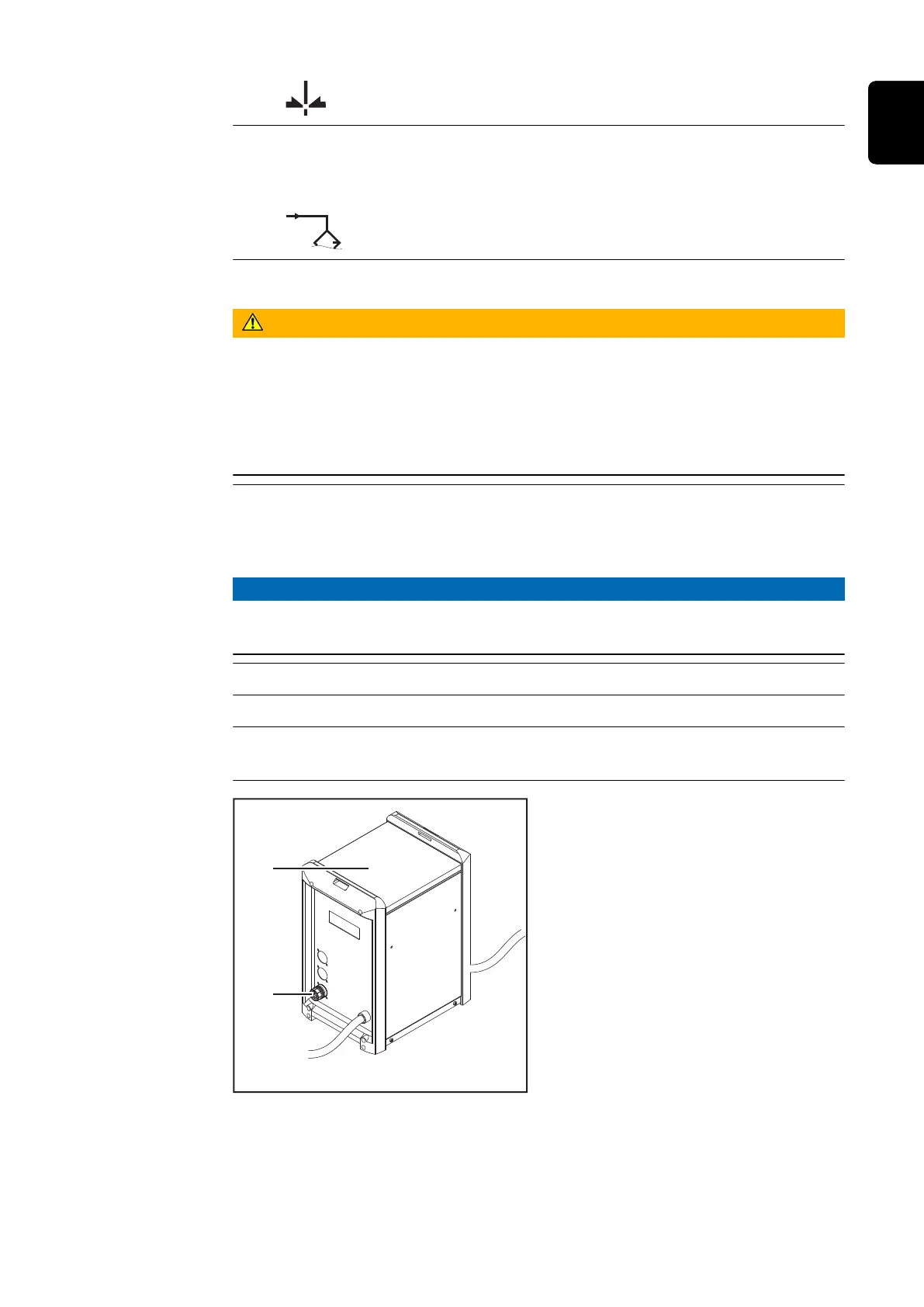

(8) Parting agent nebuliser connection
for connecting to the parting agent nebuliser; to supply the parting agent
nebuliser with compressed air
(9) Interconnecting hosepack with strain-relief device
WARNING!
Risk of serious injury and damage from electric shock.
Once the ready-to-clean indicator lights up, the interconnecting hosepack must
not be disconnected from the base unit.
▶
Before disconnecting the interconnecting hosepack:
▶
Disconnect the base unit power supply
▶
Disconnect the base unit compressed air supply
(10) Cleaning unit connection socket
The connection socket is located on the base unit and is used to connect
the cleaning unit interconnecting hosepack
NOTE!
Once the interconnecting hosepack is connected, turn the safety bow (11) to
prevent the interconnecting hosepack being unintentionally disconnected.
(11) Safety bow
(12) Base unit
(13) Standard I/O connection socket (X1)
for connecting the base unit to the robot control
35
EN
