Locking/unlock-
ing the fill-level
control sensor
10 s
10 s
NOTE!
It is possible to lock the fill-level con-
trol sensor to prevent it from being
adjusted accidentally.

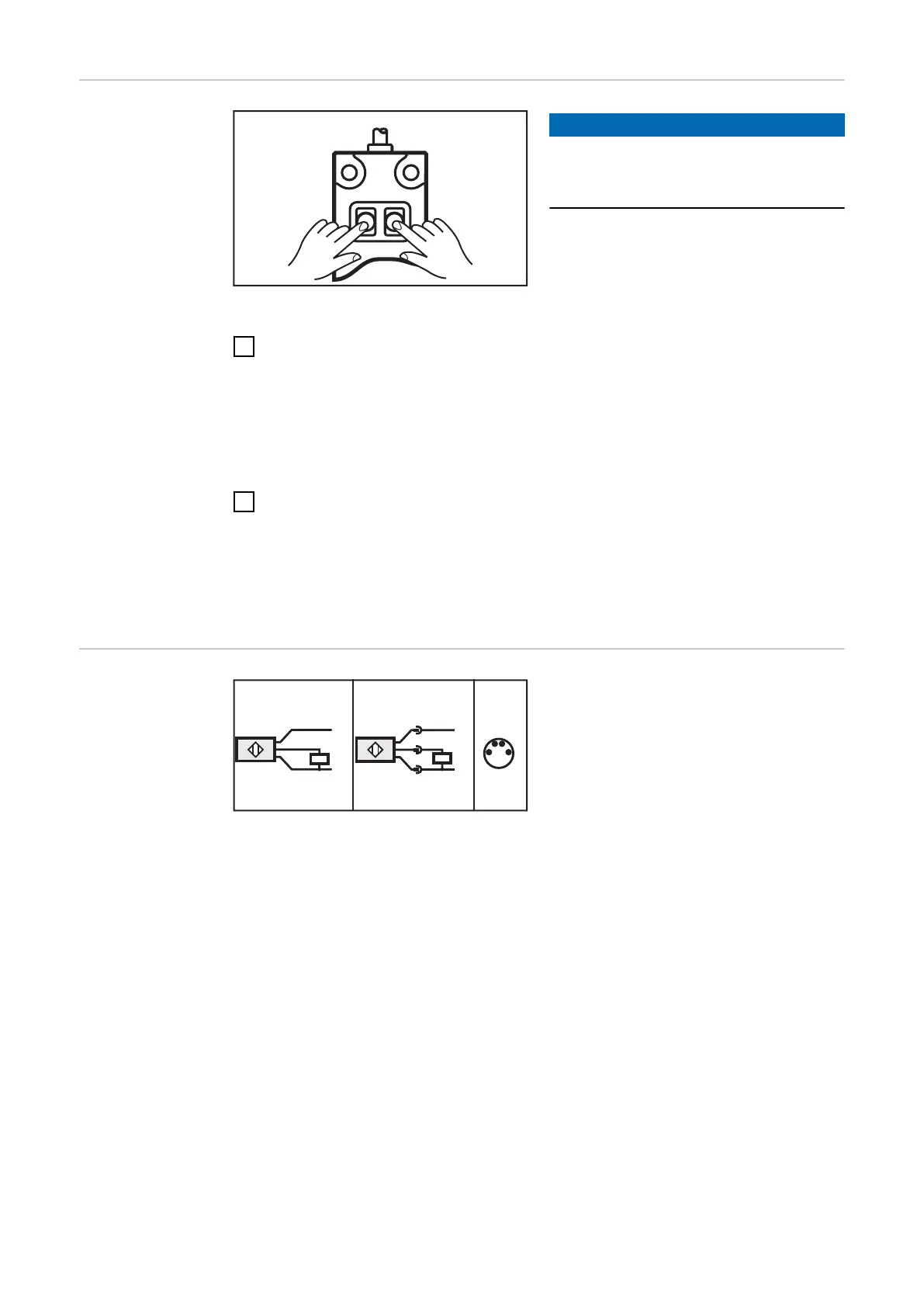

Locking the fill-level control sensor:
1
Simultaneously press the "OUT OFF" and "OUT ON" buttons for at least 10
seconds
-
The LED status changes briefly
-
if the LED lights up when locking, it will go out briefly after locking
-
if the LED does not light up when locking, it will come on briefly after
locking
Unlocking the fill-level control sensor:
1
Simultaneously press the "OUT OFF" and "OUT ON" buttons for at least 10
seconds
-
The LED status changes briefly
-
if the LED lights up when unlocking, it will go out briefly after unlock-
ing
-
if the LED does not light up when unlocking, it will come on briefly
after unlocking
Electrical con-
nection
1
1
2
3
3
4
4
1
3
4
L-
L+
L-
L+
Wire colours:
1. brown
3. blue
4. black
