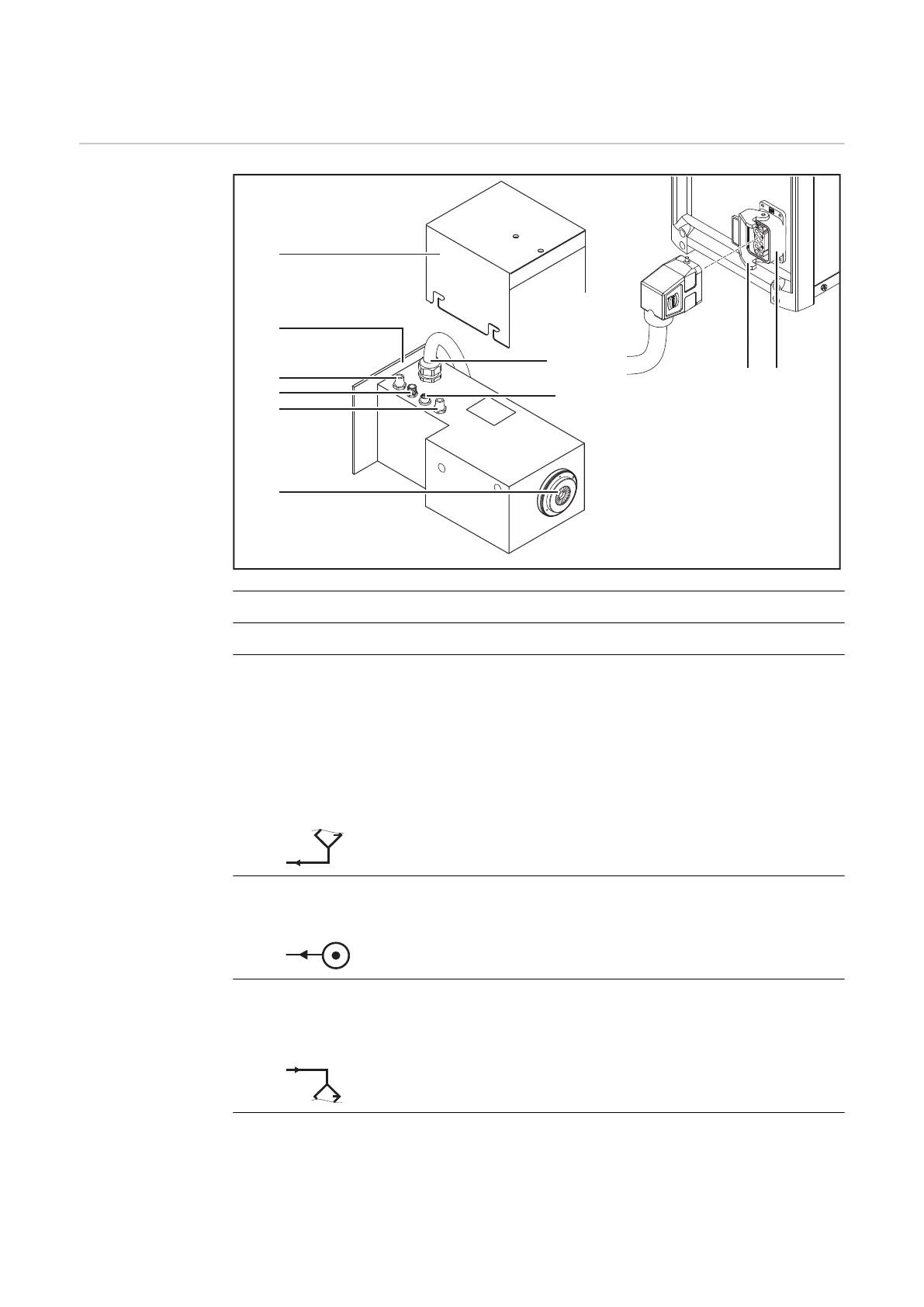

Base unit and cleaning unit P.
Base unit and
cleaning unit P.
(9)(10)
(3)
(1)
(2)
(4)
(5)
(6)
(8)
(7)
(1) Spatter tray for welding residues
(2) Cleaning unit P.
(3) Spray device connection
for connecting to the parting agent nebuliser; for spraying the com-
pressed air/parting agent mixture into the cleaning opening
If a parting agent nebuliser is not used, connect parting agent nebuliser
connection (5) to spray device connection (3). Use the supplied com-
pressed air connecting hose for this purpose.
(4) Compressed air connection
for supplying the cleaning device with compressed air
(5) Parting agent nebuliser connection
for connecting to the parting agent nebuliser; to supply the parting agent
nebuliser with compressed air
(6) Cleaning opening with internal parting-agent injection nozzle and brush
seal
for cleaning the gas nozzle and the inside of the welding torch
for coating the gas nozzle and welding torch interior with parting agent
