"Button"
-
The function of the "Pause/Start" button can be simulated by means of an
external button.
Normal
-
Start ON:
Charging starts when an external switch is closed and a battery is detected
or when the charging plug is connected by closing the auxiliary contacts and
a battery is detected.
-
Start OFF:
Charging starts when a battery is connected.
-
Stop ON:
Charging is interrupted when an external switch is opened
or when the charging plug is disconnected by opening the auxiliary contacts.
-
Stop OFF:
The opening of an external switch or the auxiliary contacts is ignored.
“Contact detection”
-
ON:
If a battery is connected when "Start ON" is set and the external start/stop
contact is not closed, the status message (16) "External start/stop is not
closed" appears.
If charging has been started when "Stop ON" is set, the external start/stop
contact is opened and the battery is not fully charged, and the status mes-
sage (16) "External start/stop is not closed" appears.
-
OFF:
Contact detection is not executed.
“Refill indicator”
The refill indicator is activated as soon as it is necessary to add distilled water to
the battery. The time of the refill request can be defined as follows:
Every x-th week and weekday
-
e.g. refill water every 2nd week on Friday
When "OFF" of set, the refill request does not have to be confirmed.

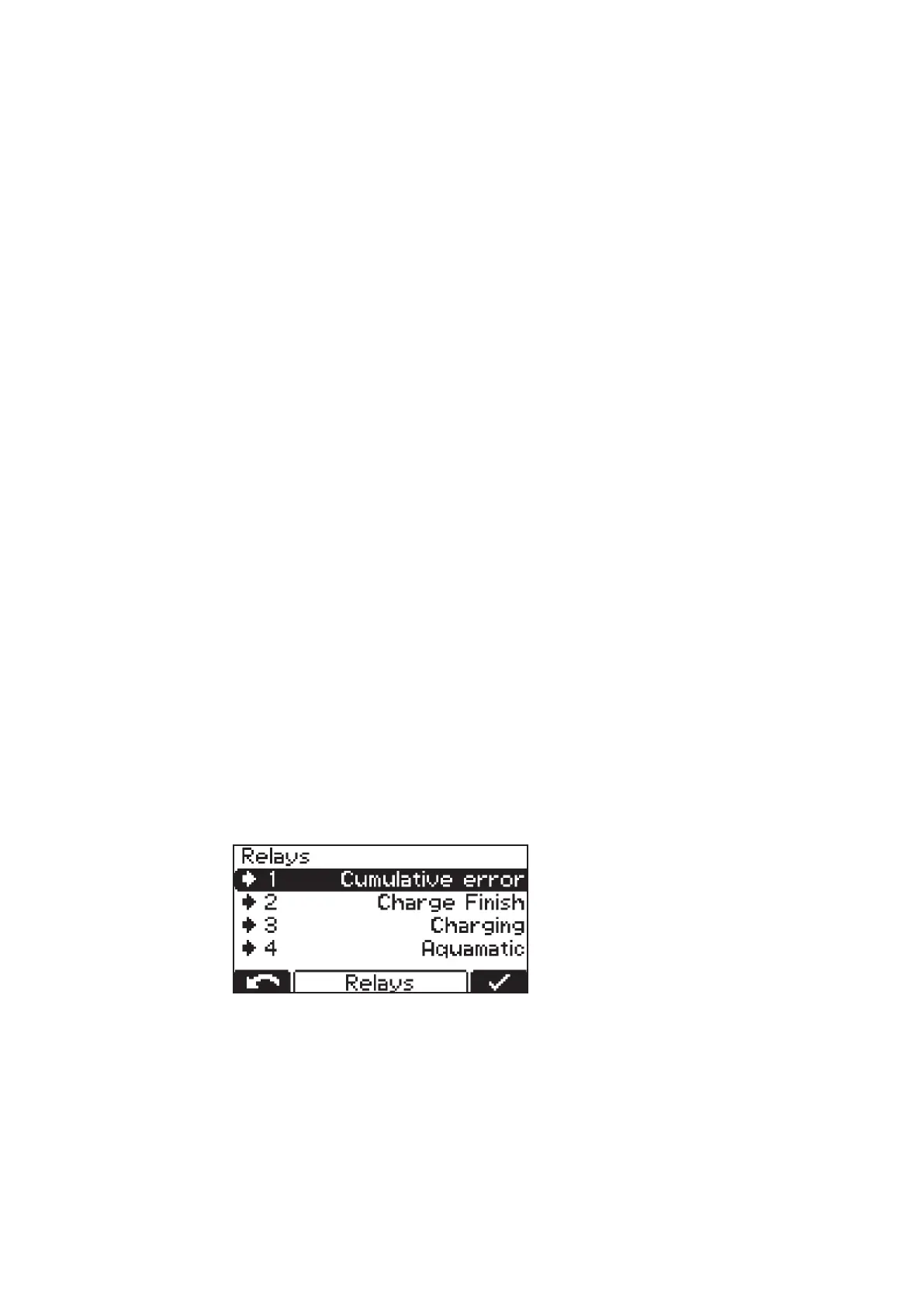

"Relays"
Under Relays, one of the following functionalities can be set for each of the 4
terminals, viewed from left to right:
Aquamatic
-
Signal, e.g. for actuating a solenoid valve
-
"Standard" program with settings pre-configured at the factory
-
"User" program with user-defined setting options
-
For more information on Aquamatic, see the "Aquamatic" section of the "Op-
tions" chapter.
"Charging"
