Power to the battery: 2500 W
Power consumed (AC) by inverter: 1500 W
Energy fed into the public grid: 0 W
TARGET: 0W
0 W
500 W
2000 W
1000 W
2500 W
1500 W

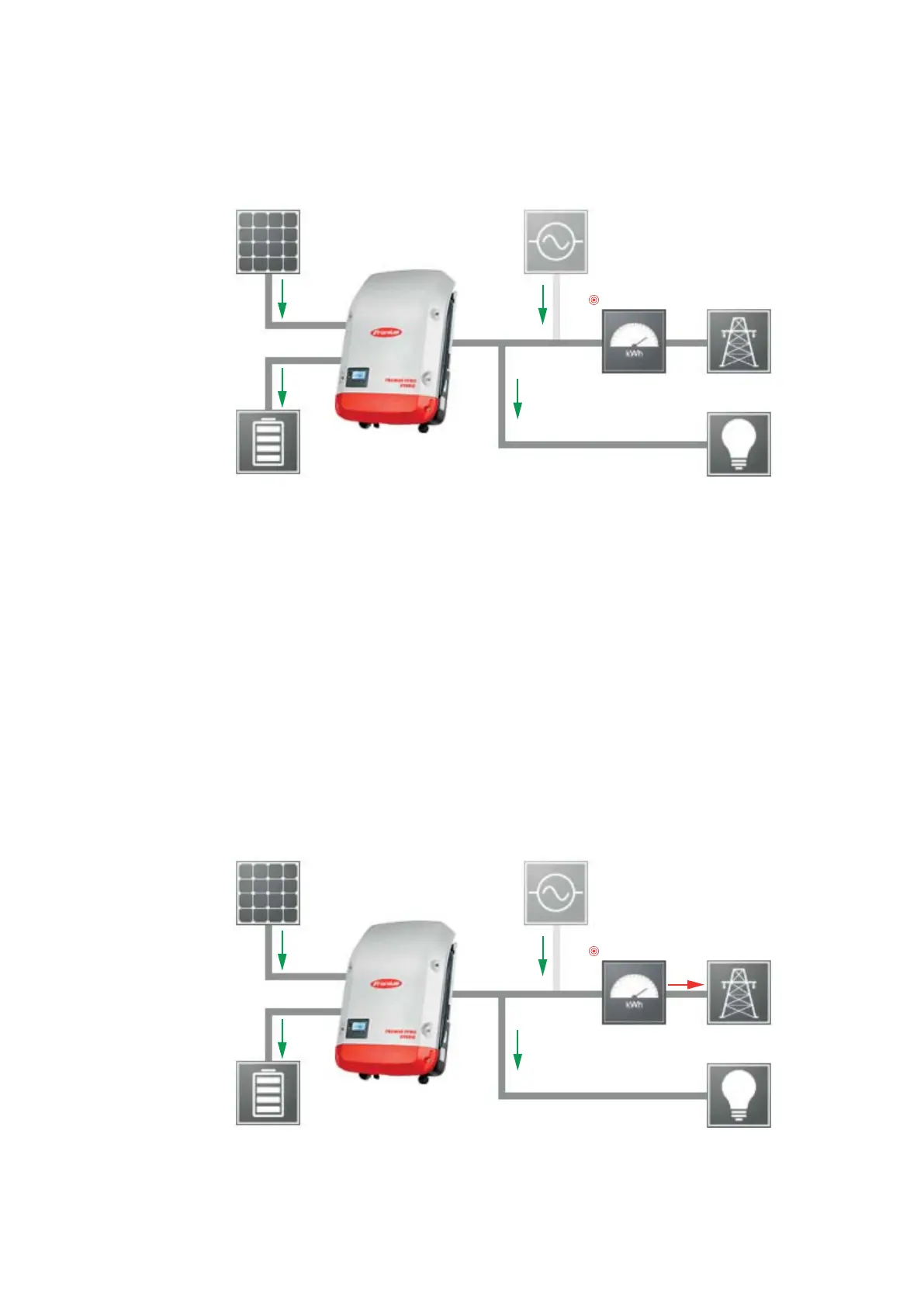

Example involving battery system plus a second producer within the home (with
AC max. limiting)
PV system to Fronius Symo Hybrid: 1000 W
Second producer in home network: 2000 W
Household consumption: 500 W
Target value set at feed-in point: 0 W
Max. AC power consumption limited to: 1000 W
Power to the battery: 2000 W
Power consumed (AC) by inverter: 1000 W
Energy fed into the public grid: 500 W
TARGET: 0W
500 W
500 W
2000 W
1000 W
2000 W
1000 W
AC MAX: 1000 W
104
