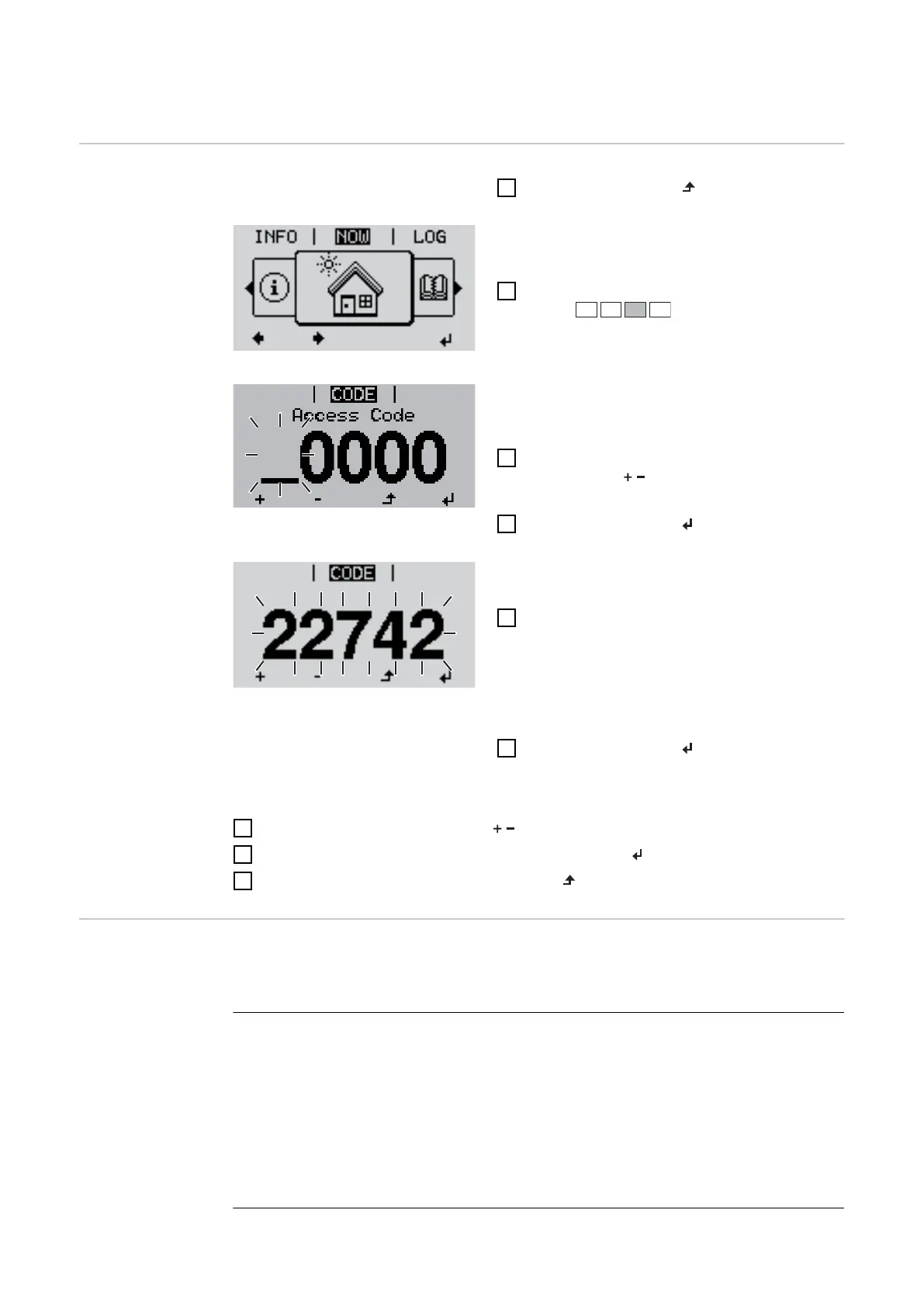

The Basic menu
Accessing the
Basic menu
1
Press the "Menu" key
The menu level appears.
2
Press the unassigned "Menu / Esc" key
5 times
"Access Code" is displayed in the "CODE"
menu; the first digit starts flashing.
3
Enter the code 22742: Use the "Plus" and
"Minus" keys to select a value for the
first digit of the code
4
Press the "Enter" key
The second digit flashes.
5
Repeat steps 3 and 4 for the second, third,
fourth and fifth digits of the access code
until...
the selected code starts flashing.
6
Press the "Enter" key
The Basic menu appears.
7
Use the "Plus" and "Minus" keys to select the desired entry
8
Press the "Enter" key to open the desired menu item
9
Press the "Esc" key to exit the Basic menu
Items on the
Basic menu
The Basic menu is used to set the following parameters, which are important for
installing and operating the inverter:
MPP Tracker 1
- DC operating mode: MPP AUTO / FIX / MPP USER
• MPP AUTO: normal operating status; the inverter automatically searches for
the ideal operating point
• FIX: for entering a fixed DC voltage at which the inverter will operate
• MPP USER: for entering a lower MP voltage above which the inverter will
search for its ideal operating point
- Dynamic Peak Manager: ON / OFF
- Fixed voltage: for entering a fixed voltage (150 - 800 V)
- MPPT start voltage: for entering the start voltage (150 - 800 V)
