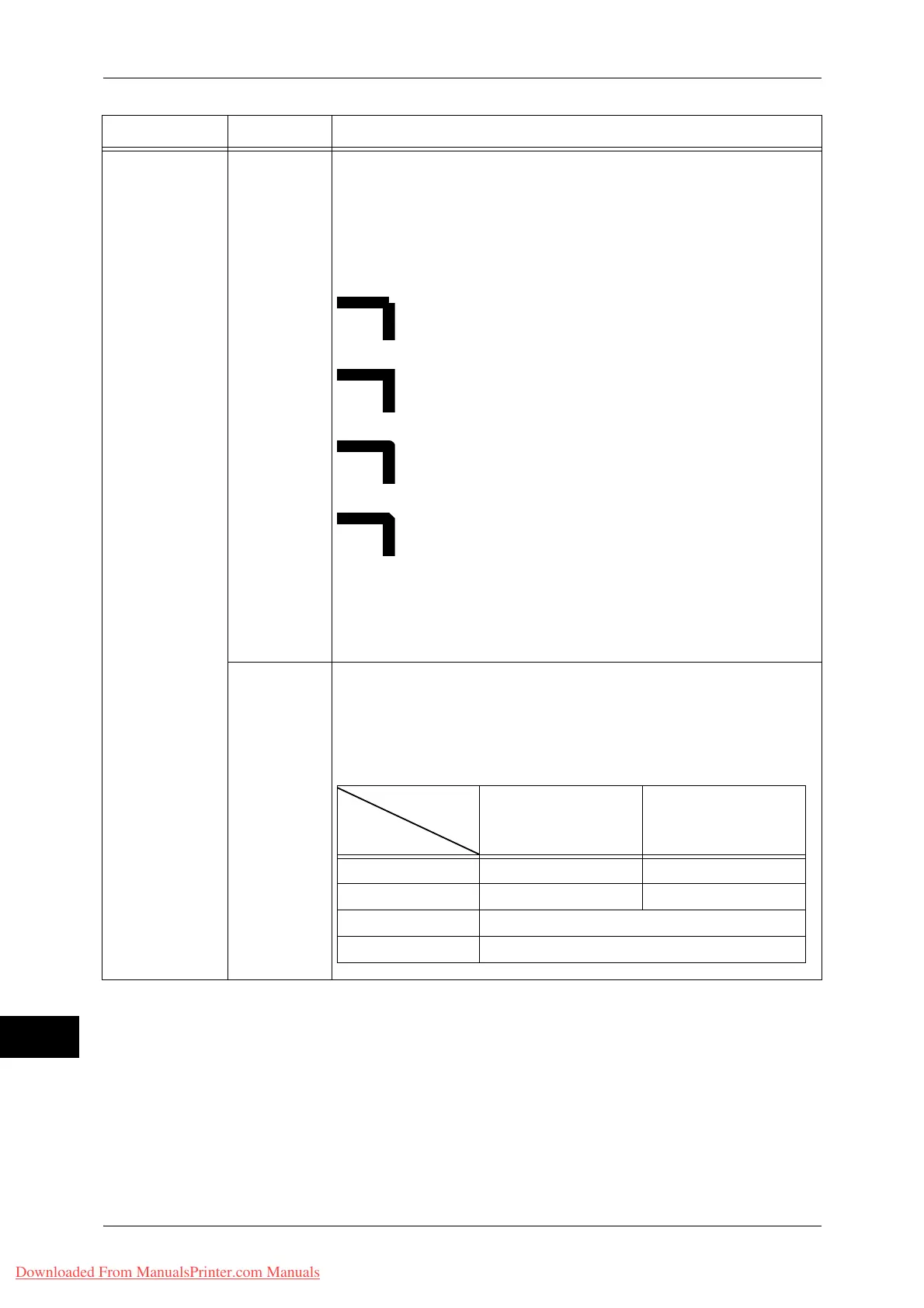

16 Appendix
562
Appendix
16
900-915 (Pen
intersects)
(No. 0-No.15)
Set the process for when pens’ lines intersect for 16 pens (No. 00 to 15).
No. 00 denotes Item No. 900.
[0] (Default) : None
[1] : Intersect
[2] : Round
[3] : Cut
[None]
[Intersect]
[Round]
[Cut]
Note • [None] is suitable for drafts because it takes shortest processing
time.
• If a symbol is set by symbol command, the link process is not
executed. The symbol command is an HP-GL/2 command for
specifying a symbol.
950-965 (Pen
density)
(No. 0-No.15)
Sets the density of the 16 pens (No. 00 to 15). You can set the color from
0 to 100% in 5% increments. The default value is [0] for No. 0, and [100]
for the others. No. 00 denotes Item No. 950.
[0] - [100] : 0 to 100 (density)
Note • The relationship between the pen attributes and fonts are as follows:
Parameter Item No. Value
Fonts
Pen attributes
Stroke Roman, Sans-Serif
Pen width Valid Invalid
Line end shape Valid Invalid
Link process Invalid
Pen density Valid
