Replacing Consumables
67
Maintenance
3

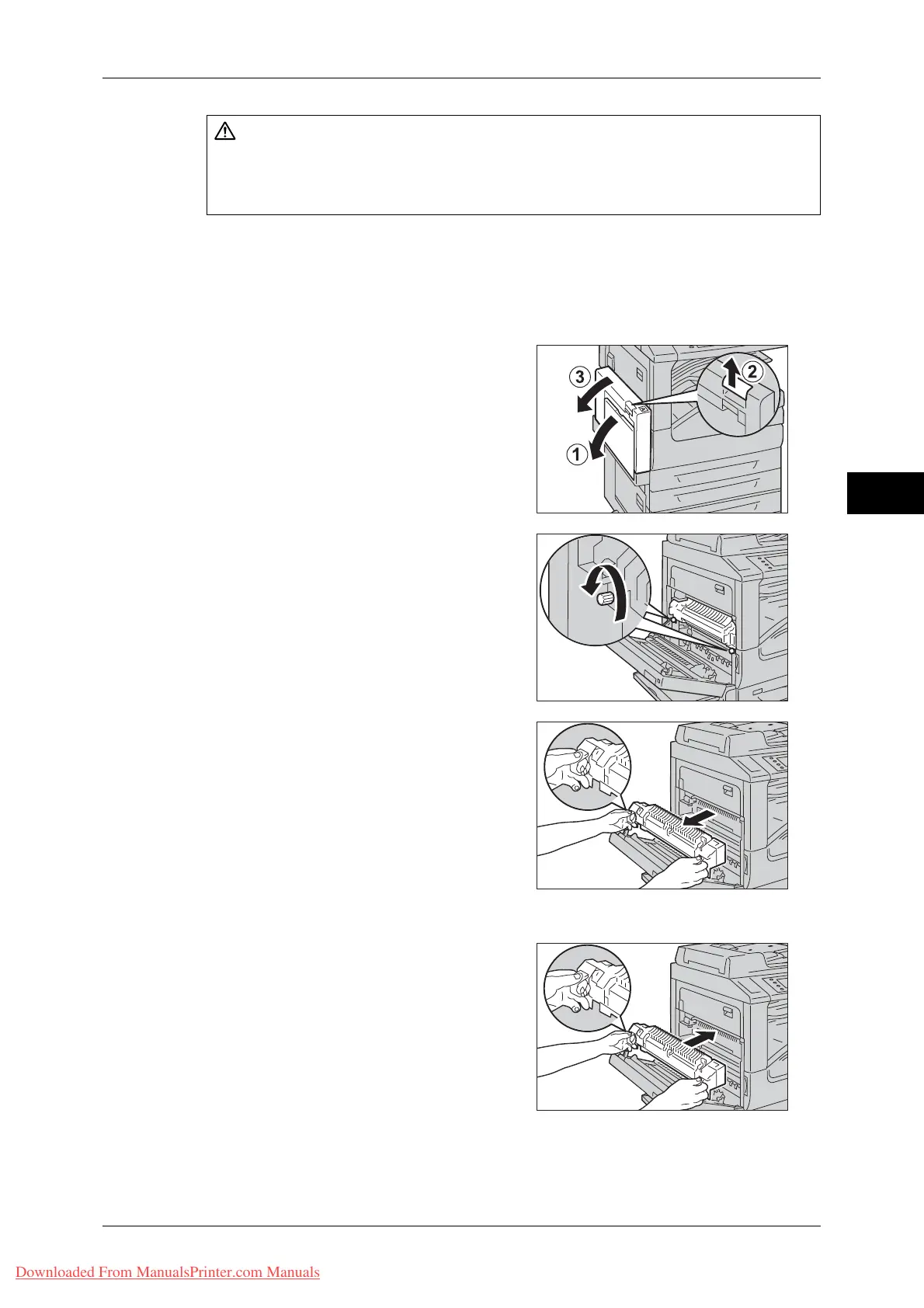

1 Switch off the power, and then switch off the main power.
For information on how to switch off the power and the main power, refer to "2 Product Overview" >
"Power Source" in the User Guide.
2 Wait for 40 minutes for the fusing unit to cool down.
3 Open Tray 5 (c), and then while lifting up
the release lever (
d) gently open the top left
cover (
e).
4 Loosen the screws on both sides of the
fusing unit completely.
5 Hold the fusing unit by the grips on both
sides, and remove the fusing unit from the
machine.
Important • The fusing unit weights approximately
2.5 kg. Be careful not to drop the unit.
6 Take out a new fusing unit from the box.
7 Hold the new fusing unit by the grips on both
sides, and then place the fusing unit onto the
machine.
Important • Hold the fusing unit with both hands so
that you do not drop it.
Fusing Unit Safety
When removing the fusing unit, always switch off first and wait for 40 minutes until it
cools off.
