248 7 Maintenance

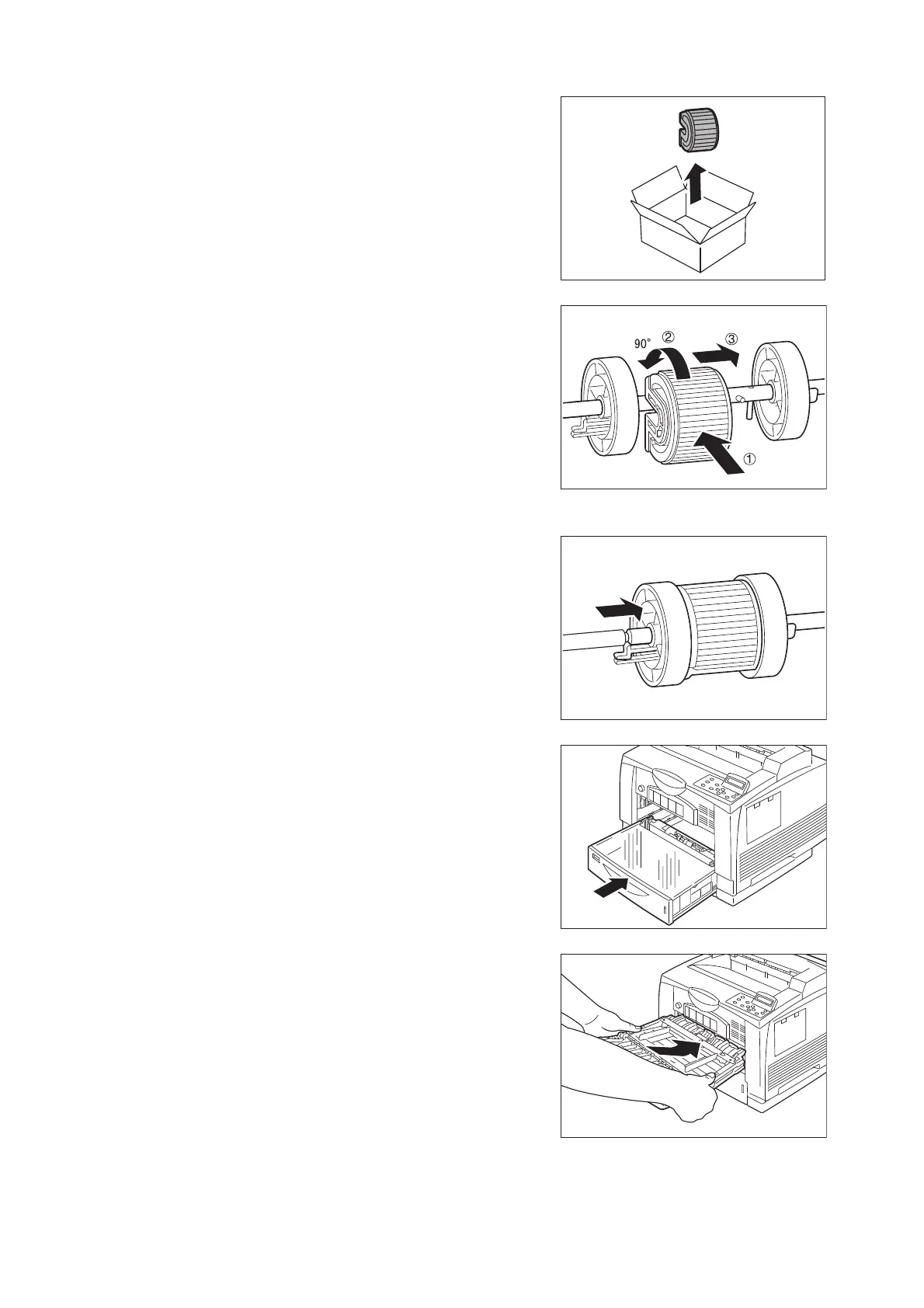

11. Take bypass feed roller out of the box.
12. After cleaning the roller, place it back to the
orignal position. Push the horizonal groove
of the roller onto the shaft in the orientation
parallel to the ground (1). Rotate the roller
90 degrees towards back so that the pin on
the shaft fits into the indentation on the
roller (2), and slide the roller to the right (3).
Note
• One side of the roller is flat while the other is grooved.
When pushing the roller onto the shaft, be careful
about the orientation of the roller.
13. Slide the white part on the left up toward
the roller. Slide it to the right until the left
end hook fits securely into the groove of the
shaft.
14. Place the paper tray back into the printer.
15. Return the paper tray inside the printer.
